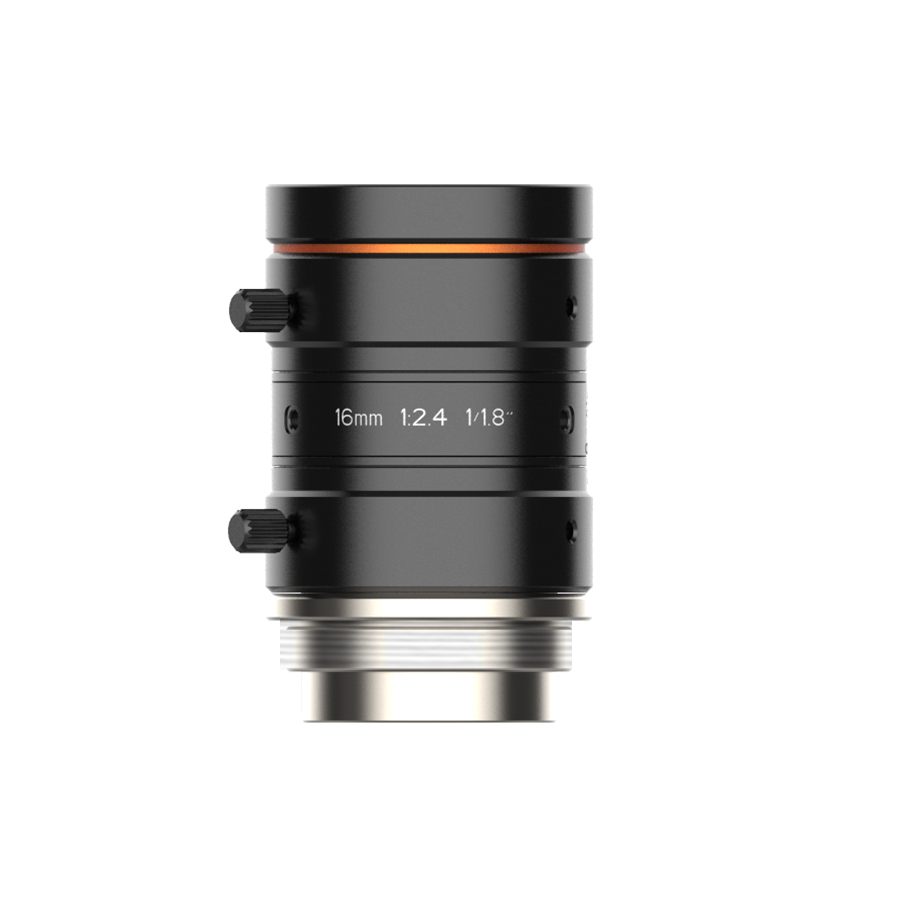

MVL-HF1624M-10MP

HIKROBOT Lens, FA Series, HF

16mm, F2.4 ~ F16, Ø 9mm (1/1.8''), C-Mount

HIKROBOT Lens, FA Series, HF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

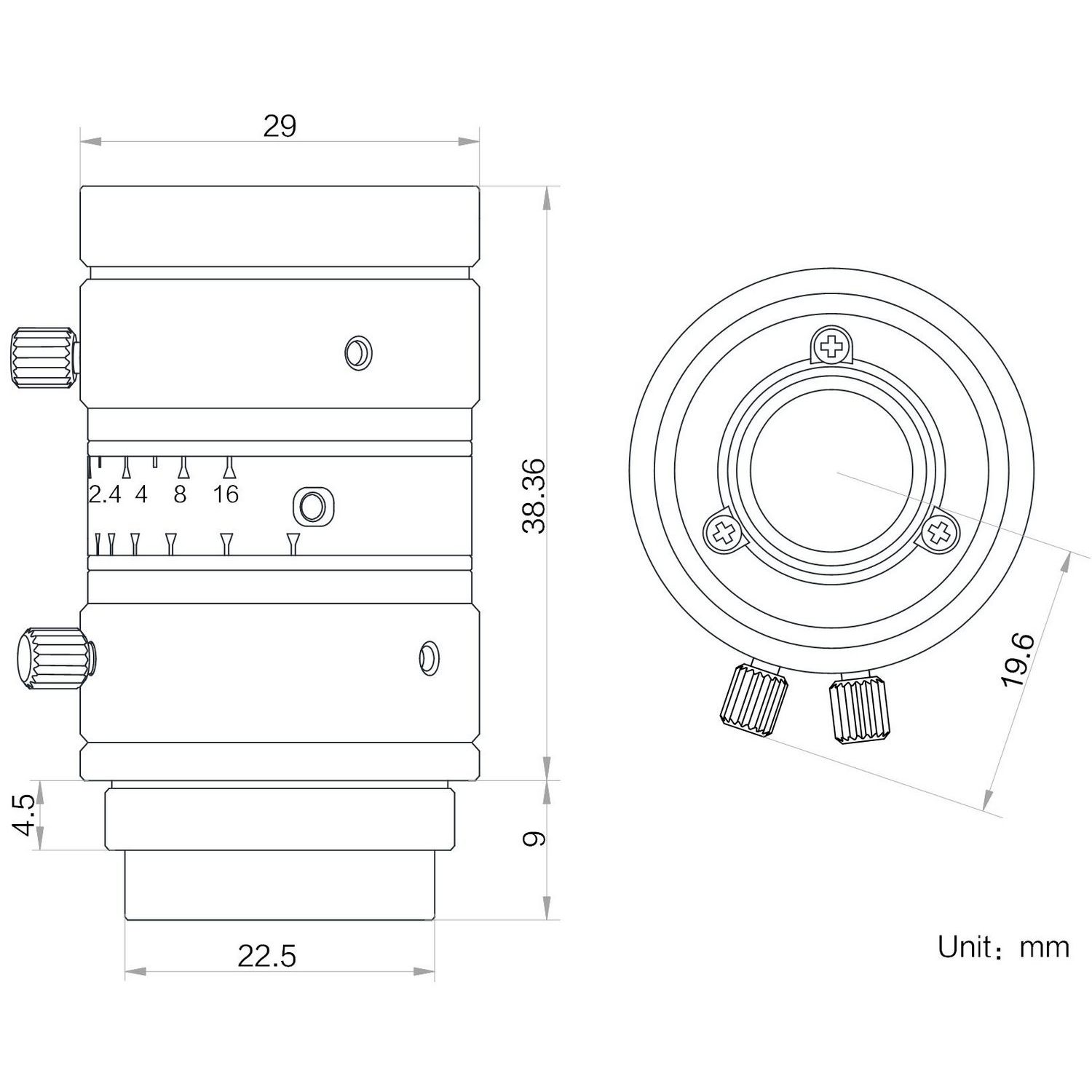

DrawingData Sheet

SKU: MVL-HF1624M-10MP Categories: , Tags: , , ,
Compare
  • Ultra high resolution and consistency of image clarity
  • Bigger aperture, lower distortion and higher relative illumination rate
  • Achromatic optical system design, Better imaging performance with color camera
  • Excellent vibration resistance performance, optical axis shifting within pixel level
  • Good stability at high and low temperature
  • Multilayer and broadband coating design, compatible with visible and near-infrared applications

Model Product Model MVL-HF1624M-10MP
Type 16mm, F2.4, 1/1.8″, 10MP Lens,C-Mount
Performance Focal length 16 mm
F-Number F2.4 ~ F16
Image Size Φ9 mm(1/1.8”)
Distortion -0.02%
Minimum Object Distance 0.1 m
Field of View D(8.96mm):30.17° H(7.38mm):25.07° V(4.92mm):16.92°
Mechanical Iris Control Manual
Focus Control Manual
Filter Thread M27 × 0.5
Mount C-Mount
Flange Back Length 17.526 mm
Dimension Φ29 × 38.36 mm
Weight 70.2 g
Temperature -10 ~ 50°C
General Certification RoHS2.0
