- Ultra high resolution and consistency of image clarity
- Bigger aperture, lower distortion and higher relative illumination rate
- Achromatic optical system design, Better imaging performance with color camera
- Excellent vibration resistance performance, optical axis shifting within pixel level
- Good stability at high and low temperature
- Multilayer and broadband coating design, compatible with visible and near-infrared applications

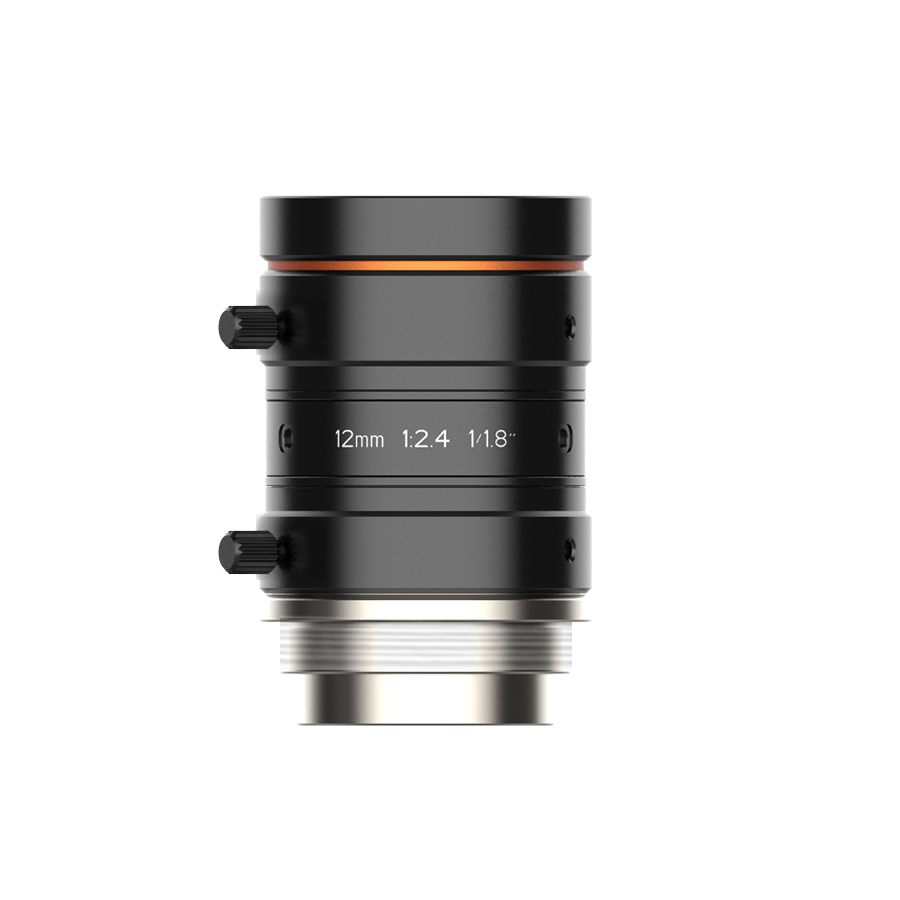

MVL-HF1224M-10MP
HIKROBOT Lens, FA Series, HF
HIKROBOT Lens, FA Series, HF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
Model | Product Model | MVL-HF1224M-10MP |
Type | 12mm, F2.4, 1/1.8″, 10MP Lens,C-Mount | |
Performance | Focal length | 12 mm |
F-Number | F2.4 ~ F16 | |
Image Size | Φ9 mm(1/1.8”) | |
Distortion | 0.15% | |
Minimum Object Distance | 0.1 m | |
Field of View | D(8.96mm):40.2° H(7.38mm):33.6° V(4.92mm):22.9° | |
Mechanical | Iris Control | Manual |
Focus Control | Manual | |
Filter Thread | M27 × 0.5 | |
Mount | C-Mount | |
Flange Back Length | 17.526 mm | |

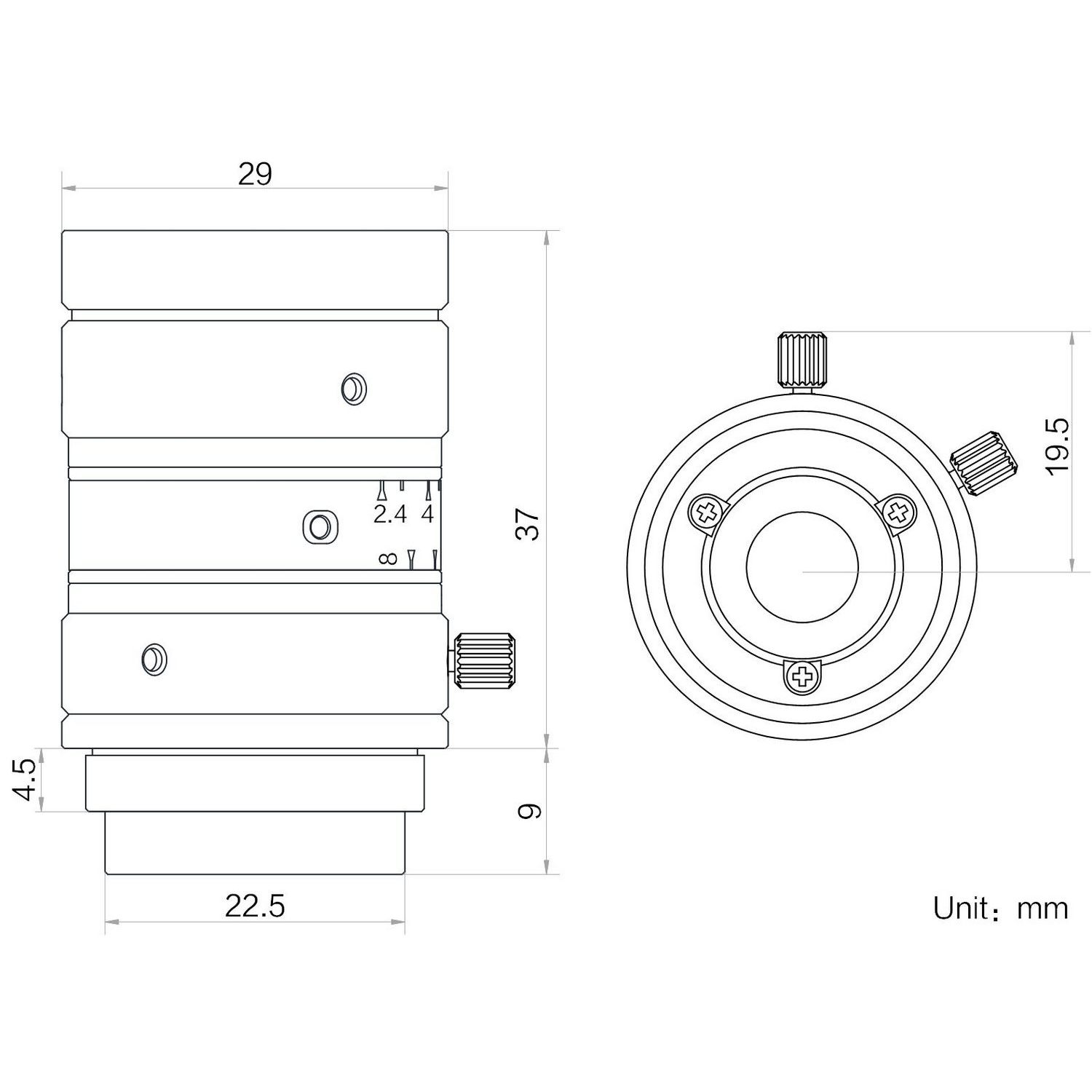

Dimension | Φ29 × 37 mm | |
Weight | 65.9 g | |
Temperature | -10 ~ 50°C | |
General | Certification | RoHS2.0 |
