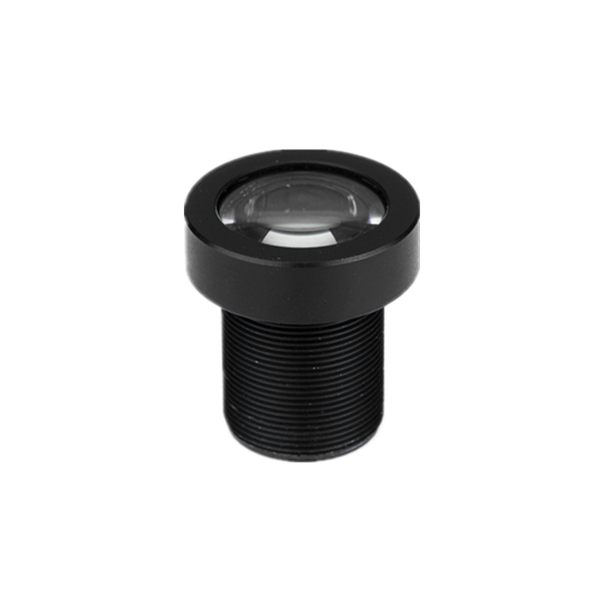

MVL-HF0328-05S

HIKROBOT Lens, M12 Series HF

3.37mm, F2.8, Ø 8mm (1/2''), S-Mount

HIKROBOT Lens, M12 Series HF

The M12 lens product series is aimed at the needs of embedded vision applications. On the premise of ensuring imaging performance, it adopts the all-metal lens barrel & all-glass lens design to improve product stability and is adaptable to strict industrial environments.
Supporting 5Mpix resolution, M12 Lens can provide high-quality imaging effects. It adopts M12 optical interface within a small size and is suitable for mainstream embedded vision application requirements, which is also easier for vision system integration.

Product Downloads:

DrawingData Sheet

SKU: MVL-HF0328-05S Categories: , Tags: , , ,
Compare
  • Optimization design for machine vision
  • High resolution, high consistency of picture definition
  • Low Distortion, high relative illumination
  • S-Mount (M12 * 0.5), easy system integration

Model Product Model MVL-HF0328-05S
Type 3.37mm, F2.8, 1/2″, 5MP Lens, M12-Mount
Performance Focal length 3.37 mm
F-Number F2.8
Image Size Φ8 mm(1/2”)
TV Distortion <1%
Working Distance Range 100 ~ 850 mm
Field of View D(8.0 mm):100°H(6.4 mm):86°V(4.8 mm):70°
Mechanical Mount S-Mount
TTL 23.7 ~ 24.3 mm

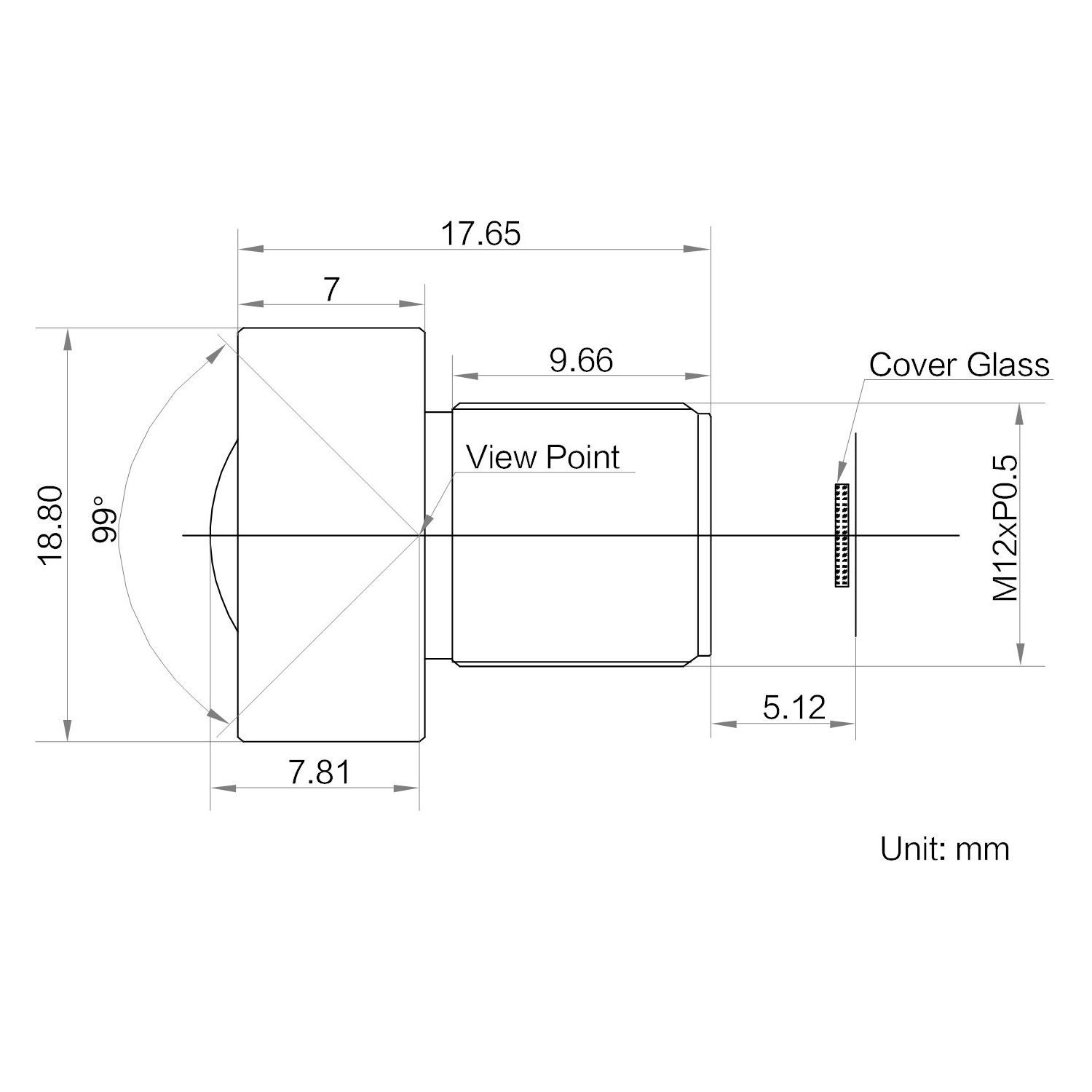

Dimension Φ18.8 mm × 17.65 mm
Temperature -10 ~ 50°C
General Certification RoHS2.0
