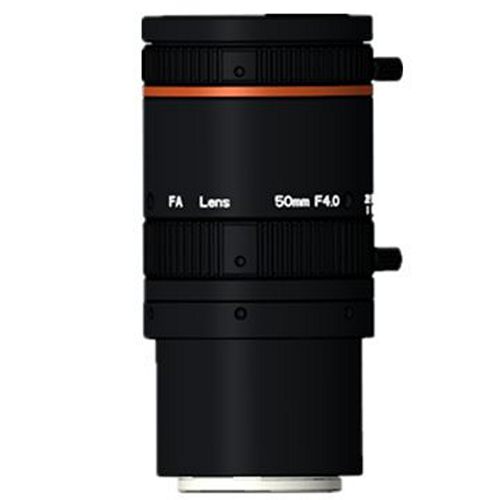

MVL-AF5040M-M42

HIKROBOT Lens, FA Series, AF

50mm, F4 ~ F22, Ø 37mm, M42×P1

HIKROBOT Lens, FA Series, AF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

DrawingData Sheet

SKU: MVL-AF5040M-M42 Categories: , Tags: , , ,
Compare
  • Ultra-high resolution, supporting 3.1μm resolution
  • Excellent consistency of image clarity, with large aperture, low distortion, low chromatic aberration and high relative illumination
  • Maximum image circle Φ37 mm, applicable to APS-C area scan and 4K 7μm line scan cameras

Model Product Model MVL-AF5040M-M42
Type 50mm, F4.0, Image Size φ37mm, Recommended Magnification 0.01~0.33X, M42-Mount
Performance Focal length 50 mm
F-Number F4 ~ F22
Image Size Φ37 mm
Optical Distortion 0.21%
Magnification Range 0.33x ~ 0.01x
Working Distance Range 150 ~ inf mm
Mechanical Iris Control Manual
Focus Control Manual
Filter Thread M52×0.75
Mount M42×P1
Flange Back Length 12 mm

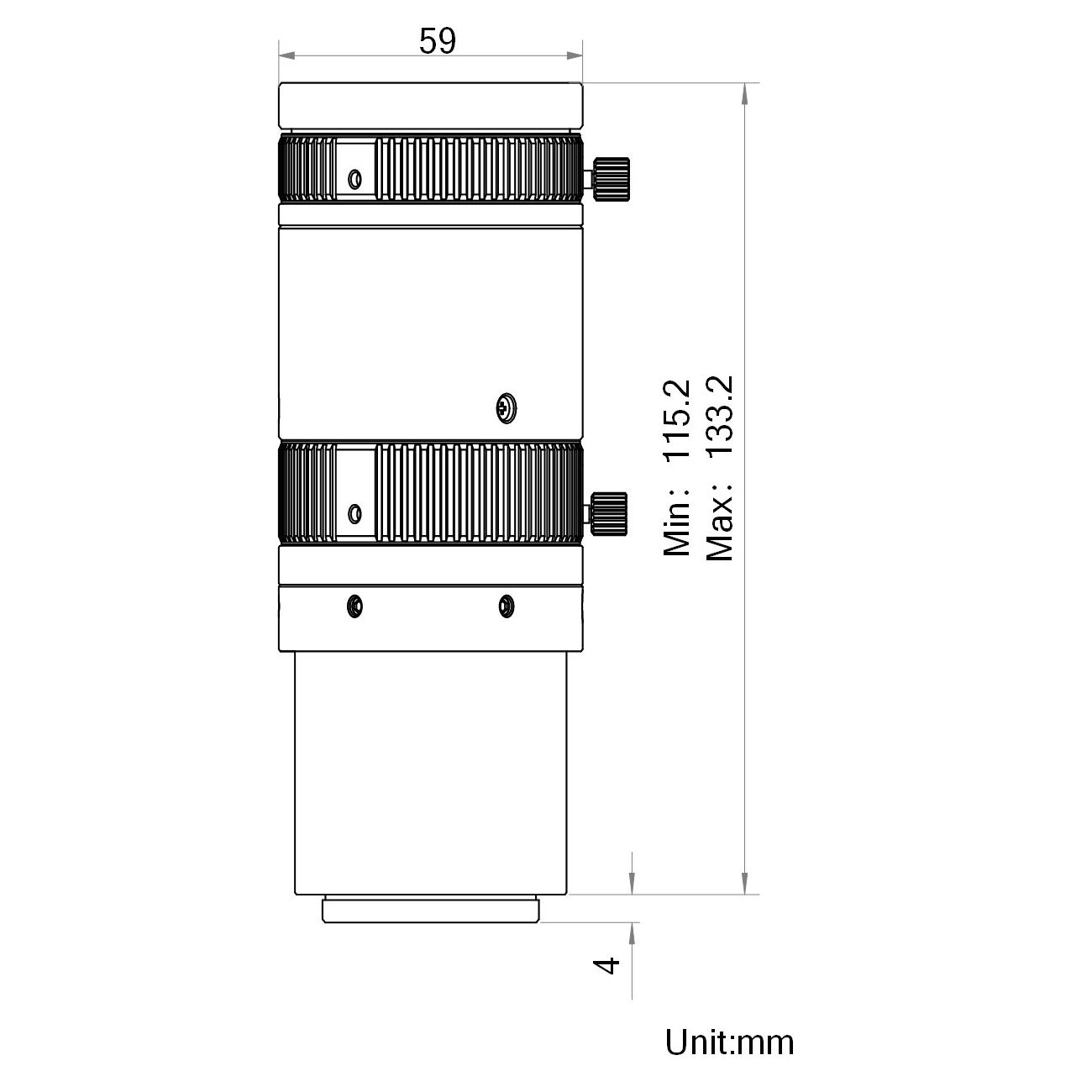

Dimension Φ59 × 133.2 mm
Weight 615 g
Temperature -10 ~ 50℃
General Certification RoHS2.0
