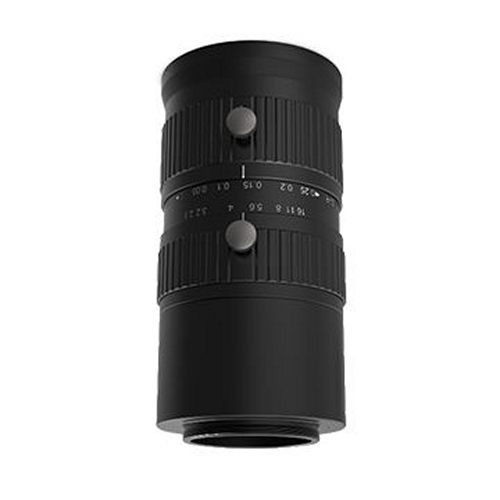

MVL-AF3528M-M42

HIKROBOT Lens, FA Series, AF

35mm, F2.8 ~ F16, Ø 42mm, M42×P1

HIKROBOT Lens, FA Series, AF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

Data SheetDrawing

SKU: MVL-AF3528M-M42 Categories: , Tags: , , ,
Compare
  • Ultra-high resolution and consistency of image clarity
  • Large aperture, low distortion, low chromatic aberration and high relative illumination
  • Maximum image circle Φ42mm, applicable to large format area scan and 4K 7μm line scan cameras

ModelProduct ModelMVL-AF3528M-M42
Type35mm, F2.8, Image Size φ42mm, Recommended Magnification 0.05~0.2X, M42-Mount
PerformanceFocal length35 mm
F-NumberF2.8 ~ F16
Image SizeΦ42 mm
Optical Distortion0.40%
Magnification Range0.2x ~ 0.001x
Working Distance Range163 ~ inf mm
MechanicalIris ControlManual
Focus ControlManual
Filter ThreadM58 × 0.75
MountM42 × P1
Flange Back Length12 mm

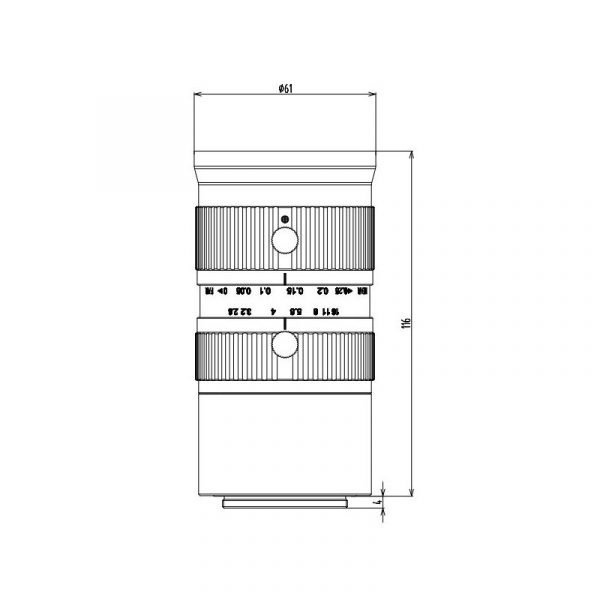

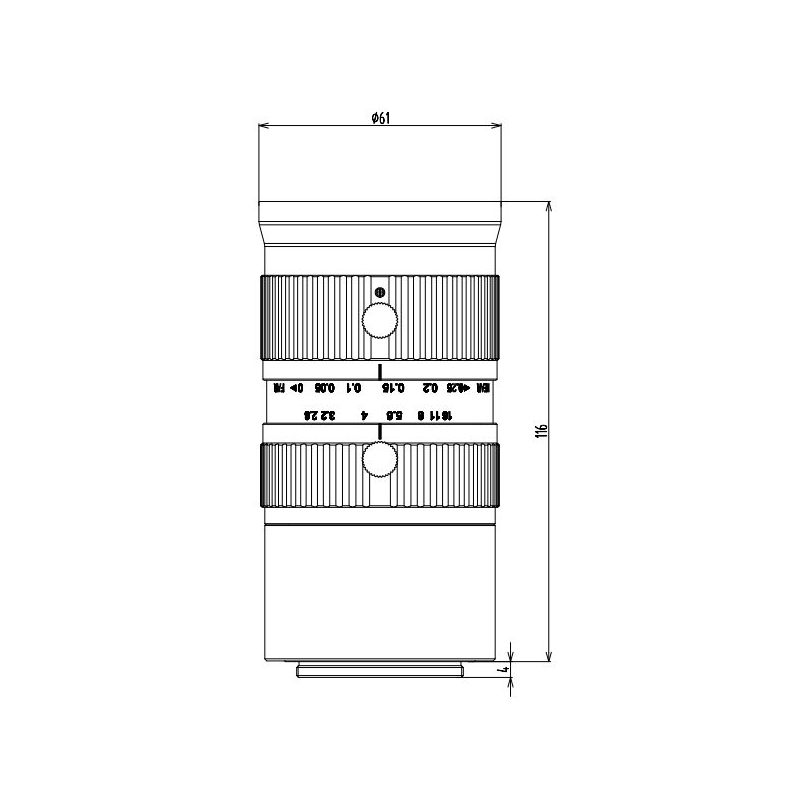

DimensionΦ61 × 116 mm
Weight622 g
Temperature-10 ~ 50°C
GeneralCertificationRoHS2.0
