- Ultra-high resolution and consistency of image clarity
- Low distortion
- Maximum image circle Φ30mm, applicable to APS-C area scan and 4K 7μm line scan cameras

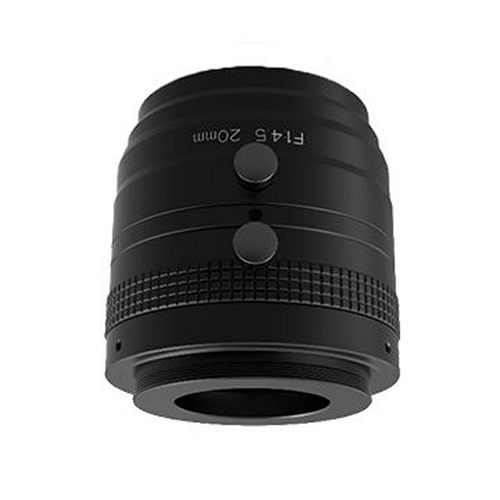

MVL-AF2045M-M42
HIKROBOT Lens, FA Series, AF
HIKROBOT Lens, FA Series, AF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
| Model | Product Model | MVL-AF2045M-M42 |
| Type | 20mm, F4.5, Image Size φ30mm, Recommended Magnification 0.02~0.1X, M42-Mount | |
| Performance | Focal length | 20 mm |
| F-Number | F4.5 ~ C | |
| Image Size | Φ30 mm | |
| Optical Distortion | 0.20% | |
| Magnification Range | 0.1x ~ 0.02x | |
| Working Distance Range | 150 ~ 999 mm | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M43 × 0.75 | |
| Mount | M42 × P1 | |
| Flange Back Length | 12 mm | |

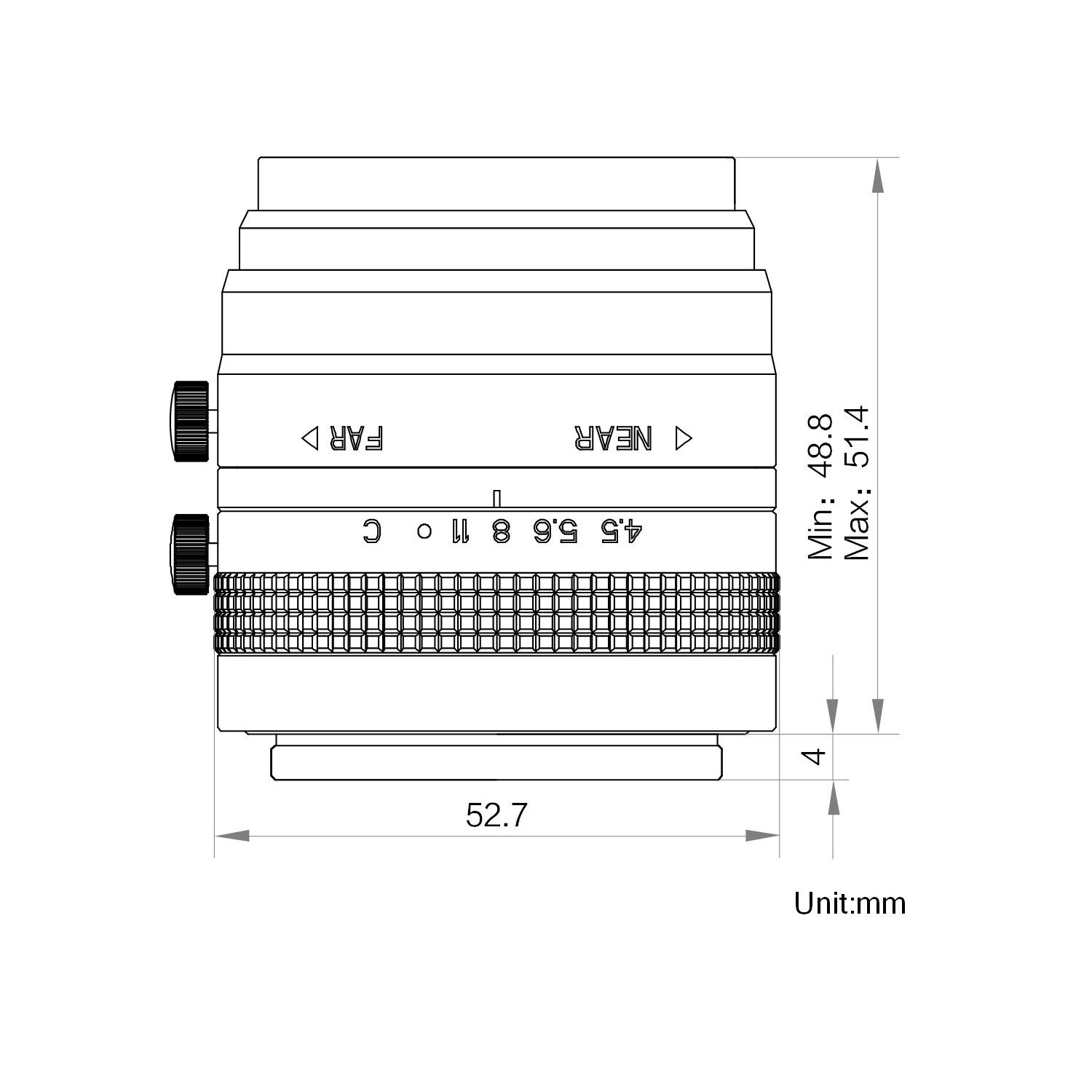

| Dimension | Φ52.7 × 51.4 mm | |
| Weight | 243 g | |
| Temperature | -10 ~ 50°C | |
| General | Certification | RoHS2.0 |
