- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to detect object’s existence, count patterns and spots, etc.
- Multiple IO interfaces for input and output signals.
- Multiple indicators for displaying device status.
- Adopts light source to ensure uniform brightness in the illuminated area.
- Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP, etc.
MV-SC2023XM-16M-WBN

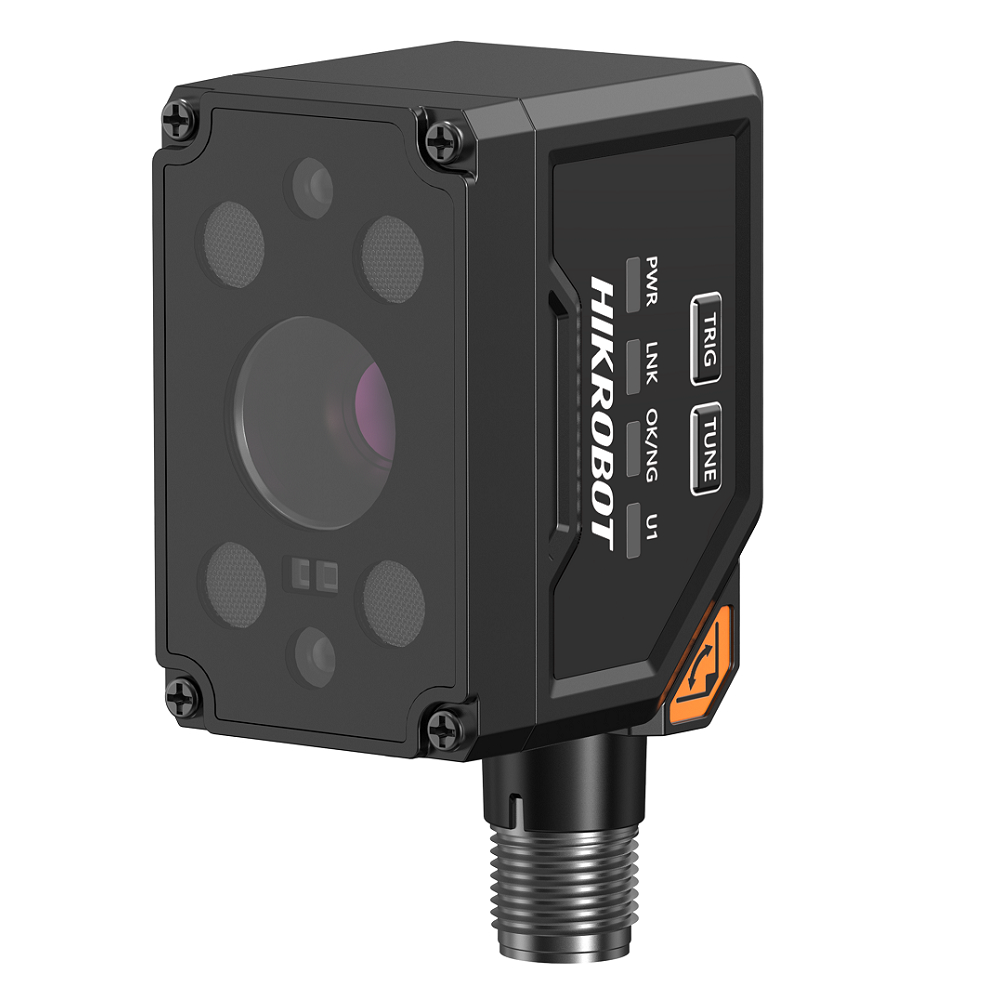

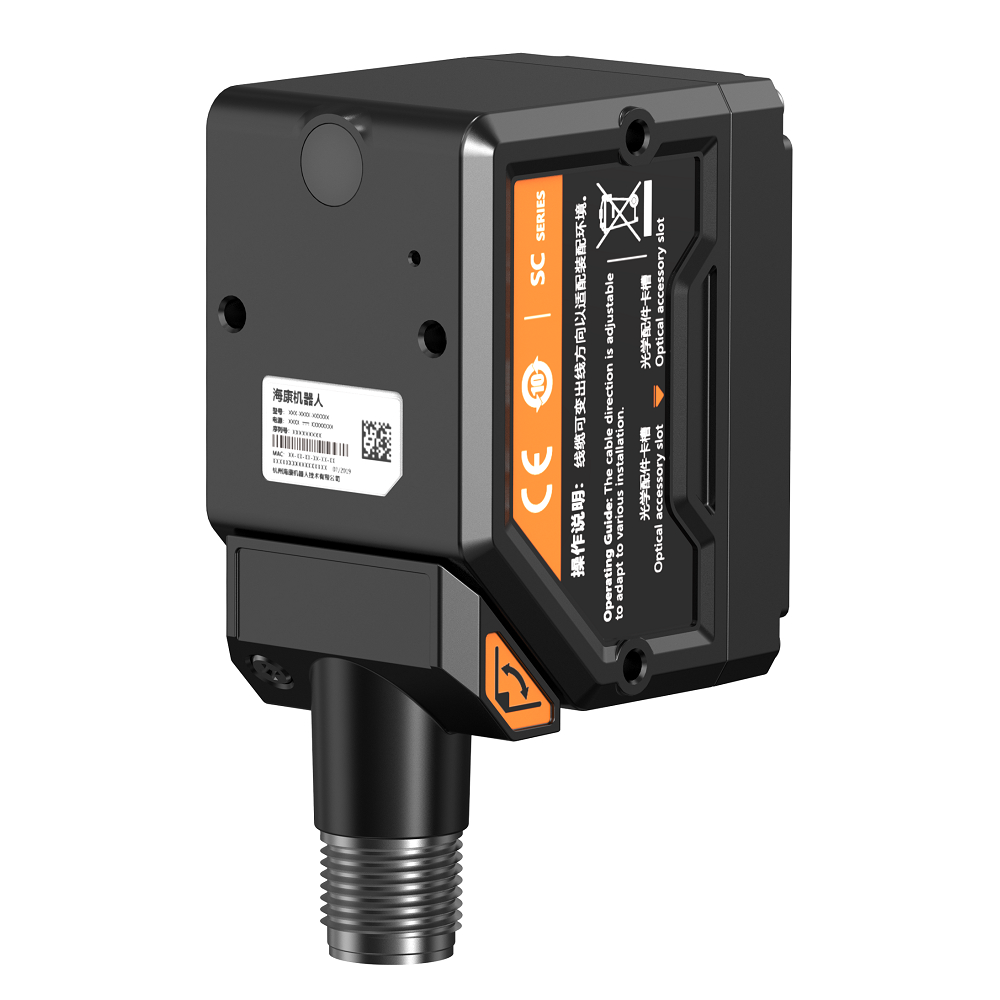

HIKROBOT Smart Camera SC2000X Series
HIKROBOT Smart Camera SC2000X Series
The SC2000 vision sensor integrates full functions of a vision system: lighting, acquisition, processing, and communication in minimal fuselage. Bring new choices for Y/N, P/N verifications with excellent performance in error-proofing detection scenarios.
Inspection solutions such as presence/absence, U/D, Positioning, counting, etc. are often used for error-proof inspection. More visual inspection tools can provide the optimal solution for parts of different shapes on the production line, making visual application easier.
Red, blue, white sources provide better imaging for products of different colors.
Visible light polarization mirror to filter glare interference.
SV/VT series display products provide visual real-time detection interface and statistics.
The camera is equipped with 0.6m cable, more convenient to use on site.
The SCMVS software equipped for SC2000 debugging shares a well-designed interface and useful vison tools, requiring less professionalism for engineers. It can also quickly filter suitable tools in the visualized display interface, and help to deploy real-time applications on site.
Product Downloads:
| Model | Product Model | MV-SC2023XM-16M-WBN |
| Type | SC2000X series vision sensor，2.4MP，Mono，16mm focal length | |
| Tool | Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, diameter measurement, line angle Existence: Anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, line existence Count: Spot count, edge count, contour count, pattern count Recognition: Category recognition, code recognition, OCR Logic: Calculator, if module, logic judge, condition judge, string comparison, combination judge, format output Defect detection: Anomaly detection Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture |
| Solution capacity | Supports solution importing and exporting, up to 16 solutions and 40 modules can be stored. | |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV | |
| Performance | Sensor type | CMOS, global shutter |
| Pixel size | 2.2 μm × 2.2 μm | |
| Sensor size | 1/3.52″ | |
| Resolution | 1920 × 1280 | |
| Max. frame rate | 75 fps | |
| Gain | 0 dB to 48 dB | |
| Exposure time | 36 μs to 100 ms | |
| Pixel format | Mono 8 | |
| Mono/color | Mono | |
| Electrical feature | Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including isolated input (Line 0/1) × 2, isolated output (Line 2/3) × 2, RS-232 × 1 Supports device triggering via pressing side button. |
|
| Power supply | 24 VDC | |
| Power consumption | Avg.: 5 W @ 24 VDC (light source enabled) Max.: 12 W @ 24 VDC (light source enabled) |
|
| Mechanical | Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 16 mm | |
| Lens cap | Transparent lens cap by default. Half-polarized and fully-polarized caps are optional. | |
| Light source | White light by default. Red, blue, IR, UV, and two-color (red/blue) lights are optional. | |
| Aiming system | 2 green LED lights | |
| Indicator | Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1) | |

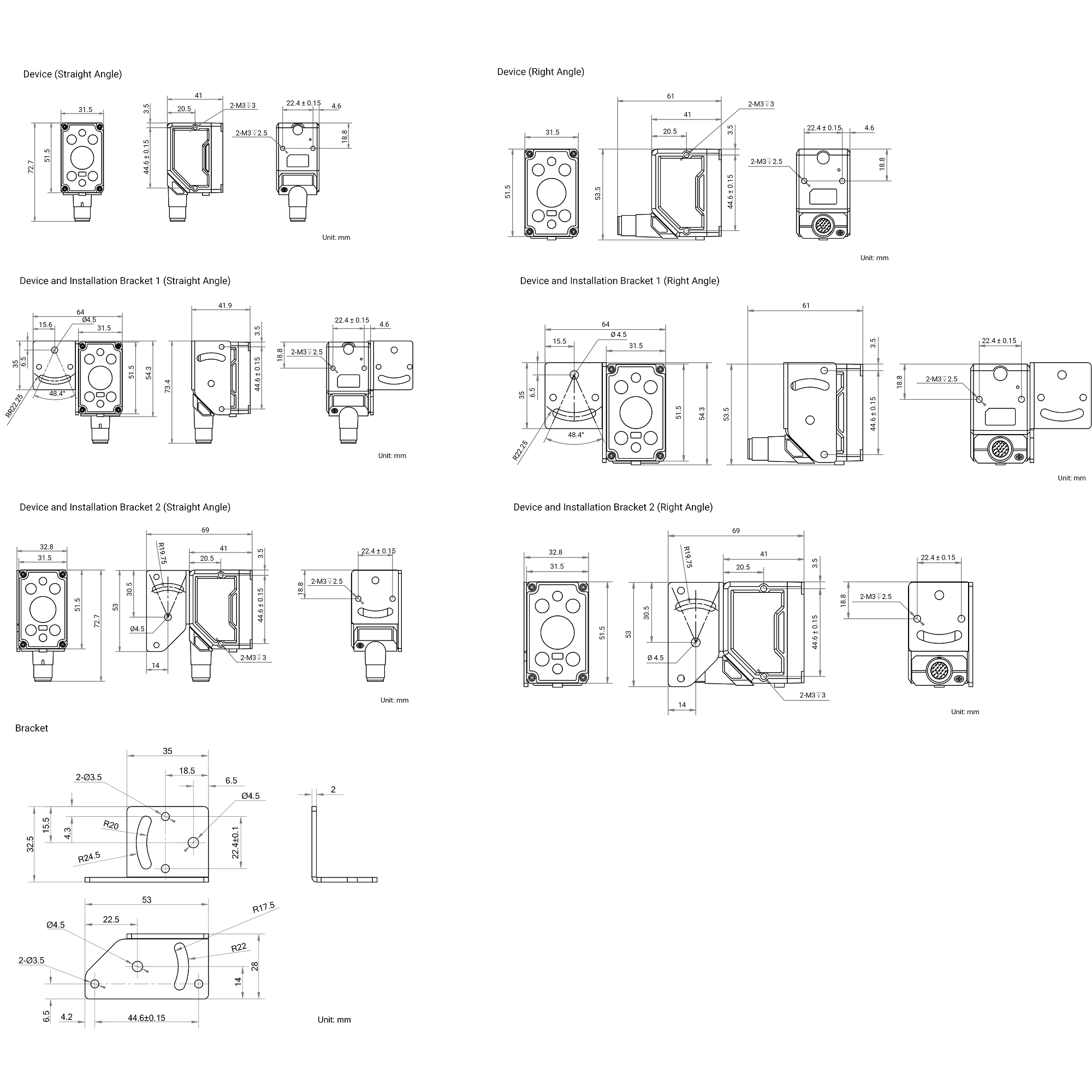

| Dimension | Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9″ × 1.2″ × 1.6″) Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0″ × 1.2″ × 2.4″) |
|
| Weight | 118 g (0.3 lb.) | |
| Ingress protection | IP65 | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|
| Humidity | 20% RH to 95% RH (no condensation) | |
| Vibration resistance | Meets standard IEC 60068-2-6:2007. Bare device withstands 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
|
| Shock resistance | Meets standard IEC 60068-2-27:2008. Bare device withstands 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
|
| General | Client software | SCMVS |
| Certification | CE, KC |
