- Adopts code recognition technology.
- Supports acquisition and integration of data and images.
- Supports local data storage, uploading, and tracking.
- Adopts integrated structure to facilitate installation.
- Centralized light with high luminescence efficiency.
- Long service life time, and stable performance.
- Provides real-time and effective data for logistics related enterprises.
MV-PD010003-12M-16C

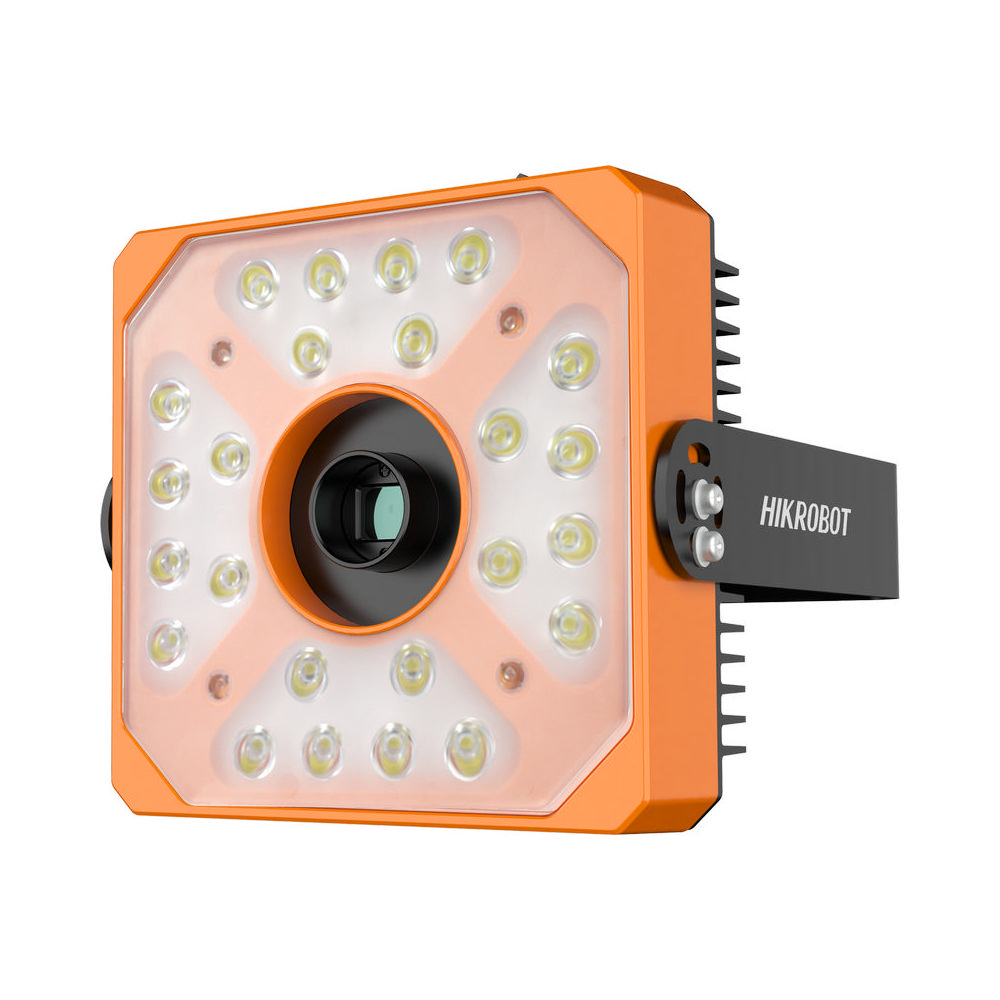

HIKROBOT Logistics Code Reader
HIKROBOT Logistics Code Reader
Serves as the core component of a code reading device, the Logistic code reader is equipped with integrated design, integrating image acquisition, data processing, and result output functions. With its convenient usage, excellent performance, and rich supporting functions, it can be widely used in various code reading application scenarios.
The logistic code reader kit supports secondary development of SDK interfaces, which can be directly called to obtain result data. The solution can be paired with vision controller to reduce the performance requirements of supporting devices which leads to a great competitiveness.
Logistic code reader with 6MP / 12MP resolution image sensors, paired with 24 particle LED light source, built-in embedded high-performance processor, integrating image acquisition, data processing, and result output functions, which improves the timeliness of image data transmission and processing.
| Model | Product Model | MV-PD010003-12M-16C |
| Type | 12MP Logisitc Code Reading Set | |
| Performance | Symbologies | 1D codes: Code 39, Code 93, Code 128, Codabar, EAN 2D codes: QR Code, Data Matrix |
| Focal length | 16 mm | |
| Best working distance | 1550 mm | |
| Field of view (range) | 730 mm × 550 mm @10 mil | |
| Depth of field | 650 mm | |
| Resolution | 4024 × 3036 | |
| Max. frame rate | 9.6 fps @4024 × 3036 | |
| Aperture | F2.8 to F16 | |
| Center illuminance | 9000 lux @1000 mm | |
| Uniformity | 0.56 | |
| Luminous flux | 5900 lm | |
| Light source wavelength | 420 nm to 730 nm | |
| Color temperature | 6500 K | |
| Mono/color | Mono | |
| Pixel format | Mono 8 | |
| Electrical feature | Data interface | Gigabit Ethernet |
| Digital I/O | 6-pin connecting terminal provides power and I/O, including opto-isolated input × 1 (Line 0), and bi-directional non-isolated I/O × 1 (Line 2) | |
| Power supply | 24 VDC | |
| Max. power consumption | 44 W | |

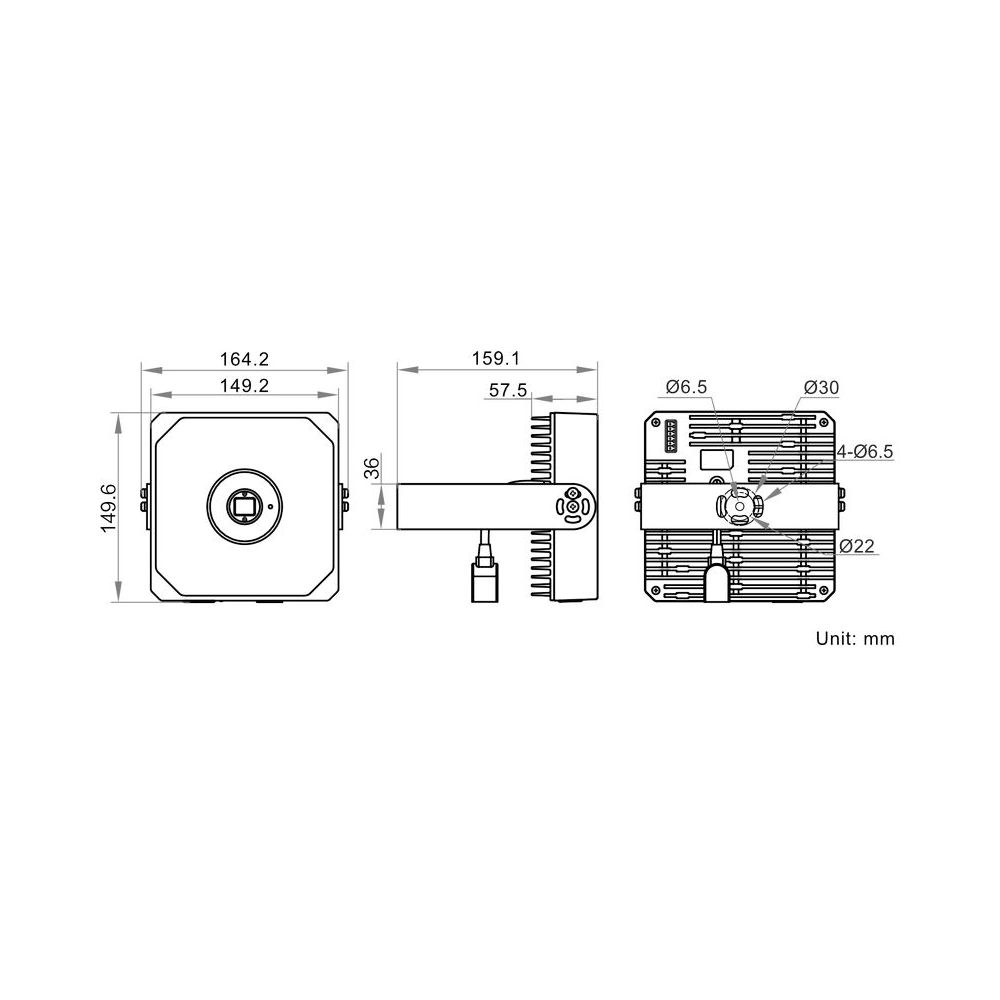

| Mechanical | Dimension (without lens) | 164.2 mm × 149.6 mm × 159.1 mm (6.5″ × 5.9″ × 6.3″) |
| Weight (without lens) | Approx. 1500 g (3.3 lb.) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS, Code Platform |
| Operating system | 32/64-bit Windows XP/7/10 | |
| Certification | CE, KC |
