HIKROBOT Light Source, Ring Type

Ring, 6000 ~ 7000K, Outer: Ø 160*18, Bore: Ø 116, Area Ø 146, Shadowless, LED Rows: 1, 17.4W, White

HIKROBOT Light Source, Ring Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

  • High uniformity illumination.
  • Various sizes of outer diameter for selection.

ModelProduct ModelMV-LRSS-H-160-W
Color temperature6000 ~ 7000K
Best working distance30~80 mm
Electrical featureConnector typeSMR-03V-B
Power consumption17.4 W
MechanicalLED rows1
Cable length1 m

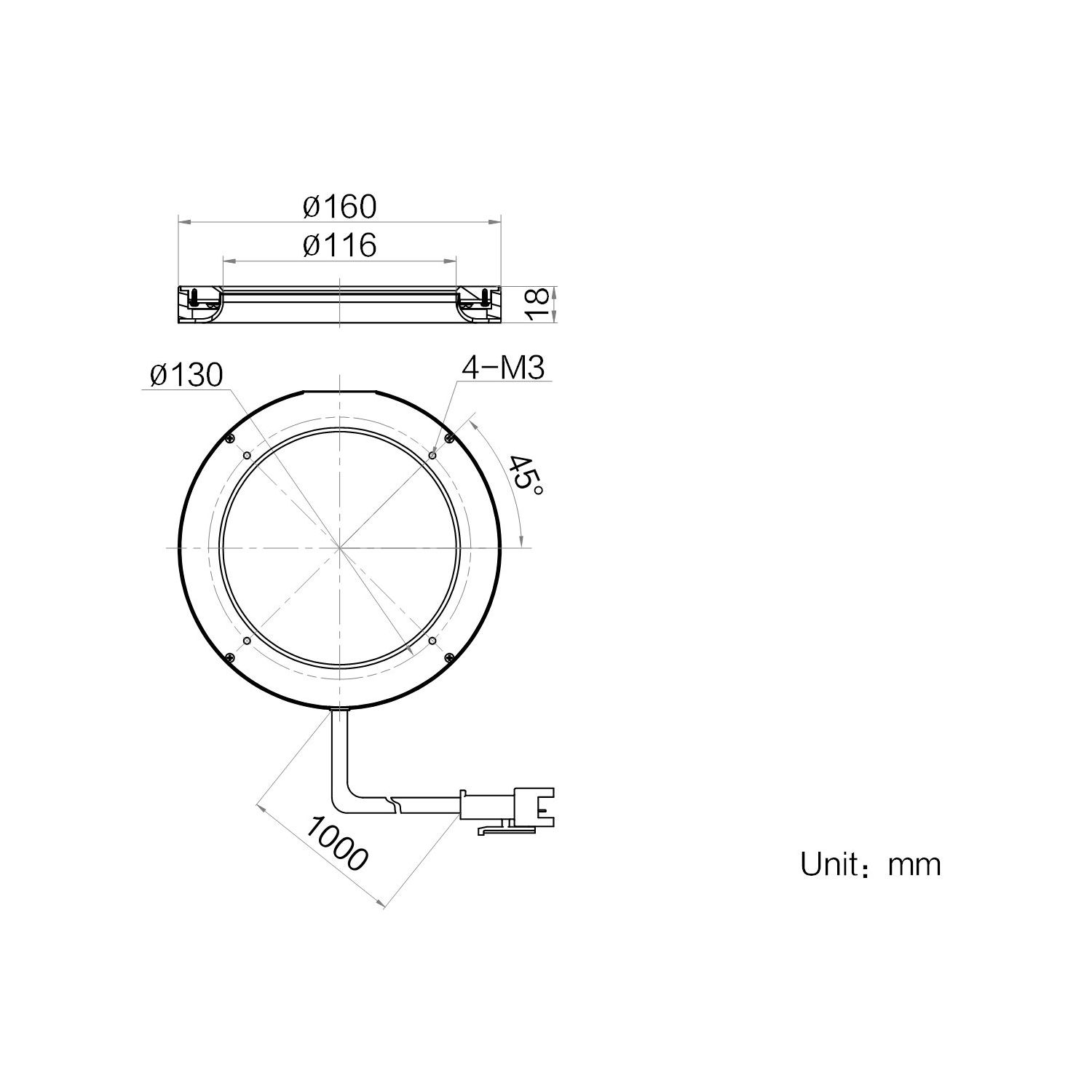

Outer dimensionsΦ160 mm × 18 mm
Bore dimensionsΦ116 mm
Emitting area lengthΦ146 mm
Weight298 g
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity20% to 90%RH, non-condensing
Diffuse plate includedPMMA
