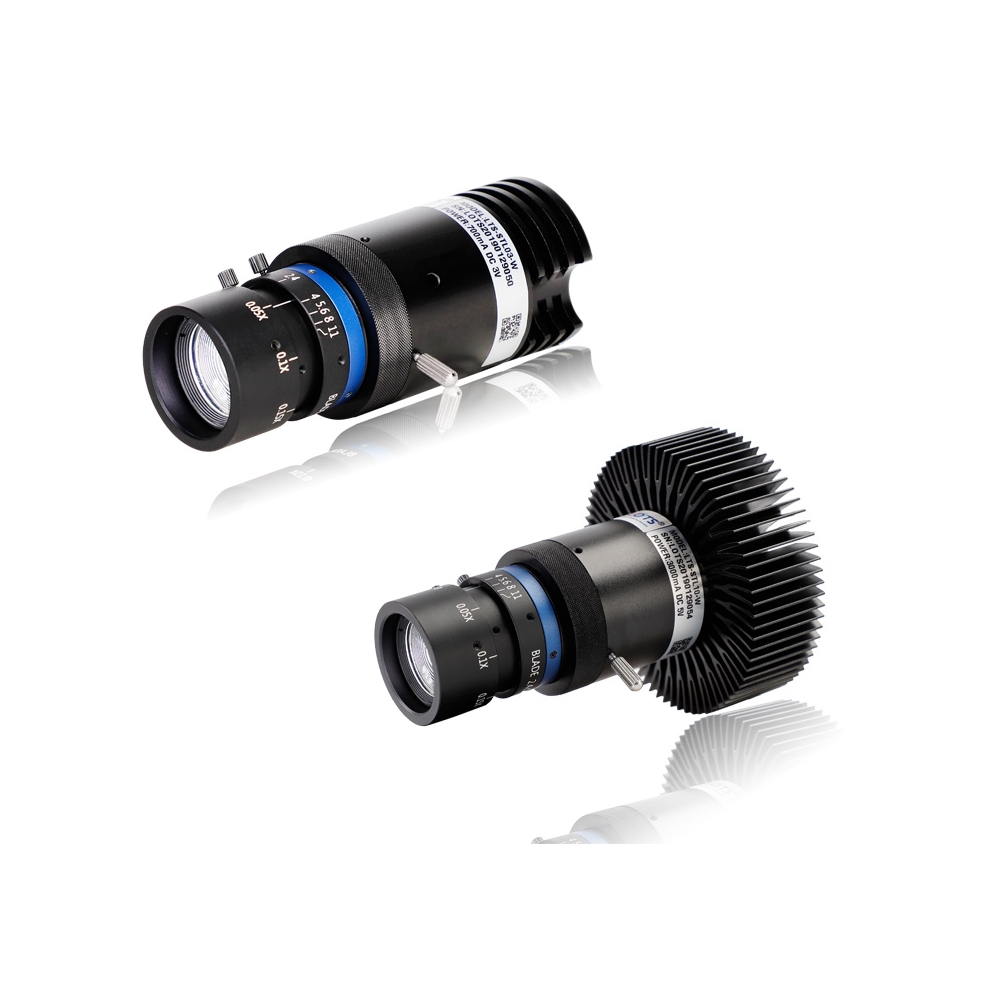

LTS-STL03-B

Structured light Industrial Machine Lighting

L82 x Out dia. φ42 mm, 1000mA, 3 W, BLUE

Structured light Industrial Machine Lighting

Equipped with 2/3 " C-mount lens, it can replace laser positioning and adapt to mechanical calibration, 3d reconstruction analysis and component size measurement.

Features:
  • Can replace the laser positioning, to get clear edge, uniformity luminance, exquisite line.
  • Can match all 2/3” sensor C mount lenses.
  • Adjustable focus, no need to add adapter ring.
  • Pattern customized.
SKU: LTS-STL03-B Categories: ,
Compare
Applications:
  • Three-dimensional reconstruction and analyze.
  • Mechanical calibration.
  • Visualization and mapping.
  • Electronic components dimension measurement.
Illumination property diagram (LTS-STL03/05/10-W model) & Applications:
Grid Chip Customization Instructions:
Lens and light spot dimensions:

Coding rules:

(Use the color circles below to get to the specific variant of the products)

Model Color Dimension Current Power
LTS-STL03-R/BGW / L82 x Out dia. φ42(mm) 1000mA 3W
LTS-STL05-W L82 x Out dia. φ42(mm) 1500mA 5W
LTS-STL10-W L86.5 x Out dia. φ42(mm) 2500mA 10W
*UV & IR light can be customized as required.
