MV-LRDS-H-80-15-W

HIKROBOT Light Source, Ring Type

5.1W, 6000 ~ 7500K, Angle 15°, Area Ø 62, Bore: Ø 40, LED Rows: 2, Outer: Ø 80, Ring, White

HIKROBOT Light Source, Ring Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Compare
  • High density LED array design.
  • Various outer diameter sizes and irradiation angles are available for selection.
  • Compact structure design, good heat dissipation design.
  • Provide diffuse plate included, improve lighting uniformity.

Model Product Model MV-LRDS-H-80-15-W
Type MV-LRDS-H-80-15-W
Performance Color White
Best working distance 20~30 mm
Irradiation angle 15°
Color temperature 6000 ~ 7500K
Electrical feature Power consumption 5.1 W
Input voltage 24 VDC
Connector type SMR-03V-B

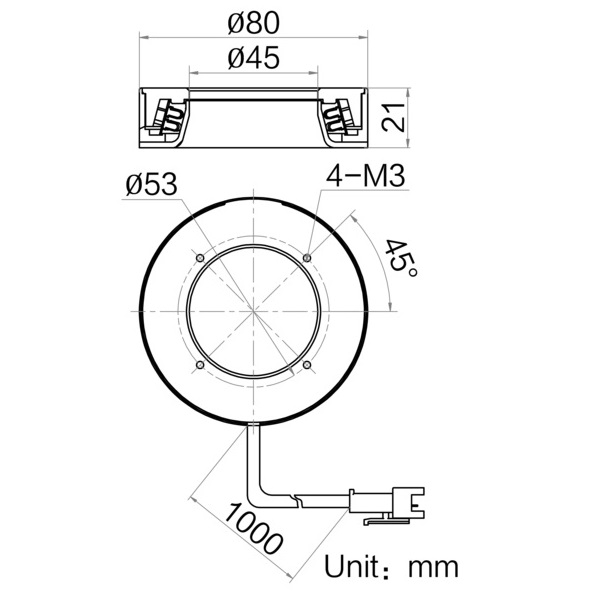

Mechanical Dimension Φ80 mm × 21 mm
Outer dimensions Φ80 mm
Bore dimensions Φ45 mm
Emitting area length Φ62 mm
LED rows 2
Weight 172 g
Cable length 1 m
Temperature Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity 20% to 90%RH, non-condensing
Diffuse plate included PMMA
