MV-LRDS-H-105-30-W

HIKROBOT Light Source, Ring Type

10.6W, 6000 ~ 7500K, Angle 30°, Area Ø 91, Bore: Ø 65, LED Rows: 3, Outer: Ø 105, Ring, White

HIKROBOT Light Source, Ring Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Compare
  • High density LED array design.
  • Various outer diameter sizes and irradiation angles are available for selection.
  • Compact structure design, good heat dissipation design.
  • Provide diffuse plate included, improve lighting uniformity.

ModelProduct ModelMV-LRDS-H-105-30-W
TypeMV-LRDS-H-105-30-W
PerformanceColorWhite
Best working distance20~40 mm
Irradiation angle30°
Color temperature6000 ~ 7500K
Electrical featurePower consumption10.6 W
Input voltage24 VDC
Connector typeSMR-03V-B

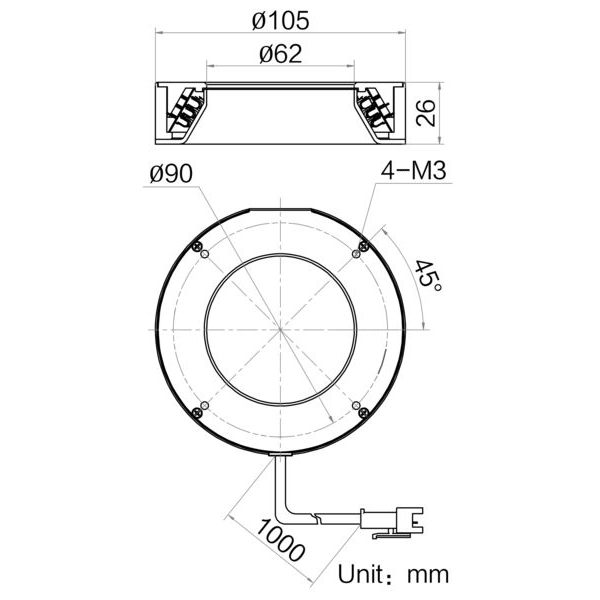

MechanicalDimensionΦ105 mm × 26 mm
Outer dimensionsΦ105 mm
Bore dimensionsΦ62 mm
Emitting area lengthΦ91 mm
LED rows3
Weight241.7 g
Cable length1 m
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity20% to 90%RH, non-condensing
Diffuse plate includedPMMA
