MV-LCDS-H-60-60-W

HIKROBOT Light Source, Coaxial Type

9.6W, 6000 ~ 7000K, 89x67.3x66mm, Area 60x60mm, Coaxial, White

HIKROBOT Light Source, Coaxial Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

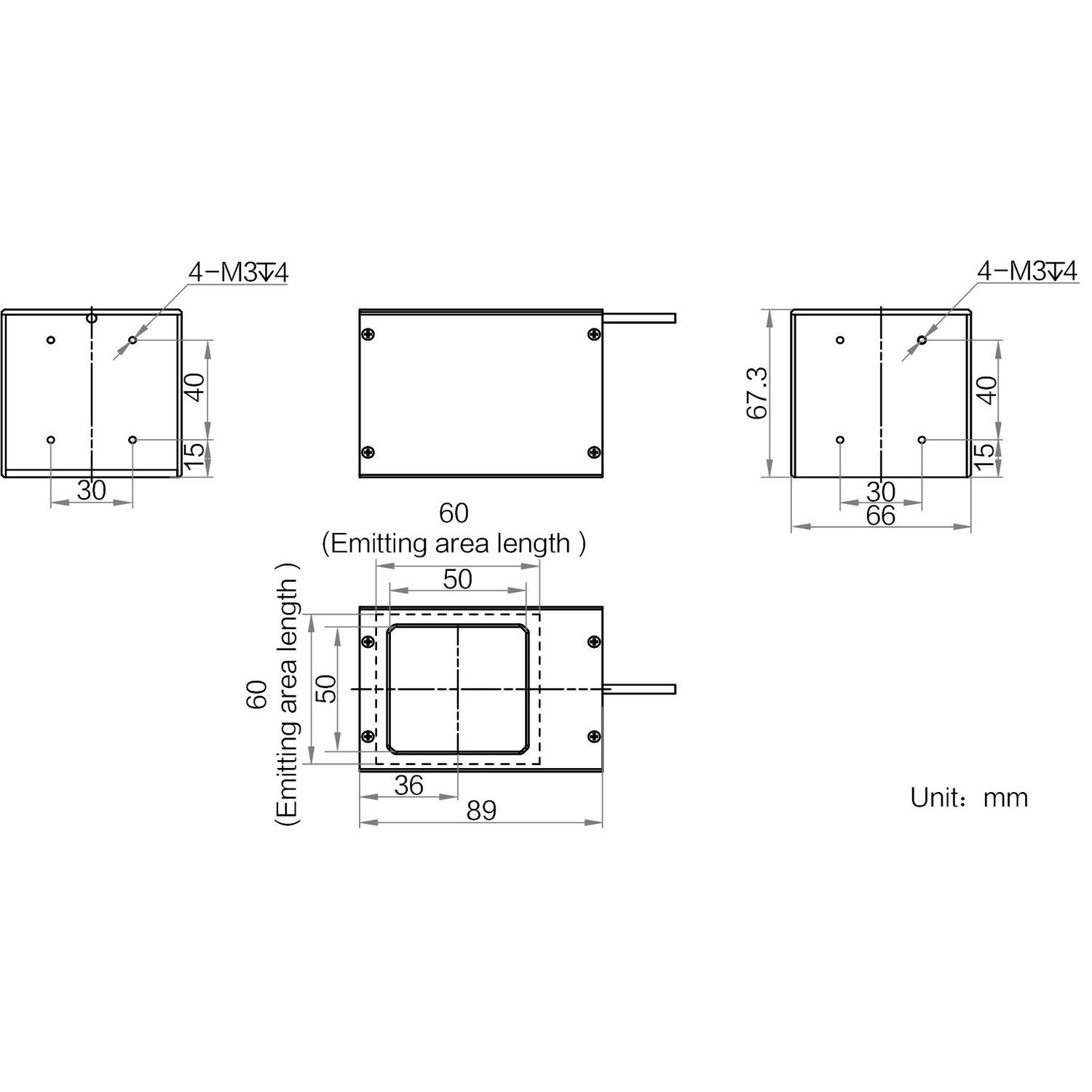

Data SheetDrawing

Compare
  • Special spectroscope design, improve lighting efficiency.
  • Efficient heat dissipation, extended service life.

ModelProduct ModelMV-LCDS-H-60-60-W
TypeCoaxial lighting,60*60,white color
PerformanceColorWhite
Color temperature6000 ~ 7000K
Wavelength/
Electrical featurePower consumption9.6 W
Connector typeSMR-03V-B
MechanicalDimension89 mm × 67.3 mm × 66 mm
Emitting area dimensions60 mm × 60 mm
Weight320 g
Cable length1 m
Cooling modeNaturual cooling
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity20% to 90%RH, non-condensing
Diffuse plate includedIncluded
