| Model | Model | MV-ID813M-05S-WBN-NR-R |
| Name of | 130W resolution, 5mm focal length, white light, SR, serial port, static cable | |
| Performance | Barcode Category | Code 39, Code 93, Code 128 (including GS1-128), ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCE QR Code (including GS1-QR), Data Matrix (including GS1-DM), Micro QR, AZTEC, Han Xin Stacked code: PDF417 |
| Barcode minimum accuracy | Number of yards: 2 mil 2D code: 5 mil |
|
| Maximum processing frame rate | 60 FPS | |
| Maximum read speed | 20 codes per second | |
| Like the size. | 2.7 μm x 2.7 μm | |
| Target size | 1/4″ | |
| Resolution | 1280 × 1024 | |
| depth of field | Code39 (5 mil) 45 mm to 160 mm Code128 (3 mil): 50 mm to 130 mm Code128 (10 mil): 50 mm to 235 mm Data Matrix (5 mil): 55 mm to 100 mm QR Code (10mil) 45 mm to 165 mm QR Code (20mil): 45 mm to 225 mm |
|
| Exposure time | 60 us to 7000 us | |
| Gain | 1 dB to 15 dB | |
| Black and White/Color | Black and White | |
| Communication protocol | SmartSDK, USB, Serial | |
| Electrical characteristics | Data interface | RS-232 |
| Number of I/O | 1 non-isolated input (pin 1 input), 1 non-isolated output (pin 3 output), 1 configurable input and output (pipe foot 2 input/output), 1 RS-232 Supports triggering devices via top button |
|
| Power supply | 12 to 24 VDC | |
| Maximum power consumption | 2.5 W@12 VDC | |
| Structure | focal length | 4.9 mm |
| Camera interface | M10 – Mount | |
| Camera cover | Transparent camera cover | |
| Ambient light | 0 to 100000 lux | |
| Light source | Warm white LED | |
| Target | Cross laser aiming | |
| Status tips | LED indicator, buzzer | |

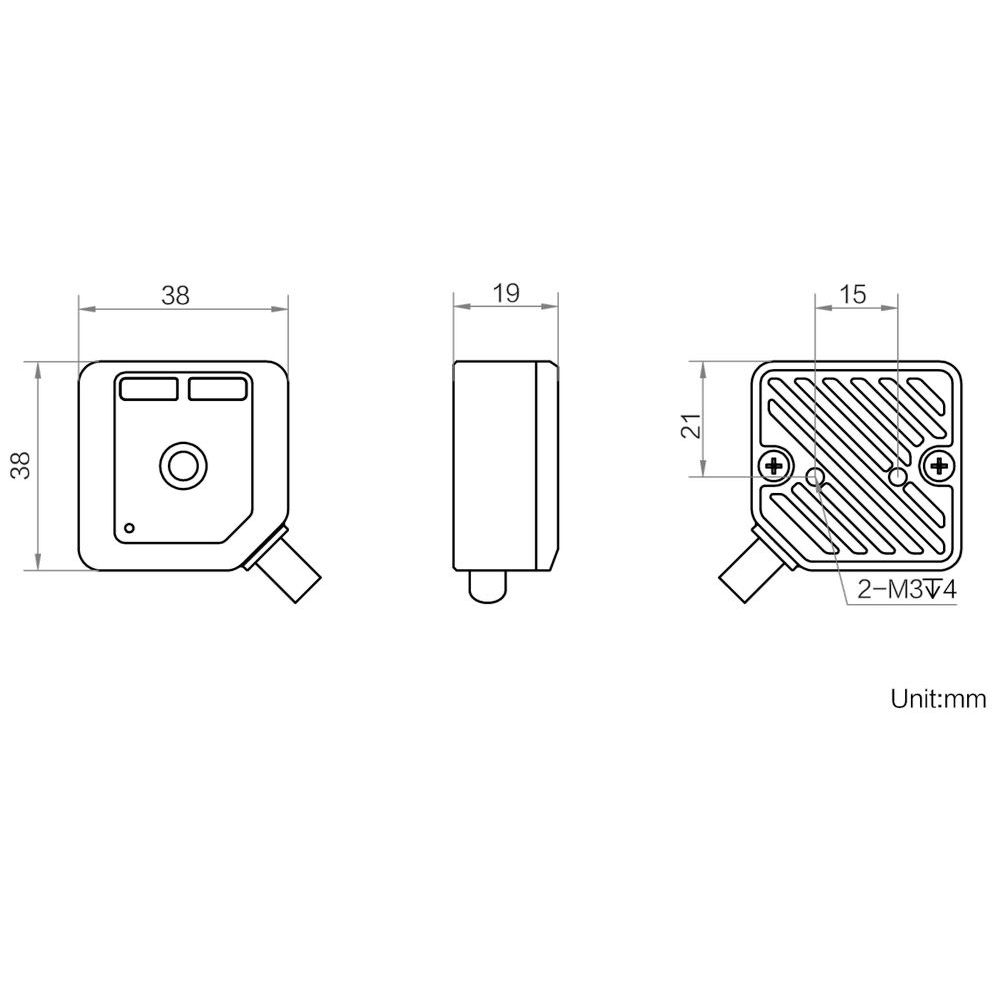

| External dimensions | 38 mm × 38 mm × 19 mm | |
| Weight | Approximately 40 g (without cable) | |
| IP protection level | IP54 | |
| temperature | Operating temperature -20 ~ 50 °C, storage temperature -40 ~ 70 °C | |
| Humidity | 5% to 95%RH without condensation | |
| Laser performance | Laser Safety Level | 2 Types of laser products |
| Wavelength | 650 nm | |
| Light beam divergence angle | 14.5° × 14.5° | |
| Repeat frequency | Changliang | |
| Maximum power | 3.8 MW | |
| General norms | Software | IDMVS |
| Certification | CE, RoHS, KC |
MV-ID813M-05S-WBN-NR-R

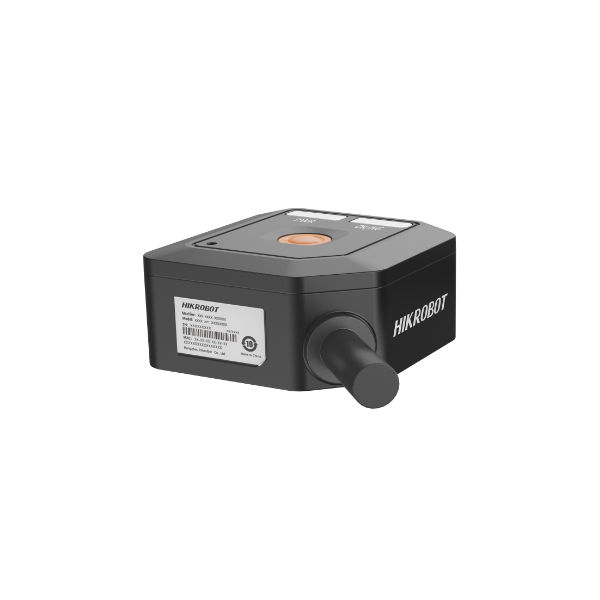

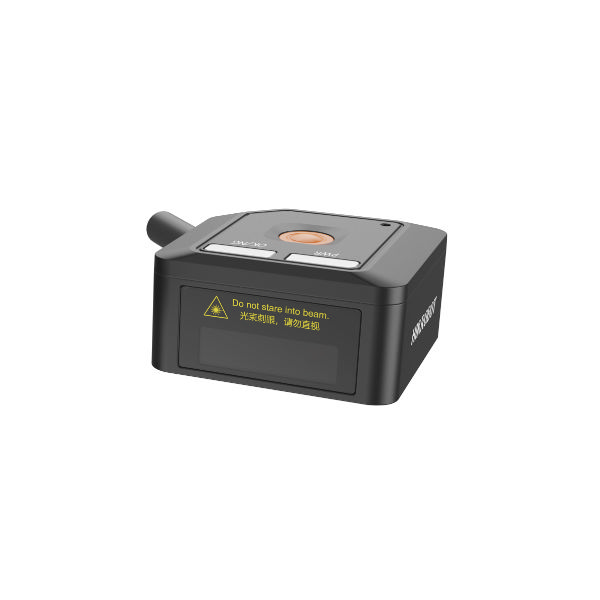

HIKROBOT MV-ID813M-05S-WBN-NR-R :: Fixed Code Reader, ID800 Series, 1.3MPix (1280×1024), 20 codes/sec, 60 fps, 5mm, Serial, white light
HIKROBOT MV-ID813M-05S-WBN-NR-R :: Fixed Code Reader, ID800 Series, 1.3MPix (1280×1024), 20 codes/sec, 60 fps, 5mm, Serial, white light
- Minimalist design, for all types of machines and compact stations
- Using high-performance barcode recognition algorithm, can effectively read difficult-to-recognize inkjet codes in light industry, enterprises, retail and other fields.
- With laser guidance, clearly showing the target field of view, quick installation and commissioning
- Buzzer, status indicator
| Model | Model | MV-ID813M-05S-WBN-NR-R |
| Name of | 130W resolution, 5mm focal length, white light, SR, serial port, static cable | |
| Performance | Barcode Category | Code 39, Code 93, Code 128 (including GS1-128), ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCE QR Code (including GS1-QR), Data Matrix (including GS1-DM), Micro QR, AZTEC, Han Xin Stacked code: PDF417 |
| Barcode minimum accuracy | Number of yards: 2 mil 2D code: 5 mil |
|
| Maximum processing frame rate | 60 FPS | |
| Maximum read speed | 20 codes per second | |
| Like the size. | 2.7 μm x 2.7 μm | |
| Target size | 1/4″ | |
| Resolution | 1280 × 1024 | |
| depth of field | Code39 (5 mil) 45 mm to 160 mm Code128 (3 mil): 50 mm to 130 mm Code128 (10 mil): 50 mm to 235 mm Data Matrix (5 mil): 55 mm to 100 mm QR Code (10mil) 45 mm to 165 mm QR Code (20mil): 45 mm to 225 mm |
|
| Exposure time | 60 us to 7000 us | |
| Gain | 1 dB to 15 dB | |
| Black and White/Color | Black and White | |
| Communication protocol | SmartSDK, USB, Serial | |
| Electrical characteristics | Data interface | RS-232 |
| Number of I/O | 1 non-isolated input (pin 1 input), 1 non-isolated output (pin 3 output), 1 configurable input and output (pipe foot 2 input/output), 1 RS-232 Supports triggering devices via top button |
|
| Power supply | 12 to 24 VDC | |
| Maximum power consumption | 2.5 W@12 VDC | |
| Structure | focal length | 4.9 mm |
| Camera interface | M10 – Mount | |
| Camera cover | Transparent camera cover | |
| Ambient light | 0 to 100000 lux | |
| Light source | Warm white LED | |
| Target | Cross laser aiming | |
| Status tips | LED indicator, buzzer | |
| External dimensions | 38 mm × 38 mm × 19 mm | |
| Weight | Approximately 40 g (without cable) | |
| IP protection level | IP54 | |
| temperature | Operating temperature -20 ~ 50 °C, storage temperature -40 ~ 70 °C | |
| Humidity | 5% to 95%RH without condensation | |
| Laser performance | Laser Safety Level | 2 Types of laser products |
| Wavelength | 650 nm | |
| Light beam divergence angle | 14.5° × 14.5° | |
| Repeat frequency | Changliang | |
| Maximum power | 3.8 MW | |
| General norms | Software | IDMVS |
| Certification | CE, RoHS, KC |
