- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to detect object’s existence, count patterns and spots, etc.
- Multiple IO interfaces for input and output signals.
- Multiple indicators for displaying device status.
- Adopts light source to ensure uniform brightness in the illuminated area.
- Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP, etc.
MV-SC2016EC-08S-WBN
HIKROBOT Smart Camera SC2000E Series
HIKROBOT Smart Camera SC2000E Series
The SC2000E vision sensor integrates full functions of a vision system: lighting, acquisition, processing, and communication in minimal fuselage. Bring new choices for Y/N, P/N verifications with excellent performance in error-proofing detection scenarios.
Inspection solutions such as presence/absence, U/D, Positioning, counting, etc. are often used for error-proof inspection. More visual inspection tools can provide the optimal solution for parts of different shapes on the production line, making visual application easier.
Red, blue, white sources provide better imaging for products of different colors.
Visible light polarization mirror to filter glare interference.
SV/VT series display products provide visual real-time detection interface and statistics.
The camera is equipped with 0.6m cable, more convenient to use on site.
| Model | Product Model | MV-SC2016EC-08S-WBN |
| Type | SC2000E series vision sensor，8mm focal length，1.6MP，Color | |
| Tool | Vision tool | Count: Pattern count, edge count, and spot countExistence: Circle existence, line existence, spot existence, edge existence, and pattern existenceLocation: FixtureLogic tool: Condition judge, character comparison, logic judge, and calculatorMeasurement: L2L angle, diameter measurement, brightness average value, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurement, and color sizeRecognition: OCR, color contrast, and classification registration |
| Solution capacity | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. | |
| Communication protocol | Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm × 3.45 µm | |
| Sensor size | 1/2.9" | |
| Resolution | 1408 × 1024 | |
| Max. frame rate | 60 fps | |
| Dynamic range | 71.4 dB | |
| SNR | 41 dB | |
| Gain | 0 dB to 15 dB | |
| Exposure time | 16 μs to 1 sec | |
| Pixel format | Mono 8, RGB 8 | |
| Mono/color | Color | |
| Electrical feature | Data interface | Fast Ethernet |
| Digital I/O | 17-pin M12 connector provides power, Ethernet, serial port, digital I/O, including configurable I/O × 2 (Line 0/1), input signal × 1 (Line 2), output signal × 1 (Line 3), and RS-232× 1.Device trigger via pressing button supported. | |
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | Approx. 22 W@24 VDC | |
| Mechanical | Lens mount | M12-mount, adjusting focus manually supported |
| Focal length | 8 mm (0.3") | |
| Lens cap | Transparent lens cap | |
| Light source | White LED lamp | |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS). | |

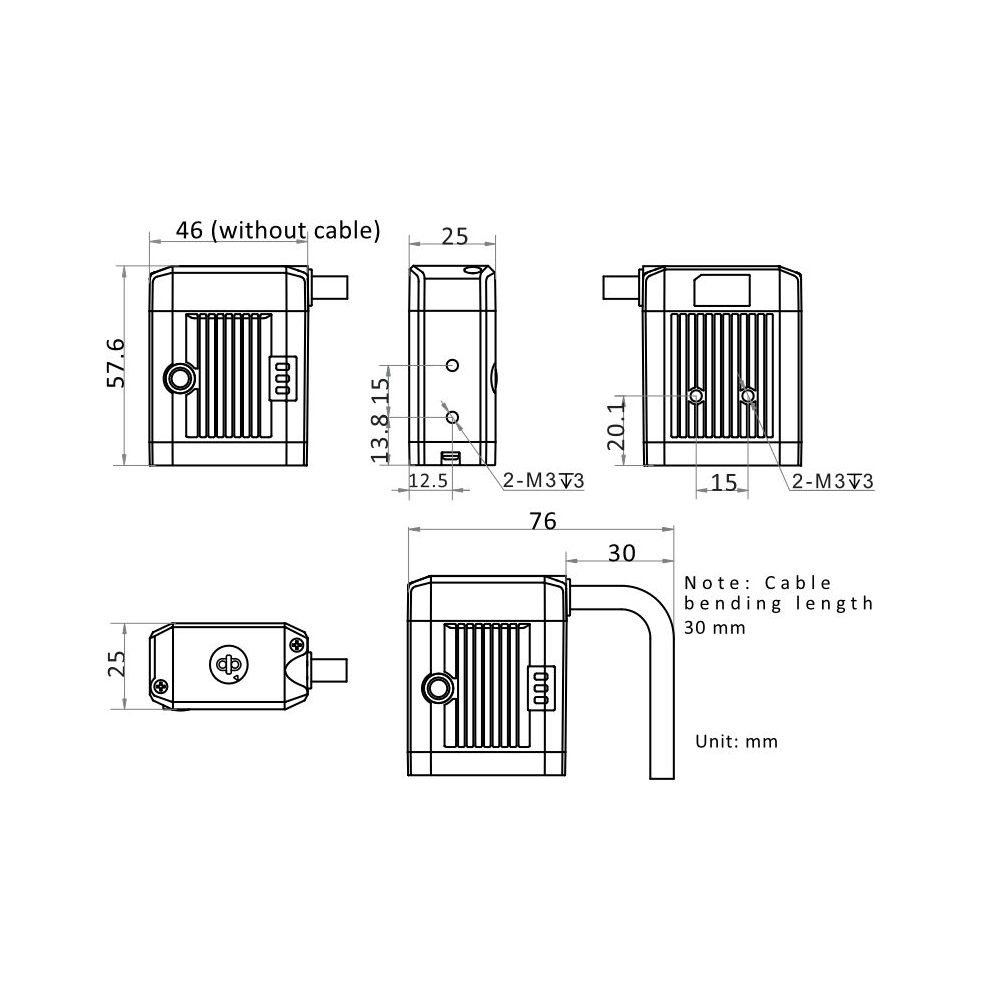

| Dimension | 46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0") | |
| Weight | Approx. 220 g (0.5 lb.) | |
| Ingress protection | IP65 (under proper installation of lens and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | SCMVS |
| Certification | CE, FCC, KC |
