HIKROBOT Smart Code Reader ID2000 Series

5mm, 1.3MP (1280 × 1024), 50 fps, 30 codes/sec, White, USB2.0

HIKROBOT Smart Code Reader ID2000 Series

As a compact industrial barcode reader, ID2000 series can be embedded in automated machine equipment and other automated assembly line proximity barcode reading applications. Support common 1D, 2D and DPM codes, the patented lighting design provides high-quality image lighting.
Supports the identification of multiple 1D and 2D codes and DPM codes like laser engraving, inkjet and others. The decoding frame rate can reach up to 20fps and the code reading speed can reach 45 codes/s.
With a size of 46×25×38mm, ID2000 series support two installation methods (side/back), which can be perfectly embedded in miniaturized or existing automated machine equipments and can maximize saving installation space.

SKU: MV-ID2013EM-05-WBN-U Category: Tags: , , , , ,
  • Built-in deep learning algorithm to read codes with good robustness.
  • Compact design and small in size.
  • Adopts multiple IO interfaces and plug-in power interface.
  • Adopts LED aiming light to help aim codes.
  • Adopts buzzer and indicator for indicating device status.
  • Supports one-click parameter adjustment for convenient operation.

Model Product Model MV-ID2013EM-05-WBN-U
Type 5mm focal length 1.3MP USB Ultra-Compact Industrial Code Reader
Performance Symbologies 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE2-dimensional codes: QR Code, Data Matrix
Max. frame rate 50 fps
Max. reading speed 30 codes/sec
Sensor type CMOS, global shutter
Pixel size 2.7 µm × 2.7 µm
Sensor size 1/4″
Resolution 1280 × 1024
Exposure time 60 μs to 6000 μs
Gain 1 dB to 28 dB
Mono/color Mono
Communication protocol Device with USB interface: SmartSDK, USB (HID, CDC)
Depth of field Code 39 (5 mil): 75 mm to 215 mmCode 128 (10 mil): 50 mm to 400 mmEAN 13 (13 mil): 60 mm to 420 mmData Matrix (10 mil): 50 mm to 240 mmQR Code (15 mil): 40 mm to 290 mm
Optics Focal length 4.7 mm (0.2″)
Working distance 120 mm (4.7″)
Ambient illumination 900 lux@120 mm
Light source White
Aiming system Green LED
Electrical feature Data interface Device with USB interface: USB2.0
Digital I/O Device with USB interface: DB15 connector provides data transmission. Device trigger via pressing trigger button supported.
Power supply Device with USB interface: 5 VDC (USB2.0 provides power supply)
Max. power consumption Device with USB interface: 2.5 W@5 VDC (USB2.0 provides power supply)
Mechanical Lens mount M5.8-mount
Indicator Power indicator (POWER), status indicator (OK/NG)

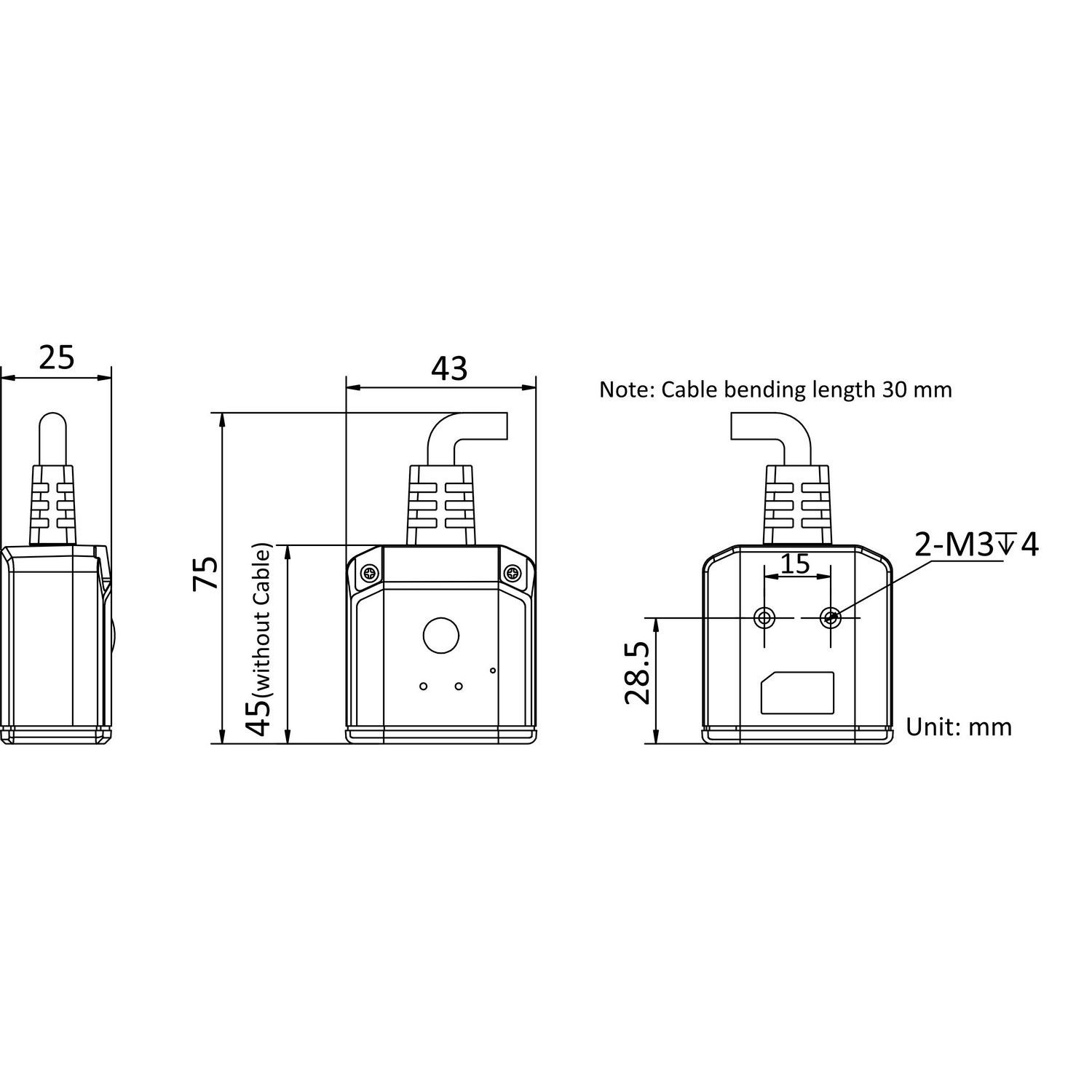

Dimension 45 mm × 43 mm × 25 mm (1.8″ × 1.7″ × 1.0″)
Weight Approx. 68.5 g (0.15 lb.)
Ingress protection IP54
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software IDMVS
Certification CE, FCC, RoHS
