- Built-in deep learning algorithm to read codes with good robustness.
- Compact design and small in size.
- Adopts multiple IO interfaces and plug-in power interface.
- Adopts LED aiming light to help aim codes.
- Adopts buzzer and indicator for indicating device status.
- Supports one-click parameter adjustment for convenient operation.
MV-ID2013EM-03N-RBN

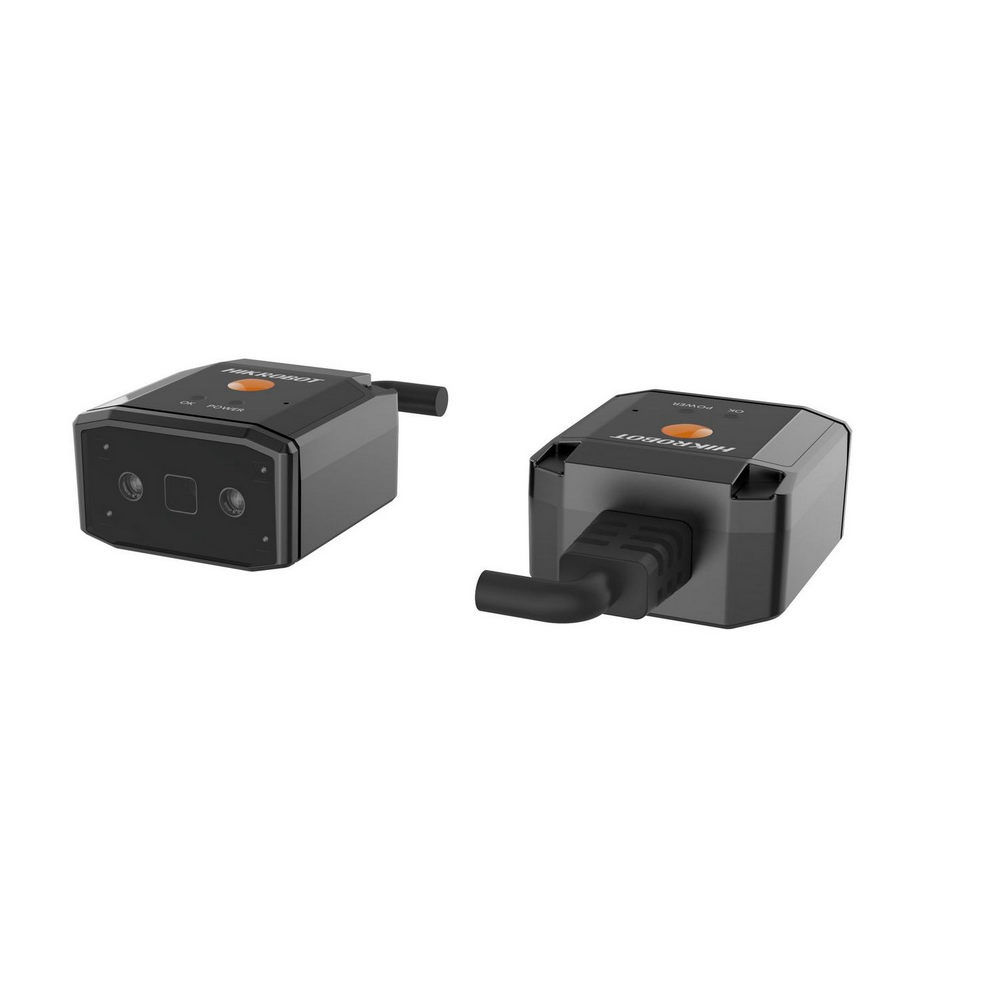

HIKROBOT Smart Code Reader ID2000 Series
HIKROBOT Smart Code Reader ID2000 Series
As a compact industrial barcode reader, ID2000 series can be embedded in automated machine equipment and other automated assembly line proximity barcode reading applications. Support common 1D, 2D and DPM codes, the patented lighting design provides high-quality image lighting.
Supports the identification of multiple 1D and 2D codes and DPM codes like laser engraving, inkjet and others. The decoding frame rate can reach up to 20fps and the code reading speed can reach 45 codes/s.
With a size of 46×25×38mm, ID2000 series support two installation methods (side/back), which can be perfectly embedded in miniaturized or existing automated machine equipments and can maximize saving installation space.
Product Downloads:
| Model | Product Model | MV-ID2013EM-03N-RBN |
| Type | 3mm Near Focus length 1.3MP Ultra-Compact Industrial Code Reader | |
| Performance | Symbologies | 1D codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2D codes: QR Code, Data Matrix |
| Max. frame rate | 50 fps | |
| Max. reading speed | 30 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 2.7 μm × 2.7 μm | |
| Sensor size | 1/4″ | |
| Resolution | 1280 × 1024 | |
| Exposure time | 60 μs to 0.6 sec | |
| Gain | 1 dB to 28 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP | |
| Depth of field | Code 39 (5 mil): 40 mm to 120 mm Code 128 (10 mil): 15 mm to 250 mm EAN 13 (13 mil): 30 mm to 280 mm QR Code (10 mil): 35 mm to 155 mm QR Code (15 mil): 15 mm to 215 mm QR Code (20 mil): 15 mm to 270 mm |
|
| Electrical feature | Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Digital I/O | DB15 connector provides power and I/O, including non-isolated input × 2 (Line 0/1), non-isolated output × 2 (Line 2/3), RS-232 × 1. Supports device triggering via pressing button on side. |
|
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | 2.5 W @ 12 VDC | |
| Mechanical | Focal length | 2.45 mm |
| Lens mount | M5.8-mount | |
| Ambient illumination | 0 lux to 10000 lux | |
| Light source | Red | |
| Aiming system | Green LED | |
| Indicator | Power indicator (POWER), status indicator (OK/NG) | |

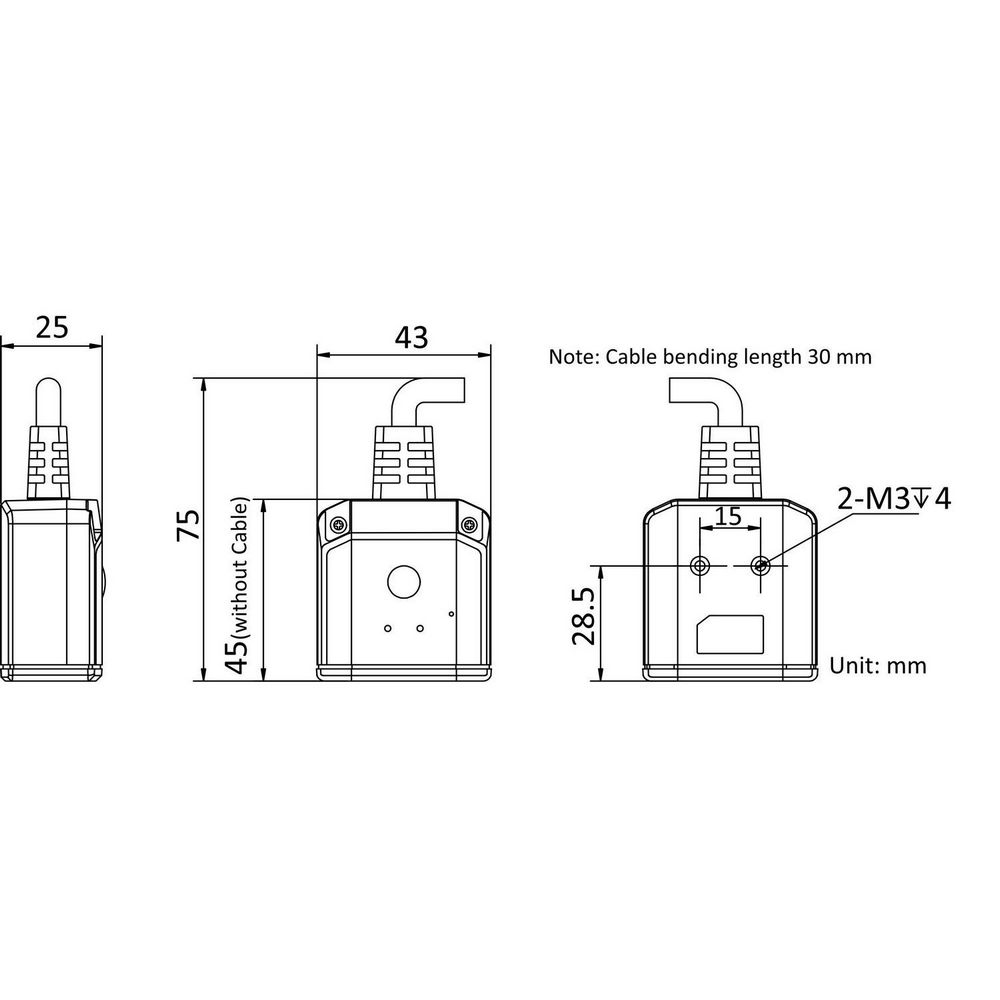

| Dimension | 45 mm × 43 mm × 25 mm (1.8″ × 1.7″ × 1.0″) | |
| Weight | Approx. 68.5 g (0.2 lb.) | |
| Ingress protection | IP54 | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | IDMVS |
| Certification | CE, RoHS, KC |
