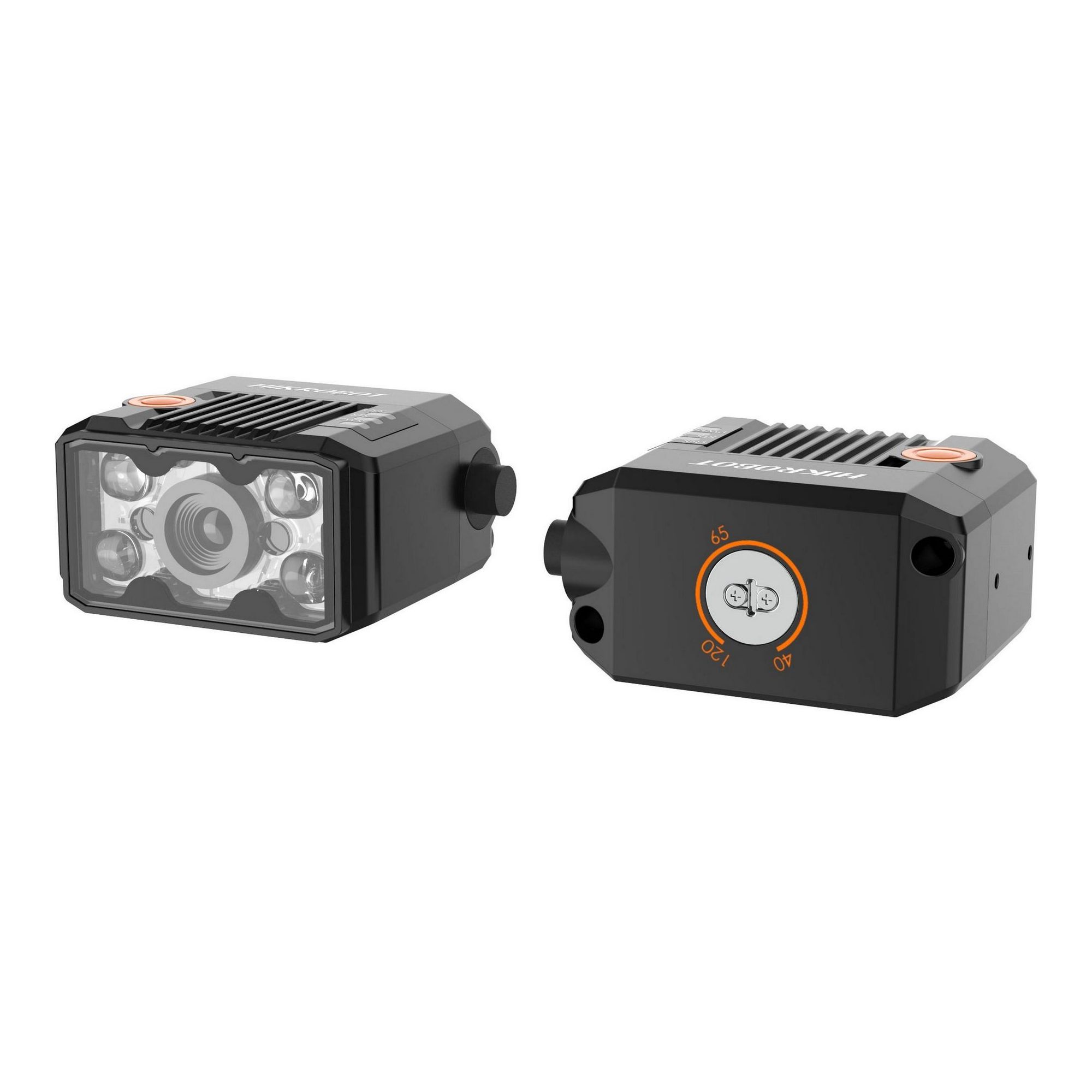

MV-ID2013M-06S-RBP

HIKROBOT Smart Code Reader ID2000 Series

6mm, 1.3MP (1280 × 1024), 60 fps, 45 codes/sec, Red (polarized), Fast Ethernet

HIKROBOT Smart Code Reader ID2000 Series

As a compact industrial barcode reader, ID2000 series can be embedded in automated machine equipment and other automated assembly line proximity barcode reading applications. Support common 1D, 2D and DPM codes, the patented lighting design provides high-quality image lighting.
Supports the identification of multiple 1D and 2D codes and DPM codes like laser engraving, inkjet and others. The decoding frame rate can reach up to 20fps and the code reading speed can reach 45 codes/s.
With a size of 46×25×38mm, ID2000 series support two installation methods (side/back), which can be perfectly embedded in miniaturized or existing automated machine equipments and can maximize saving installation space.

Compare
  • Built-in deep learning algorithm to read codes with good robustness.
  • Compact design and small in size.
  • Adopts aviation connector for single cable wiring.
  • Adopts LED aiming light to help aim codes.
  • Adopts focus knob for adjusting focusing manually.
  • Adopts multiple IO interfaces and plug-in power interface.
  • Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.

ModelProduct ModelMV-ID2013M-06S-RBP
Type6mm focal length 1.3MP Ultra-Compact Industrial Code Reader
PerformanceSymbologies1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE2-dimensional codes: QR Code, Data Matrix
Max. frame rate60 fps
Max. reading speed45 codes/sec
Sensor typeCMOS, global shutter
Pixel size4 µm × 4 µm
Sensor size1/2.7"
Resolution1280 × 1024
Exposure time35 μs to 1 sec
Gain0 dB to 15 dB
Mono/colorMono
Communication protocolSmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus TCP, UDP, Fins
OpticsFocal length6.72 mm (0.3")
Working distance40 mm to 120 mm (1.6" to 4.7"),
Ambient illumination0 lux to 50000 lux
Light source Red (polarized)
Aiming systemGreen LED
Electrical featureData interfaceFast Ethernet
Digital I/O17-pin M12 connector provides power and I/O, including configurable bi-directional none-isolated I/O × 4: input (Line 0/1) and output (Line 2/3) by default, RS-232 × 1. Device trigger via pressing button on side supported.
Power supply12 VDC to 24 VDC
Max. power consumptionApprox. 10.6 W@24 VDC
MechanicalLens mountM10-mount, adjusting focus manually supported
IndicatorPower indicator (PWR), network indicator (LNK), and status indicator (STS).

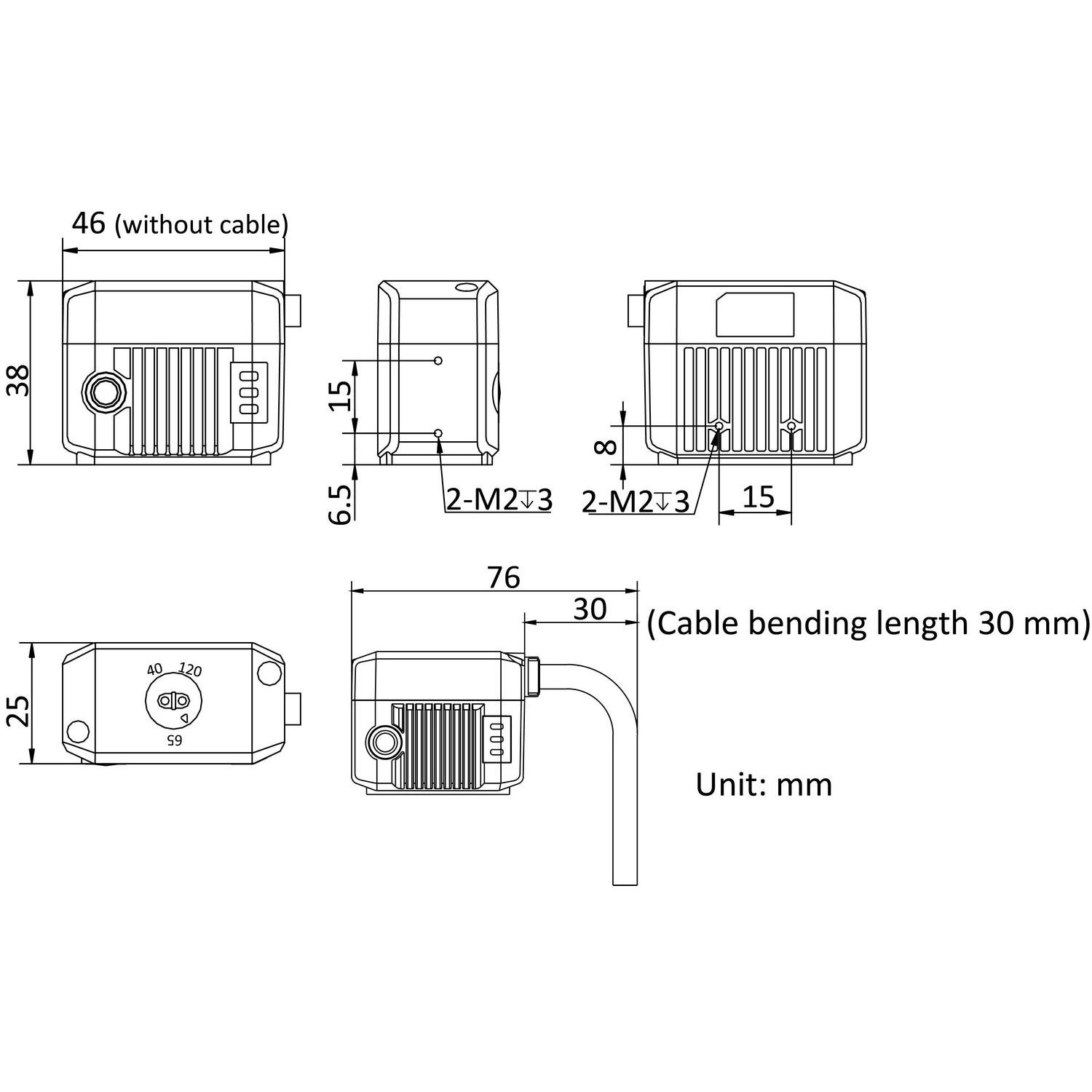

Dimension46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
WeightApprox. 160 g (0.35 lb.)
Ingress protectionIP65
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 95% RH, non-condensing
GeneralClient softwareIDMVS
CertificationCE, RoHS
