- Built-in deep learning algorithm to read codes with good robustness.
- Compact design and small in size.
- Adopts aviation connector for single cable wiring.
- Adopts LED aiming light to help aim codes.
- Adopts focus knob for adjusting focusing manually.
- Adopts multiple IO interfaces and plug-in power interface.
- Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
MV-ID2004M-06S-RBN
HIKROBOT Smart Code Reader ID2000 Series
HIKROBOT Smart Code Reader ID2000 Series
As a compact industrial barcode reader, ID2000 series can be embedded in automated machine equipment and other automated assembly line proximity barcode reading applications. Support common 1D, 2D and DPM codes, the patented lighting design provides high-quality image lighting.
Supports the identification of multiple 1D and 2D codes and DPM codes like laser engraving, inkjet and others. The decoding frame rate can reach up to 20fps and the code reading speed can reach 45 codes/s.
With a size of 46×25×38mm, ID2000 series support two installation methods (side/back), which can be perfectly embedded in miniaturized or existing automated machine equipments and can maximize saving installation space.
Product Downloads:
| Model | Product Model | MV-ID2004M-06S-RBN |
| Type | 6mm focal length 0.4MP Ultra-Compact Industrial Code Reader | |
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 60 fps | |
| Max. reading speed | 41 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 6.9 µm × 6.9 µm | |
| Sensor size | 1/2.9″ | |
| Resolution | 704 × 540 | |
| Exposure time | 16 μs to 1 sec | |
| Gain | 0 dB to 15 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, UDP, Fins, SLMP | |
| Optics | Focal length | 6 mm (0.2″) |
| Working distance | 40 mm to 120 mm (1.6″ to 4.7″), adjusting focus manually supported | |
| Ambient illumination | 0 lux to 50000 lux | |
| Light source | Red LED | |
| Aiming system | Green LED | |
| Electrical feature | Data interface | Fast Ethernet |
| Digital I/O | 17-pin M12 connector provides power and I/O, including configurable bi-directional none-isolated I/O × 4: input (Line 0/1) and output (Line 2/3) by default, RS-232 × 1. Device trigger via pressing button on side supported. | |
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | Approx. 10.6 W@24 VDC | |
| Mechanical | Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS). |

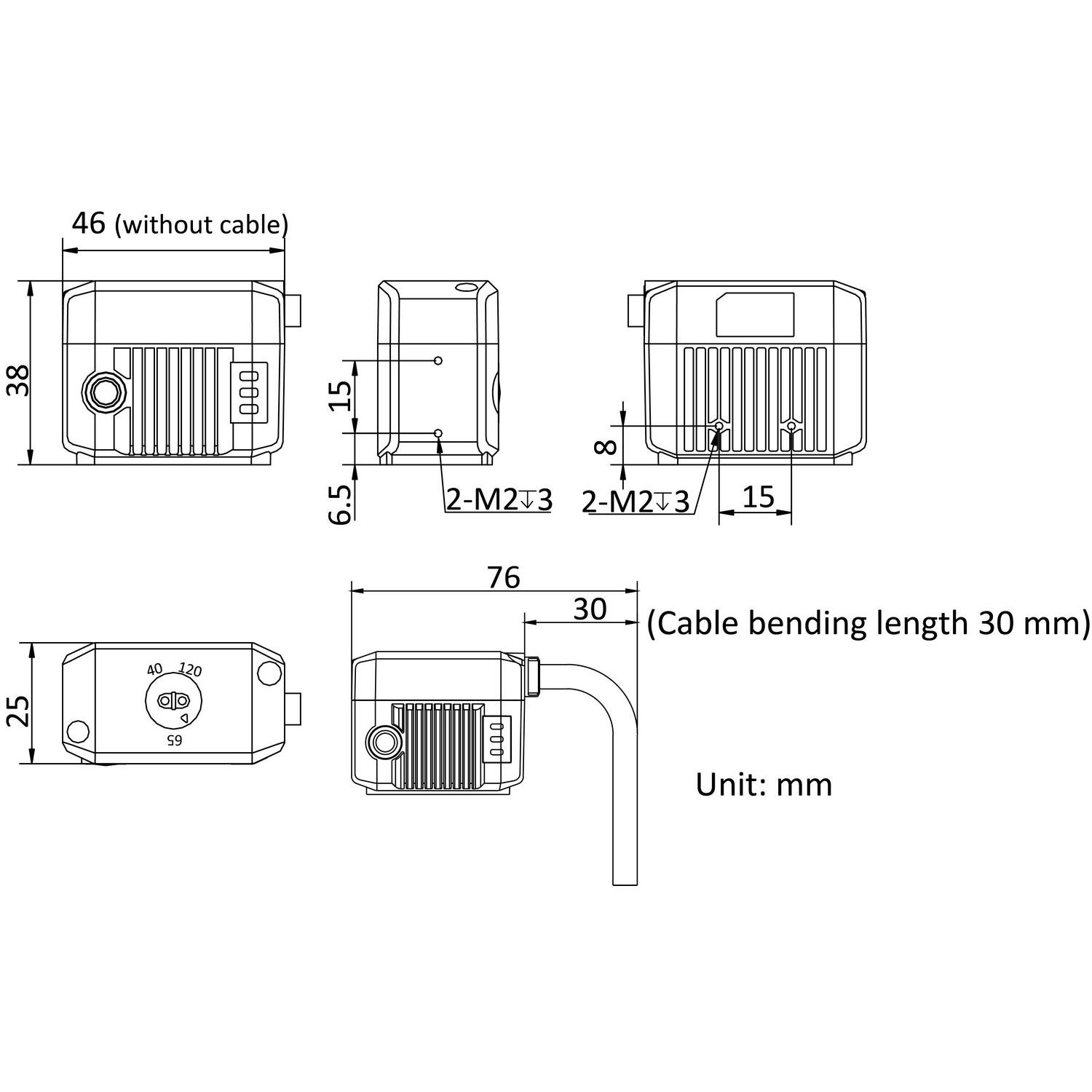

| Dimension | 46 mm × 38 mm × 25 mm (1.8″ × 1.5″ × 1.0″) | |
| Weight | Approx. 160 g (0.35 lb.) | |
| Ingress protection | IP65 | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | IDMVS |
| Certification | CE, RoHS |
