- Adopts low power consumption design with stable performance.
- Supports auto and manual adjustment of gain, exposure time, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
MV-CU016-10GC

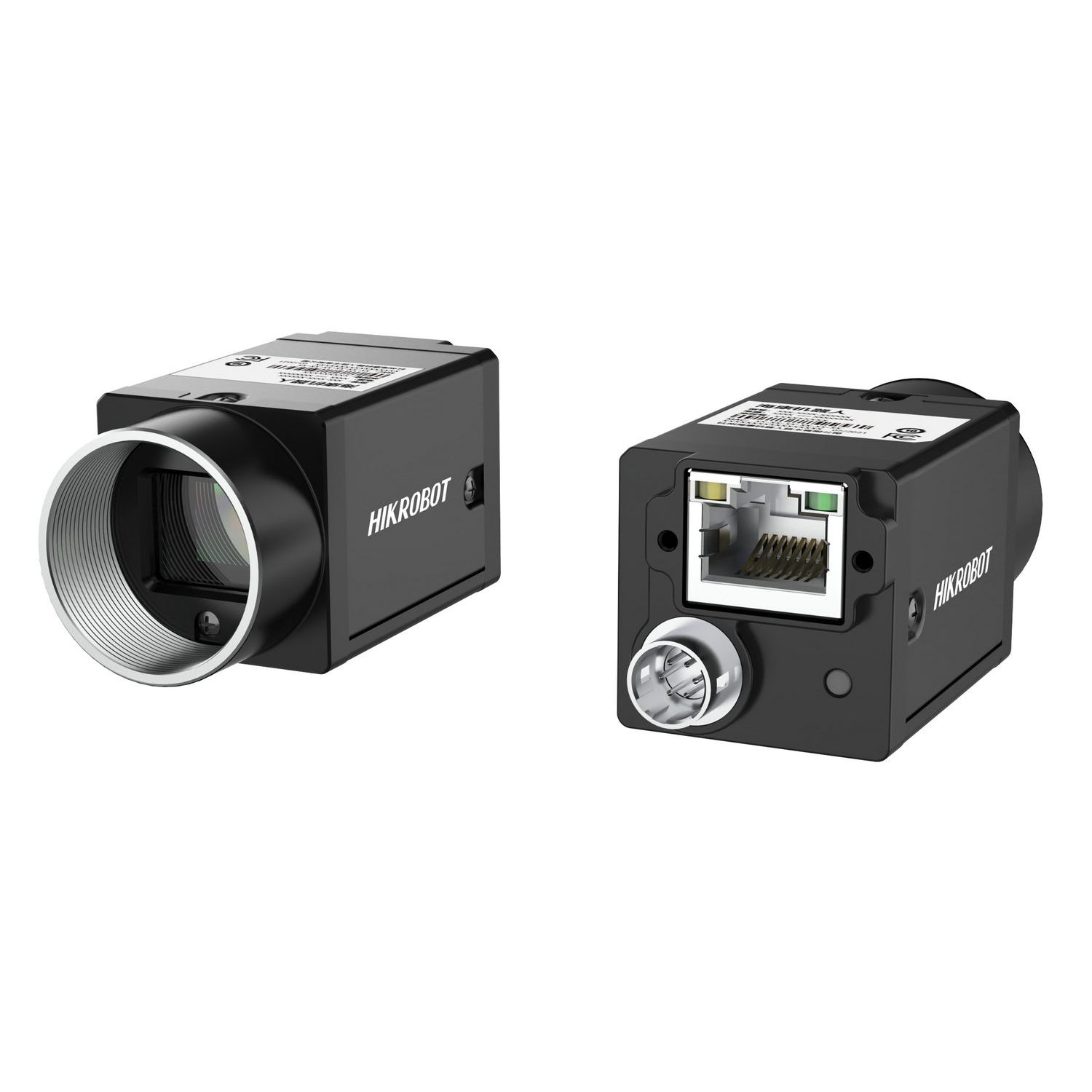

HIKROBOT Area Scan Camera CU Series
HIKROBOT Area Scan Camera CU Series
The CU series is designed with low power-consuming platform and stable performance, which creates a universal industrial camera product that satisfies the requirements for stability and necessary functions, helping users to obtain vision applications more easily.
With the built-in ISP algorithms like wide dynamic range, noise reduction and sharpness, it can be flexibly adjusted according to the user’s actual scenarios, so as to minimize external interference, stabilize imaging, and reduce the burden on the back-end algorithm.
| Model | Product Model | MV-CU016-10GC |
| Type | 1.6MP Area Scan Camera, GigE, IMX296, Color, with PoE | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | IMX296 | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 1/2.9" | |
| Resolution | 1440 × 1080 | |
| Max. frame rate | 65.8 fps @1440 × 1080 Bayer RG 8 | |
| Dynamic range | 74 dB | |
| SNR | 41 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Color | |
| Pixel format | Bayer RG 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, PoE is optional | |
| Power consumption | Typ. 2 W@12 VDC | |
| Mechanical | Lens mount | C-mount |

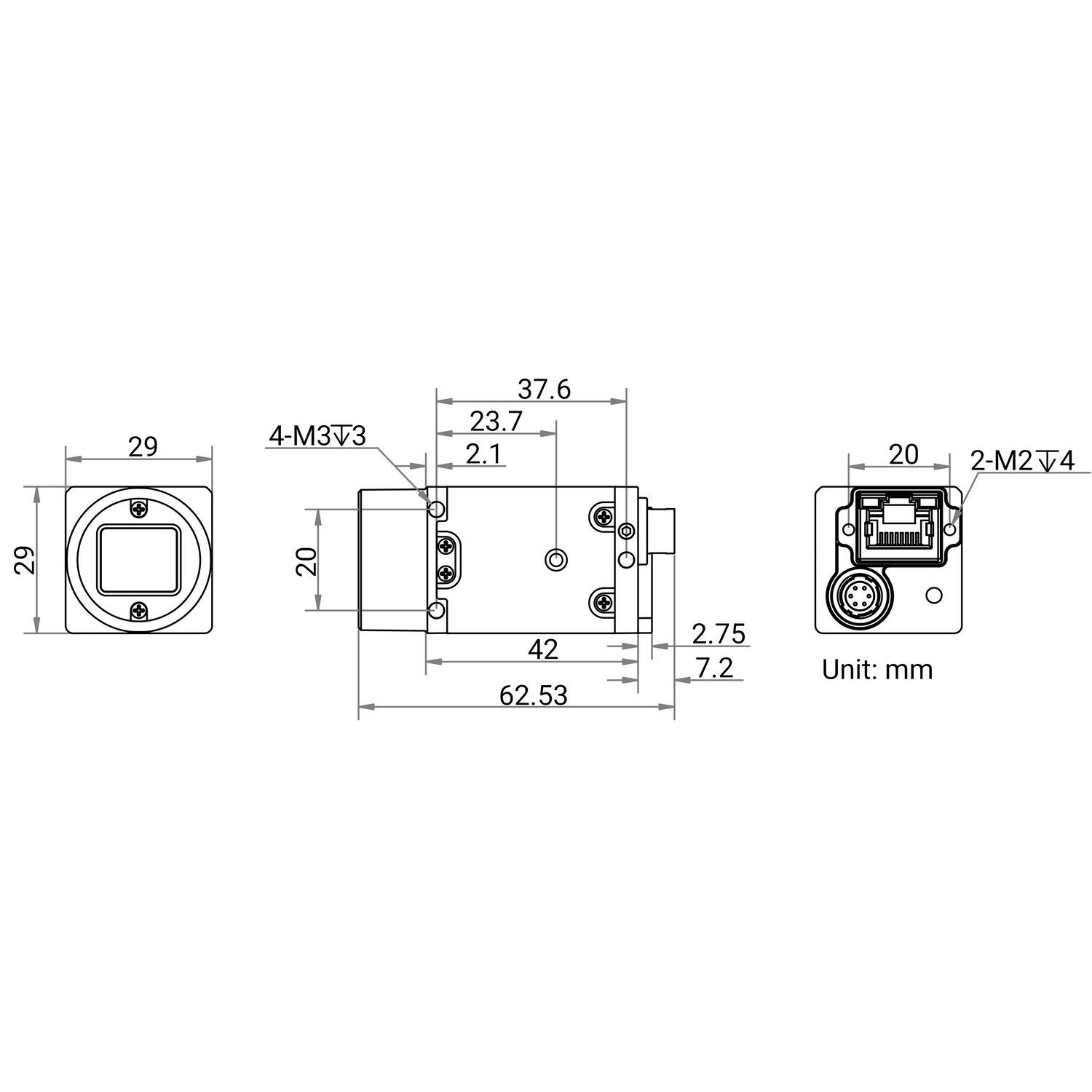

| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") | |
| Weight | Approx. 100 g (0.2 lb.) | |
| Ingress protection | IP30 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
