- Supports image compression mode, TDI, trigger-width exposure, RGB true color etc.
- Supports manual adjustment for Gamma correction, white balance, PRNUC correction, LUT, black level, space correction, etc.
- Adopts bi-directional I/O hardware design.
- Compact design and flexible installation.
- Compatible with GigE Vision V2.0 and GenlCam standard.
MV-CL086-91GC

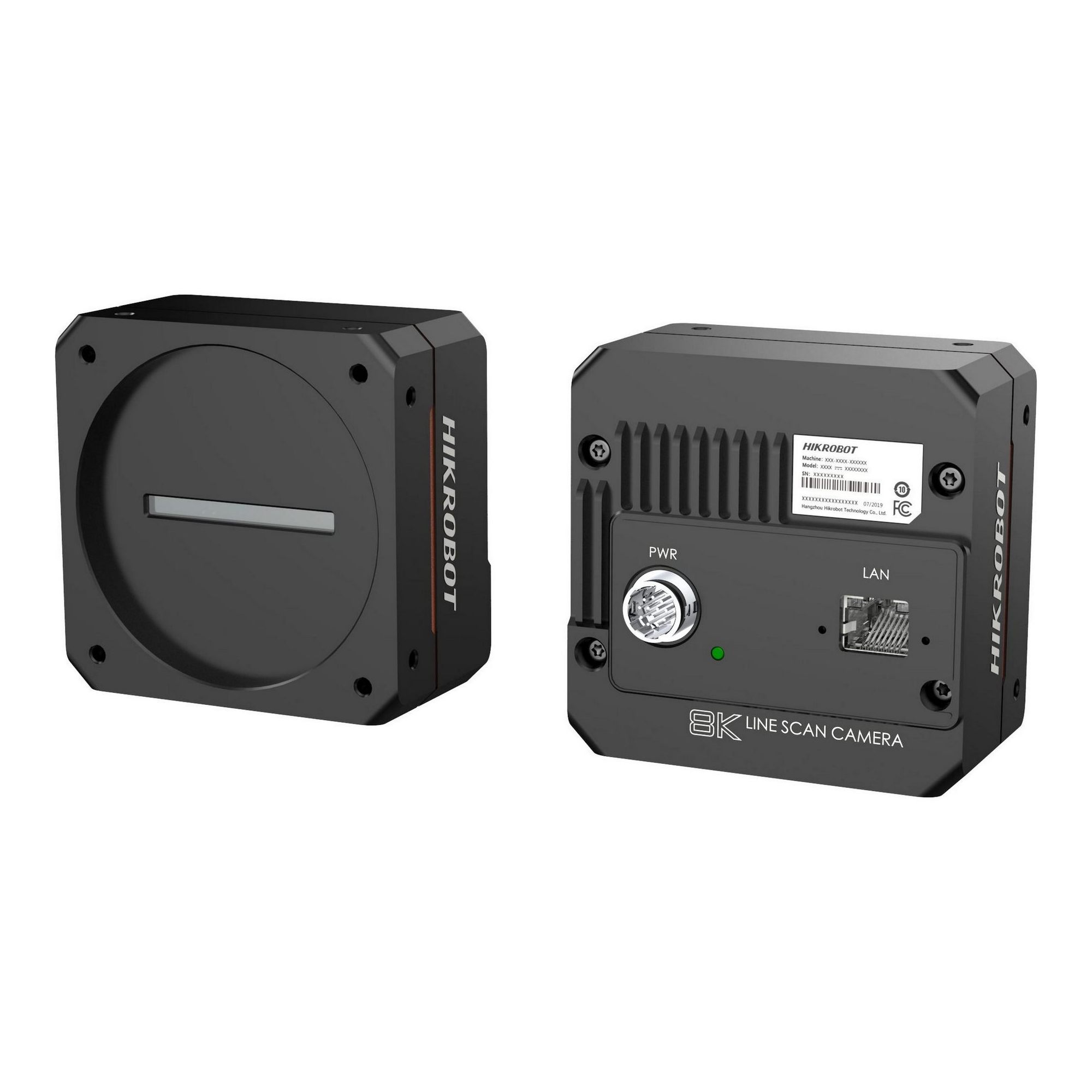

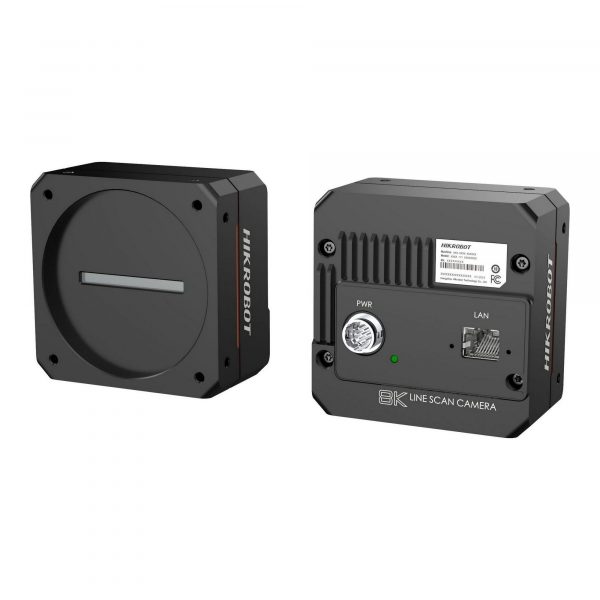

HIKROBOT Line Scan Camera CL Series
HIKROBOT Line Scan Camera CL Series
The CL series covers 2K-16K pixels and equipped with GigE/Camera Link/XoF interfaces, support a variety of ISP and algorithms that can fulfill various application needs of line scan cameras.
The CL camera supports various ISP functions: Flat field correction, Gamma, LUT, white balance, CCM, SC, etc. to help users obtain higher quality image data; Despite timed exposure, a new acquisition method of trigger-width controlled exposure is added, and with external (soft/hard) trigger signals, it can flexibly adapt to external lighting conditions and exposure control needs.
The High-Bandwidth Mode is equipped in the new GigE CL line scan camera. Breaking through the physical bandwidth of the gigabit network, the line frequency can been improved by 1.5-2 times, which provide users with a more cost-effective solution.
| Model | Product Model | MV-CL086-91GC |
| Type | 8K GigE Line Scan Cameras，Color | |
| Performance | Sensor type | CMOS |
| Pixel size | 5 μm | |
| Resolution | 8192 × 6 | |
| Image mode | Supports 1-line, 2-TDI | |
| Max. line rate | Standard mode: 14 kHz @Bayer 8/Mono 8, 7 kHz @Bayer 10/Mono 10, 4.7 kHz @RGB 8/BGR 8High-bandwidth mode: 40 kHz @Bayer 8, 20 kHz @Bayer 10, 14 kHz @RGB 8 | |
| Dynamic range | 54.8 dB | |
| SNR | 40.3 dB | |
| Gain | Supports 1.2 ×, 2.7 ×, 4.6 × | |
| Exposure time | 3 μs to 10 ms | |
| Exposure mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure | |
| Mono/color | Color | |
| Pixel format | Mono 8/10, Bayer RG 8/10, RGB 8, BGR 8 | |
| Binning | Not support | |
| Reverse image | Supports horizontal reverse image output | |
| Trigger mode | External trigger, internal trigger | |
| External trigger mode | Line trigger, frame trigger, line + frame trigger | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 12-pin Hirose connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and support single-ended/differential | |
| Power supply | 12 VDC to 24 VDC | |
| Power consumption | Typ. 13.0 W@12 VDC | |
| Mechanical | Lens mount | M72 *0.75, optical back focal length: 12 mm (0.5") |

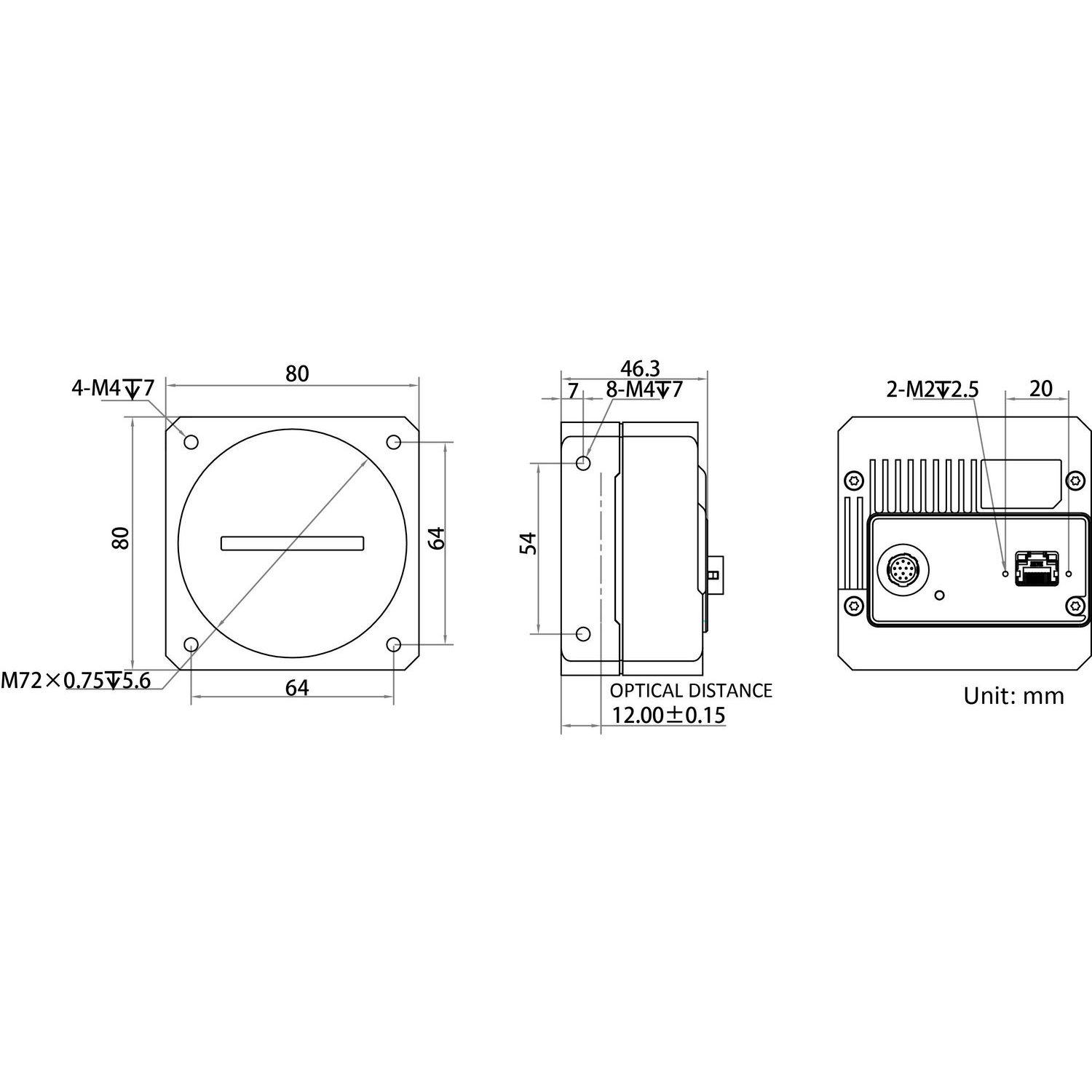

| Dimension | 80 mm × 80 mm × 46.3 mm (3.1" × 3.1" × 1.8") | |
| Weight | Approx. 465 g (1.0 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -20 °C to 55 °C (-4 °F to 131 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F) | |
| Humidity | 5% to 90% RH, non-condensing | |
| General | Client software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, FCC, RoHS, KC |
