MV-CH310-10TC-M58S-NN

HIKROBOT Area Scan Camera CH Series

3.45 μm, 17.2 fps @ 6464 × 4852 Bayer RG 8, Color, M58*0.75, 10 Gigabit

HIKROBOT Area Scan Camera CH Series

High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.

Product Downloads:

User ManualDrawingData Sheet

Compare
  • 31 MP resolution, and pixel size of 3.45 μm × 3.45 μm.
  • Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
  • Adopts design without fan to ensure stability of high-speed image acquisition.
  • Adopts low power consumption design.
  • Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Model Product Model MV-CH310-10TC-M58S-NN
Type 31MP Area Scan Camera, 10GigE, IMX342, Color, M58-mount, fanless
Performance Sensor type CMOS, global shutter
Sensor model IMX342
Pixel size 3.45 μm × 3.45 μm
Sensor size 22.3 mm × 16.7 mm
Resolution 6464 × 4852
Max. frame rate 17.2 fps @6464 × 4852 Bayer RG 8
Dynamic range 73 dB
SNR 40 dB
Gain 0 dB to 24 dB
Exposure time 4 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Color
Pixel format Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed,RGB 8, BGR 8
Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface 10GigE
Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply 9 VDC to 24 VDC
Power consumption Typ. 11.4 W@12 VDC

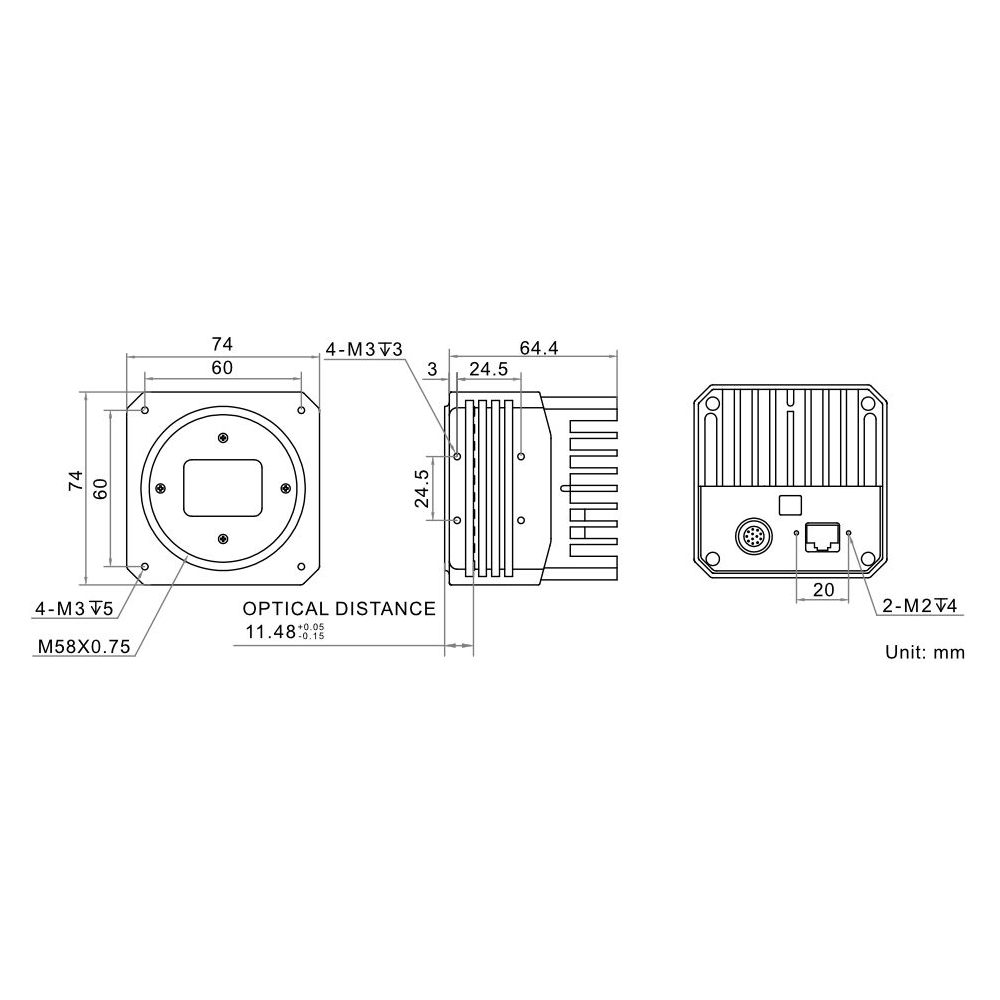

Mechanical Lens mount M58*0.75, flange focal length 11.48 mm (0.5″)
Dimension 74 mm × 74 mm × 64.4 mm (2.9″ × 2.9″ × 2.5″)
Weight Approx. 560 g (1.2 lb.)
Ingress protection IP40 ( under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows XP/7/10, 64-bit Windows 11
Compatibility GigE Vision V2.0, GenICam
Certification CE, FCC, RoHS, KC
