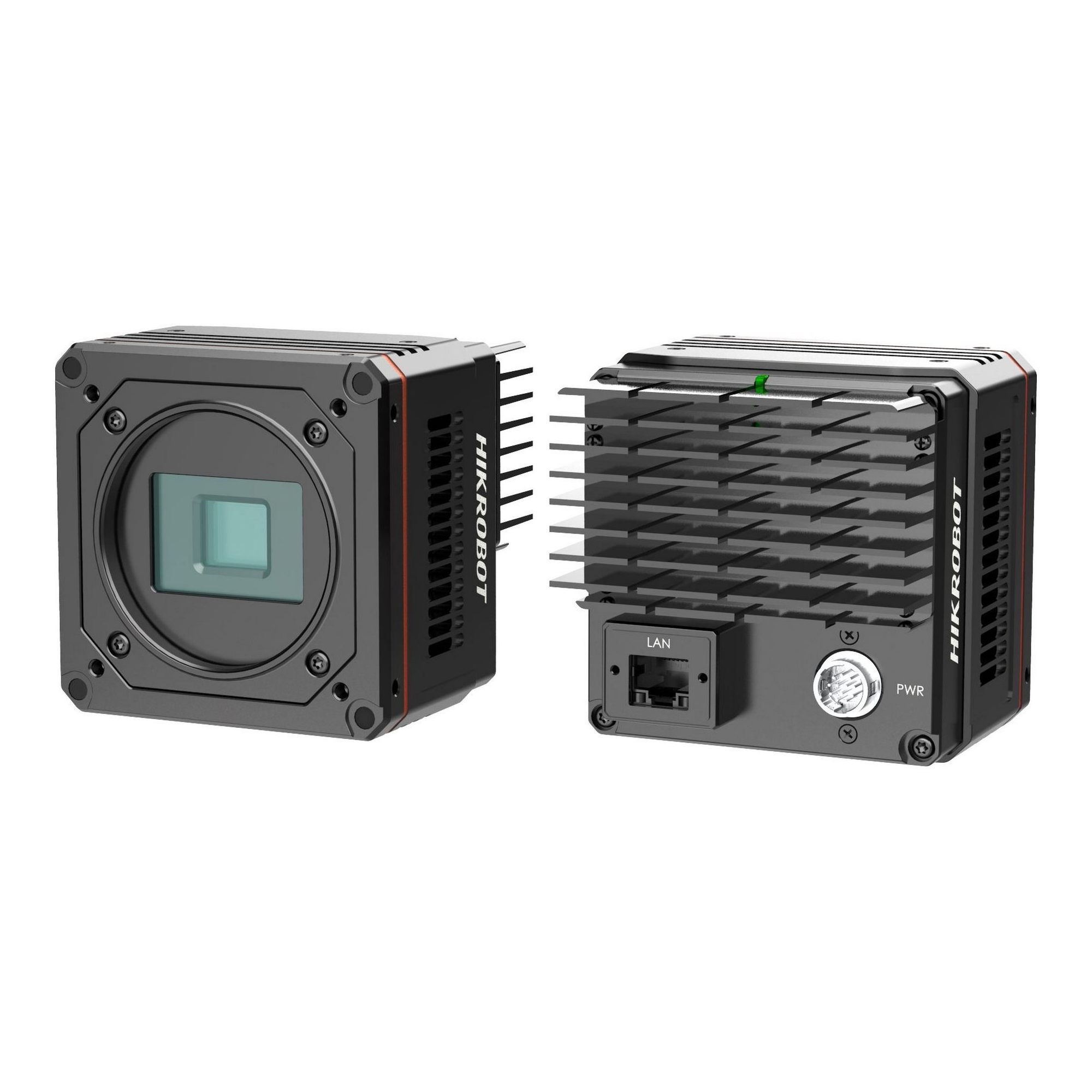

MV-CH240-10TM-C-NN

HIKROBOT Area Scan Camera CH Series

2.74 μm, 35.1 fps @ 5328 × 4600, Mono, C-mount, 10 Gigabit

HIKROBOT Area Scan Camera CH Series

High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.

Compare
  • Resolution of 5328 × 4600, and pixel size of 2.74 μm × 2.74 μm.
  • Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
  • Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
  • Compact design with mounting holes on panels for flexible mounting.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

ModelProduct ModelMV-CH240-10TM-C-NN
Type24MP Area Scan Camera, 10GigE, IMX530, Mono, C-mount, fanless
PerformanceSensor typeCMOS, global shutter
Sensor modelIMX540
Pixel size2.74 μm × 2.74 μm
Sensor size1.2"
Resolution5328 × 4600
Max. frame rate35.1 fps @5328 × 4600
Dynamic range71 dB
SNR40 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 7 μsStandard exposure mode: 8 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical featureData interface10GigE
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply9 VDC to 24 VDC
Power consumptionTyp. 10 W@12 VDC
MechanicalLens mountC-mount, flange back focal length: 17.52 mm (0.7")

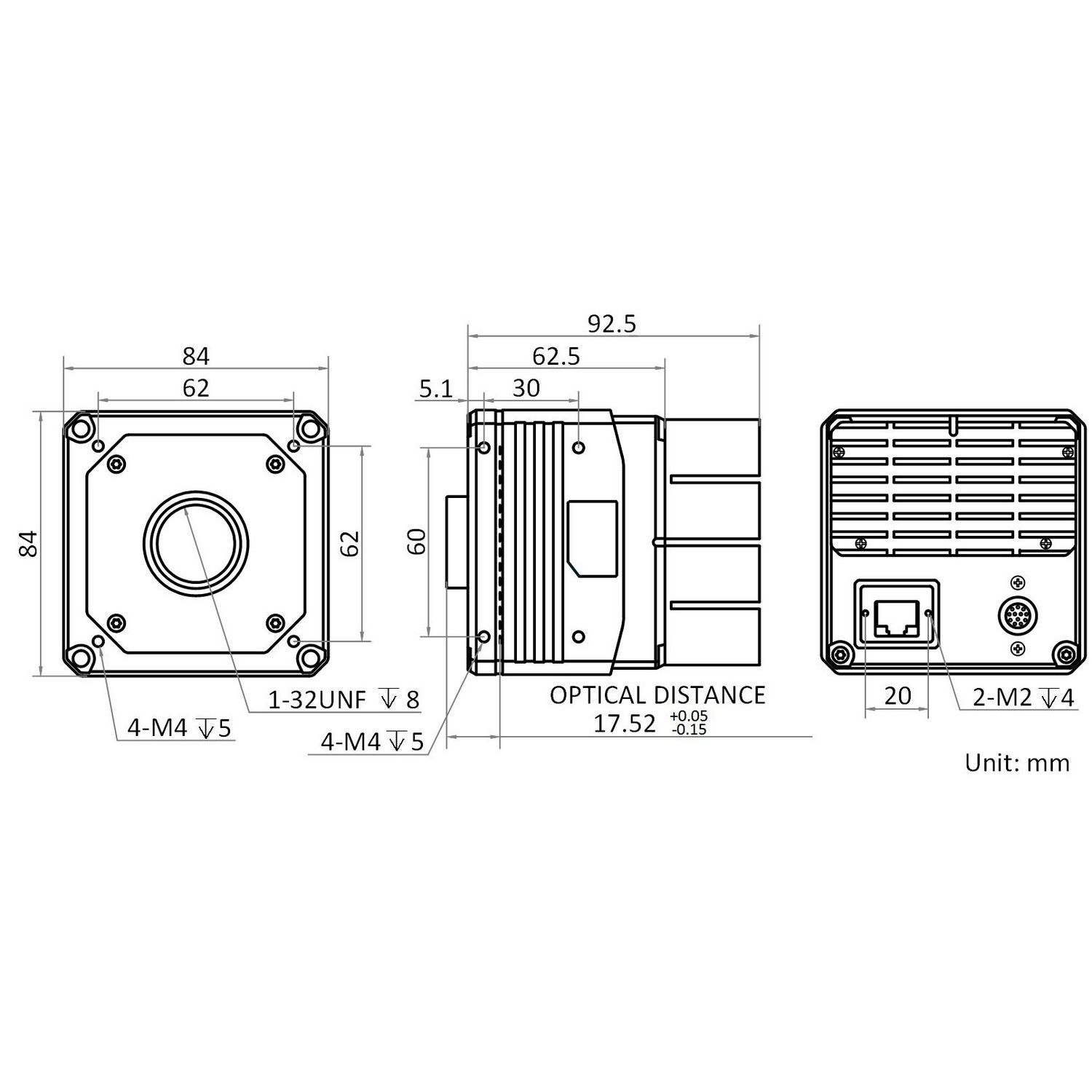

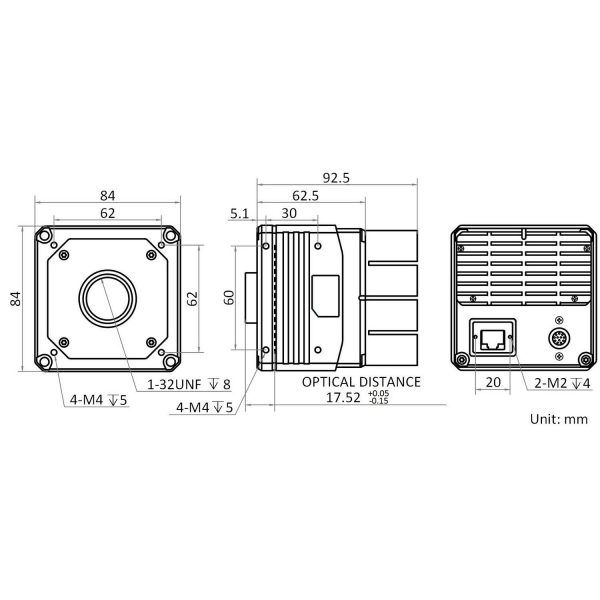

Dimension84 mm × 84 mm × 62.5 mm (3.3" × 3.3" × 2.5")
Weight< 600 g (1.3 lb)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 95% RH, non-condensing
GeneralClient softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
