MV-CH120-10GM

HIKROBOT Area Scan Camera CH Series

3.45 μm, 9.4 fps @ 4096 × 3000 Mono 8, Mono, C-Mount, Gigabit

HIKROBOT Area Scan Camera CH Series

High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.

Product Downloads:

DrawingData SheetUser Manual

Compare
  • Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, etc.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Supports hardware trigger, software trigger, free run, etc.
  • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.

Model Product Model MV-CH120-10GM
Type 12MP Area Scan Camera, GigE, IMX304, Mono, V4
Performance Sensor type CMOS, global shutter
Sensor model IMX304
Pixel size 3.45 µm × 3.45 µm
Sensor size 1.1″
Resolution 4096 × 3000
Max. frame rate 9.4 fps @4096 × 3000 Mono 8
Dynamic range 70.4 dB
SNR 40 dB
Gain 0 dB to 24 dB
Exposure time UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Mono
Pixel format Mono 8/10/10Packed/12/12Packed
Binning Supports 1 × 1, 2 × 2, 4 × 4
Decimation Supports 1 × 1, 2 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface GigE
Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply 9 VDC to 24 VDC, supports PoE
Power consumption Typ. 2.9 W@12 VDC
Mechanical Lens mount C-Mount

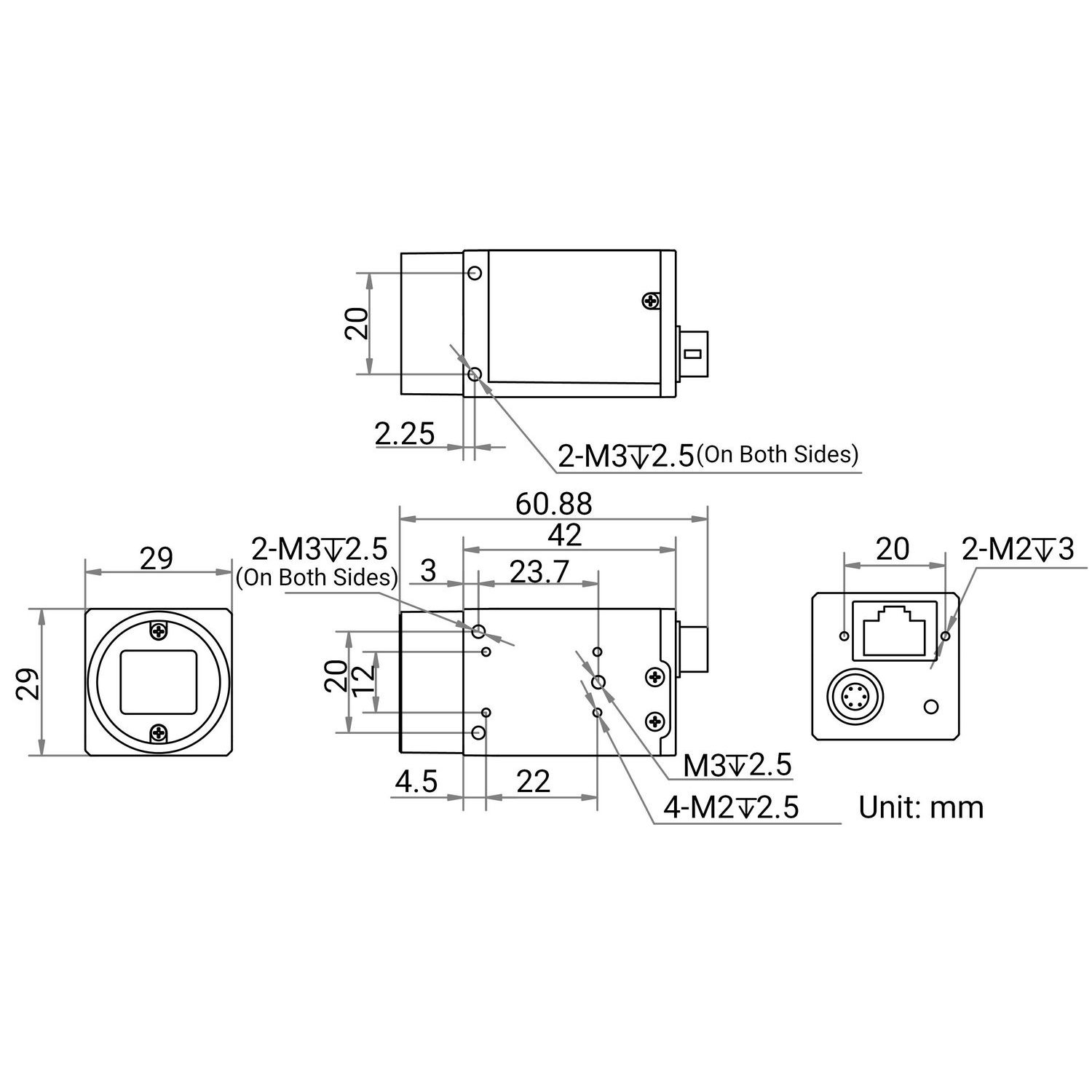

Dimension 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
Weight 100 g (0.2 lb.)
Ingress protection IP 40 (under proper lens installation and wiring)
Temperature Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility GigE Vision 2.0, GenlCam
Certification CE, RoHS, KC
