- Adopts global shutter CMOS sensor providing wide dynamic range and high-quality image.
- Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
- Adopts compact design with mounting holes for flexible mounting.
- Compatible with Camera Link V2.0 Protocol, GenICam Standard, and the third-party software based on the protocol and standard.
MV-CH120-10CC
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH120-10CC |
| Type | 12MP Area Scan Camera, Camera Link, IMX253, Color | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | IMX253 | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 1.1″ | |
| Resolution | 3840 × 3000 | |
| Max. frame rate | 68.1 fps @3840 × 3000 | |
| Configuration mode | Base, Medium, Full, 80-bit | |
| Tap geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y | |
| Tap number | 1 Tap, 2 Taps, 4 Taps, 8 Taps, 10 Taps | |
| Pixel clock | 40 MHz, 60 MHz, 70 MHz, 85 MHz | |
| Dynamic range | 71.6 dB | |
| SNR | 39.7 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | 1 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Color | |
| Pixel format | Bayer RG 8/10/12, RGB 8 | |
| Binning | Not support | |
| Decimation | Not support | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | Camera Link |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC | |
| Power consumption | Typ. 4.5 W@12 VDC | |
| Mechanical | Lens mount | C-mount |

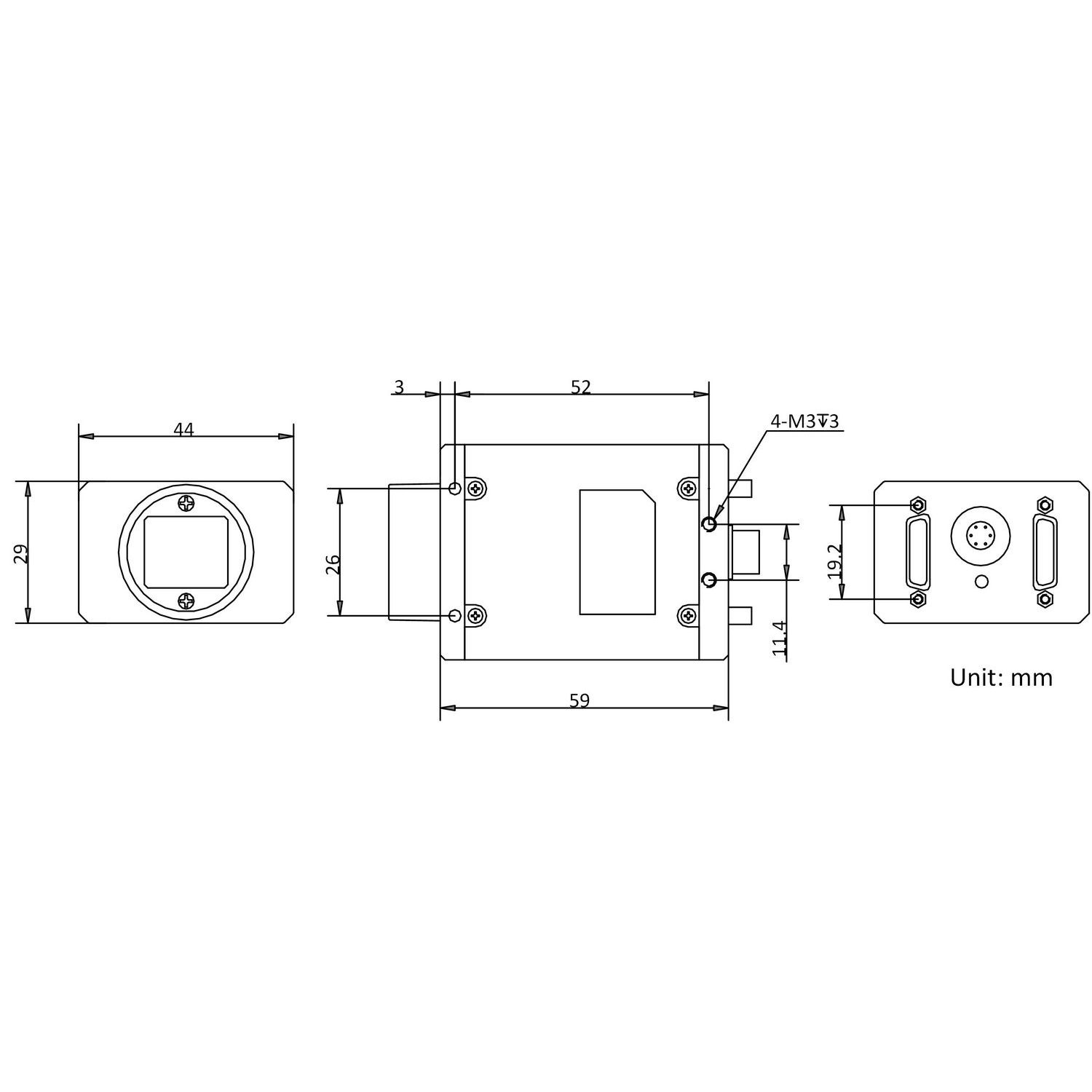

| Dimension | 44 mm × 29 mm × 59 mm (1.7″ × 1.1″ × 2.3″) | |
| Weight | Approx. 100 g (0.2 lb.) | |
| Ingress protection | IP30 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows XP/7/10 | |
| Compatibility | Camera Link V2.0, GenlCam | |
| Certification | CE, RoHS, KC |
