MV-CB016-10GM-S

HIKROBOT Board Level Camera CB Series

3.45 μm, 65.2 fps @ 1440 × 1080, Mono, M12-mount, Gigabit

HIKROBOT Board Level Camera CB Series

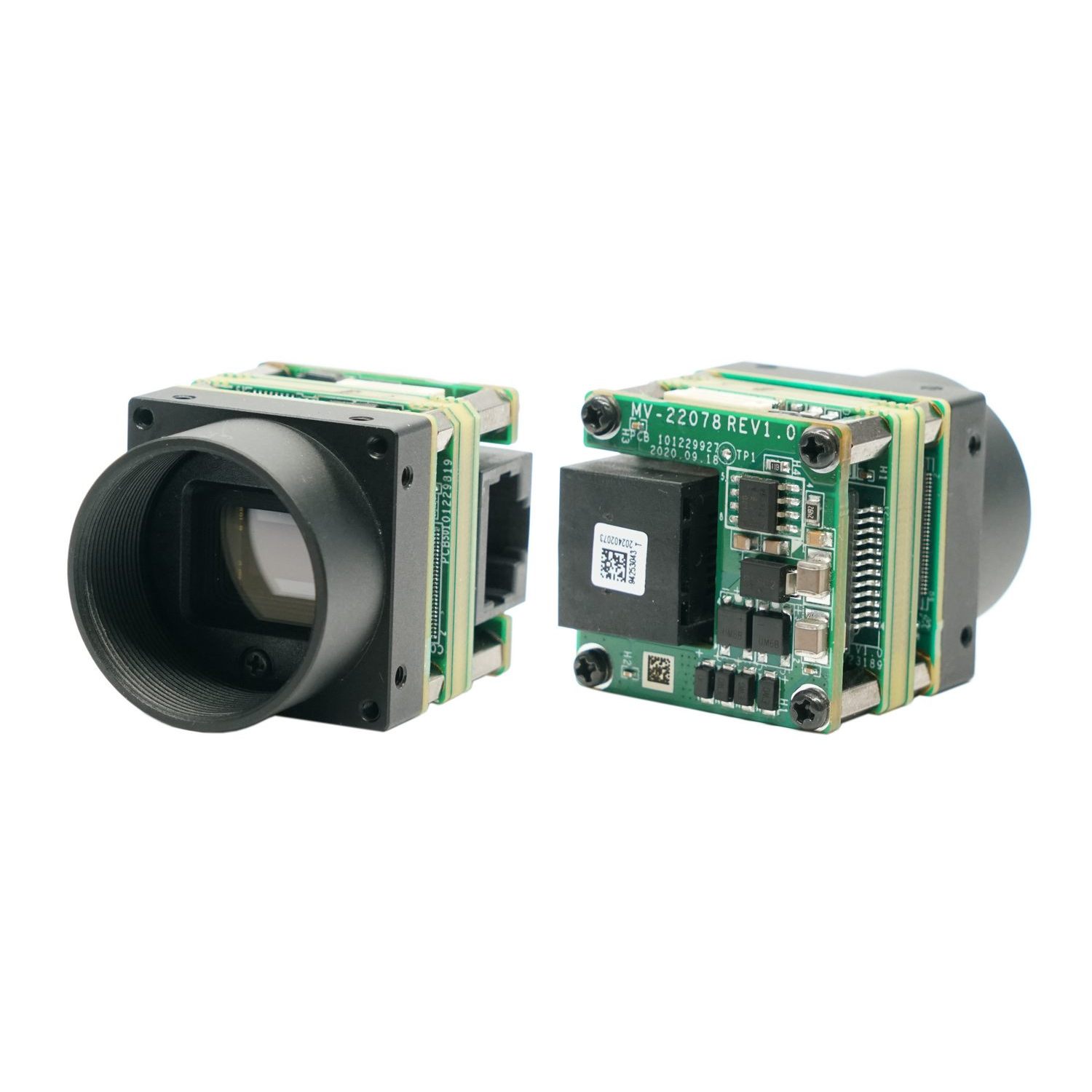

The CB series board-level products is designed with a single board or multi-board stacked, which supports GigE or U3V protocol. It is applicable to the industrial, embedded, 3D, medical and other scenarios with more stringent space requirements.
Ultra-small size, flexible for application – with a compact size, the board-level camera series is easier to be integrated into end users’ product structures.
The board-level camera can support a variety of lens interface options, bare board (B), C interface (C) and M12 interface (S) to fulfill various requirements.

Compare
  • Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc.
  • Adopts noise reduction function to provide high-quality images.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Model Product Model MV-CB016-10GM-S
Type 1.6MP Board Level Camera, GigE,IMX296,Mono,M12-mount
Performance Sensor type CMOS, global shutter
Sensor model IMX296
Pixel size 3.45 μm × 3.45 μm
Sensor size 1/2.9″
Resolution 1440 × 1080
Max. frame rate 65.2 fps @1440 × 1080
Dynamic range 74 dB
SNR 41 dB
Gain 0 dB to 24 dB
Exposure time UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec
Exposure mode Off/ Once/ Continuous exposure mode
Mono/color Mono
Pixel format Mono 8/10/10p/12/12p
Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface GigE
Digital I/O 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power supply 9 VDC to 24 VDC, supports PoE
Power consumption Typ. 2.6 W@12 VDC
Mechanical Lens mount M12-mount

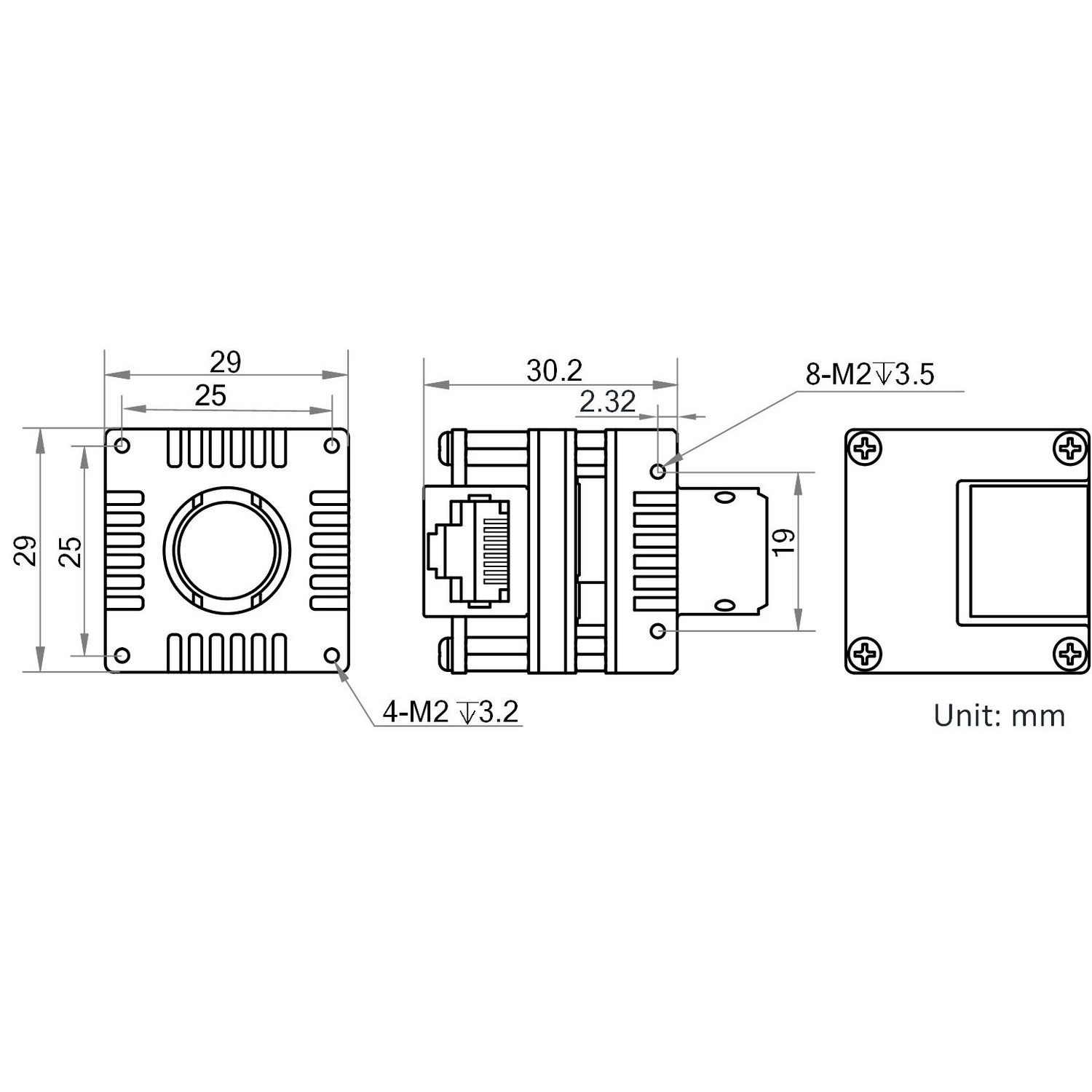

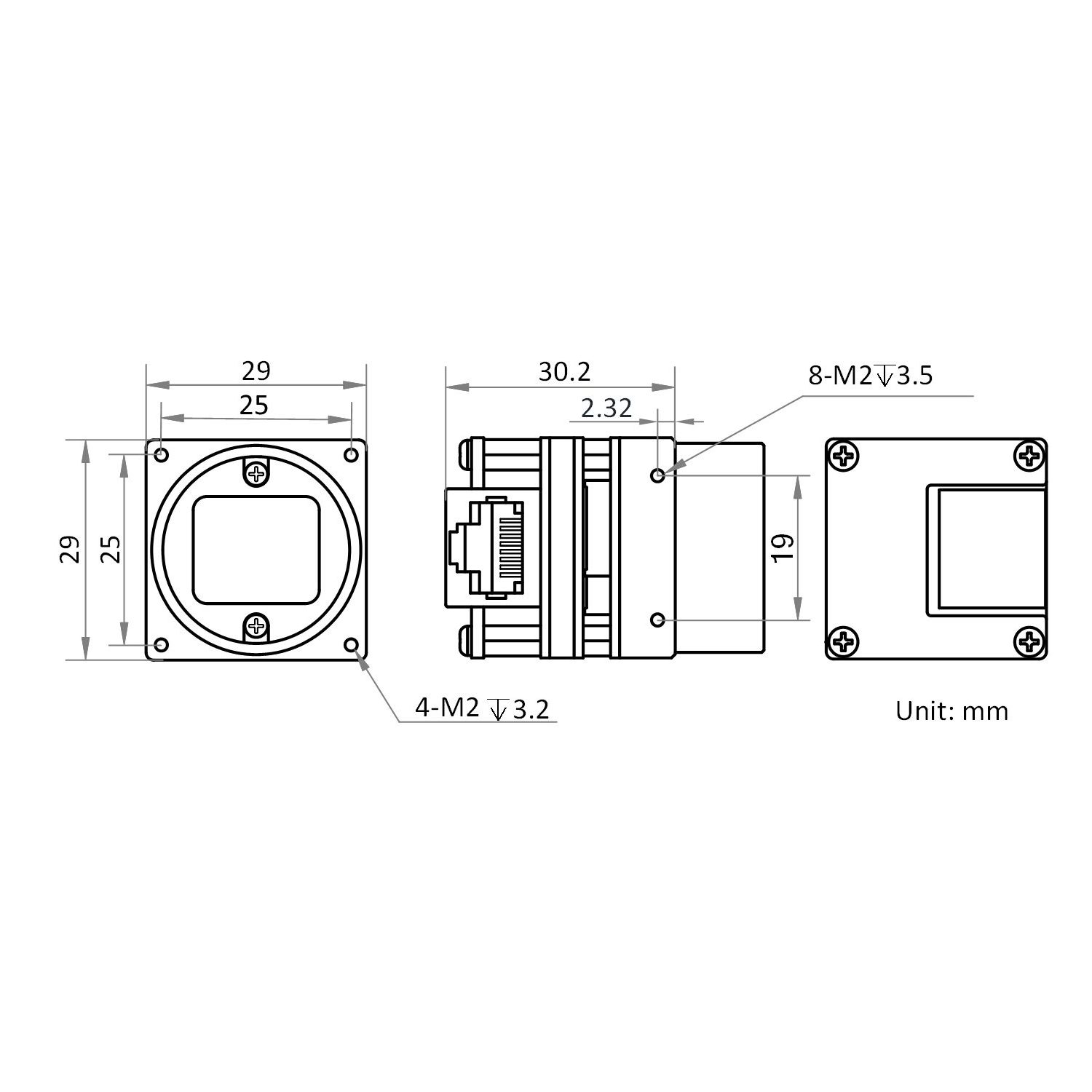

Dimension 29 mm × 29 mm × 30.2 mm (1.1″ × 1.1″ × 1.2″)
Weight Approx. 45 g (0.1 lb.)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 80% RH, non-condensing
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility GigE Vision V2.0, GenICam
Certification CE, FCC, RoHS, KC
