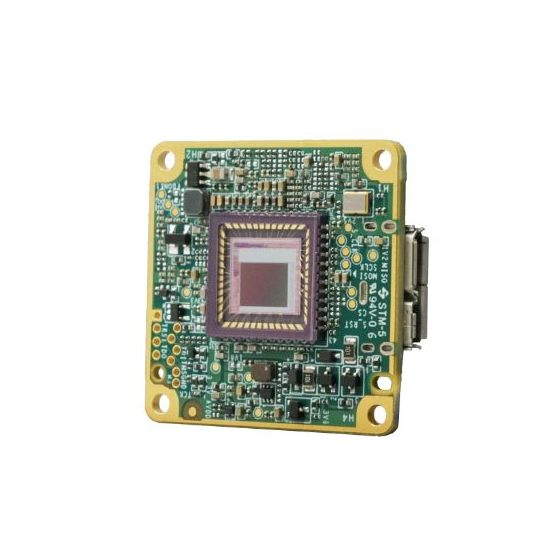

HIKROBOT Board Level Camera CB Series

4.8 μm, 201 fps @ 1280 × 1024, Mono, C-mount, USB 3.0

HIKROBOT Board Level Camera CB Series

The CB series board-level products is designed with a single board or multi-board stacked, which supports GigE or U3V protocol. It is applicable to the industrial, embedded, 3D, medical and other scenarios with more stringent space requirements.
Ultra-small size, flexible for application – with a compact size, the board-level camera series is easier to be integrated into end users’ product structures.

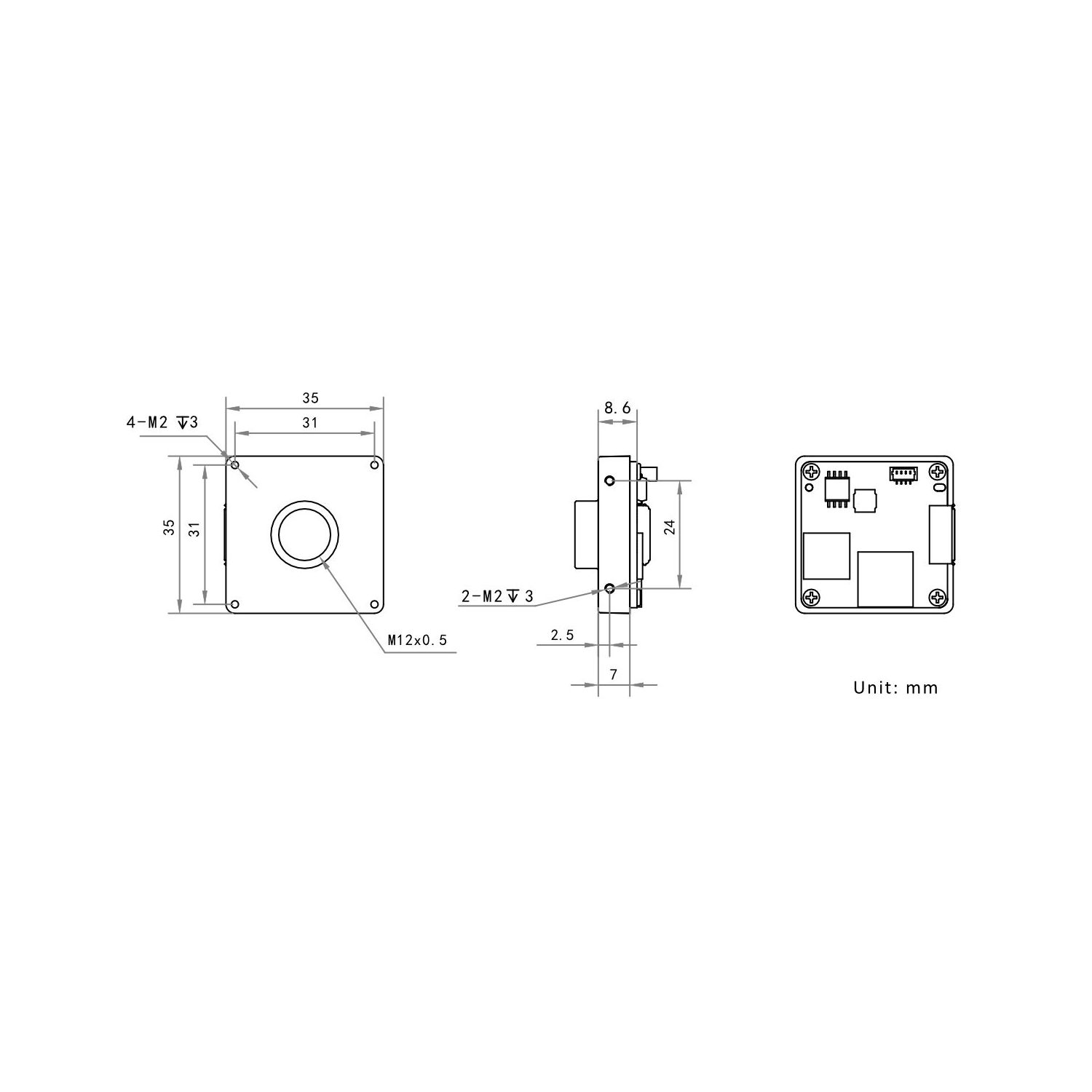

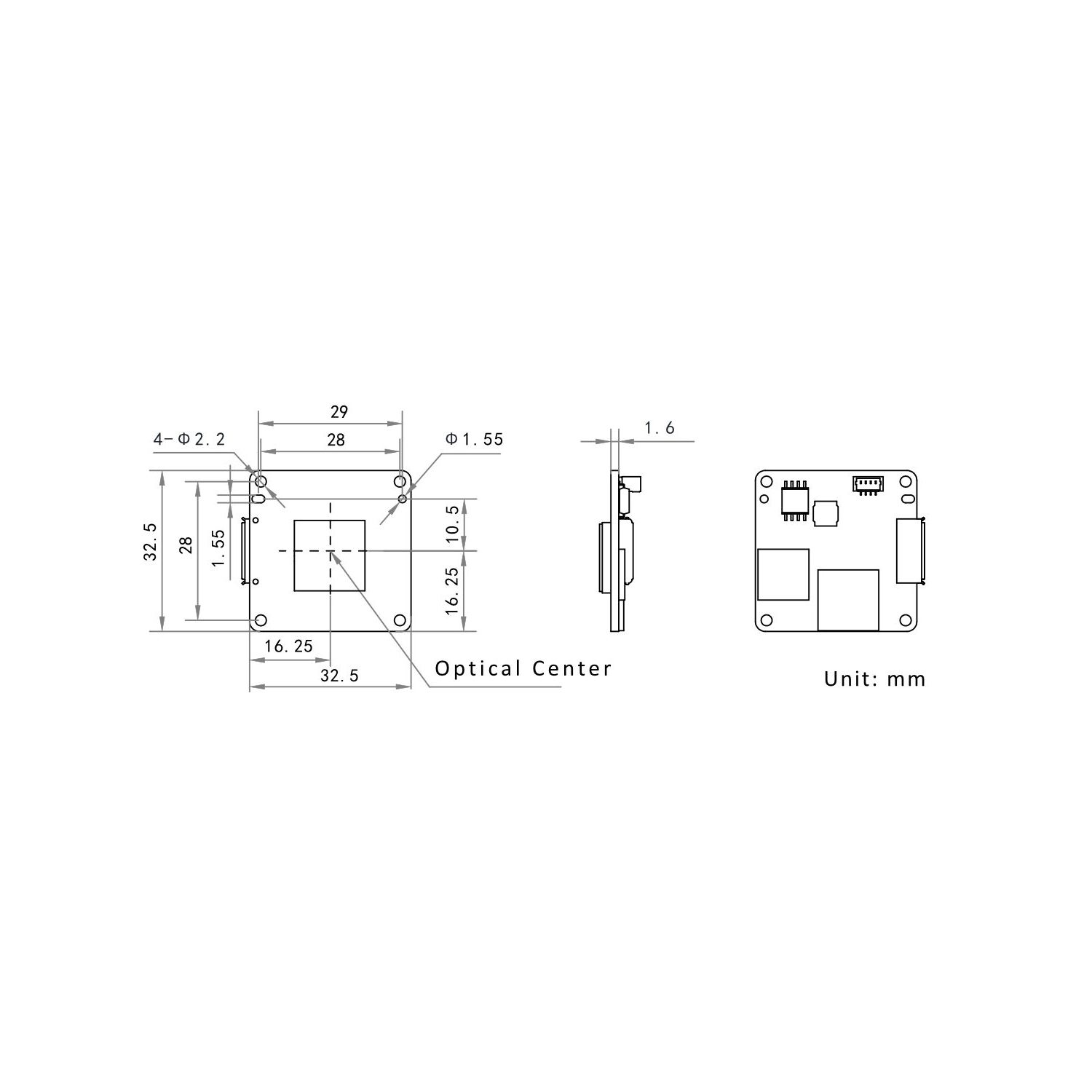

The board-level camera can support a variety of lens interface options, bare board (B), C interface (C) and M12 interface (S) to fulfill various requirements.

  • Compact design for flexible installation.
  • Supports auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT, etc.
  • Adopts image interpolation algorithm for color cameras to have better color correction.
  • Adopts USB3.0 interface to provide power supply and transmit data.
  • Compatible with USB3 Vision Protocol, GenlCam standard, and third-party software based on these protocol and standard.

ModelProduct ModelMV-CB013-A0UM-C
Type1.3MP Board Level Camera, USB3,ISG1307,Mono,C-mout
PerformanceSensor typeCMOS, global shutter
Pixel size4.8 μm × 4.8 μm
Sensor size1/2"
Resolution1280 × 1024
Max. frame rate201 fps @1280 × 1024
Dynamic range53 dB
SNR40 dB
Gain0 dB to 16 dB
Exposure time9 μs to 10 sec
Exposure modeOff/ Once/ Continuous exposure mode
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical featureData interfaceUSB3.0
Digital I/OBi-directional non-isolated I/O × 2 (Line 2, Line 5)
Power supplyUSB3.0 power supply
Power consumptionTyp. 1.6 W@5 VDC (USB3.0 provides power supply)

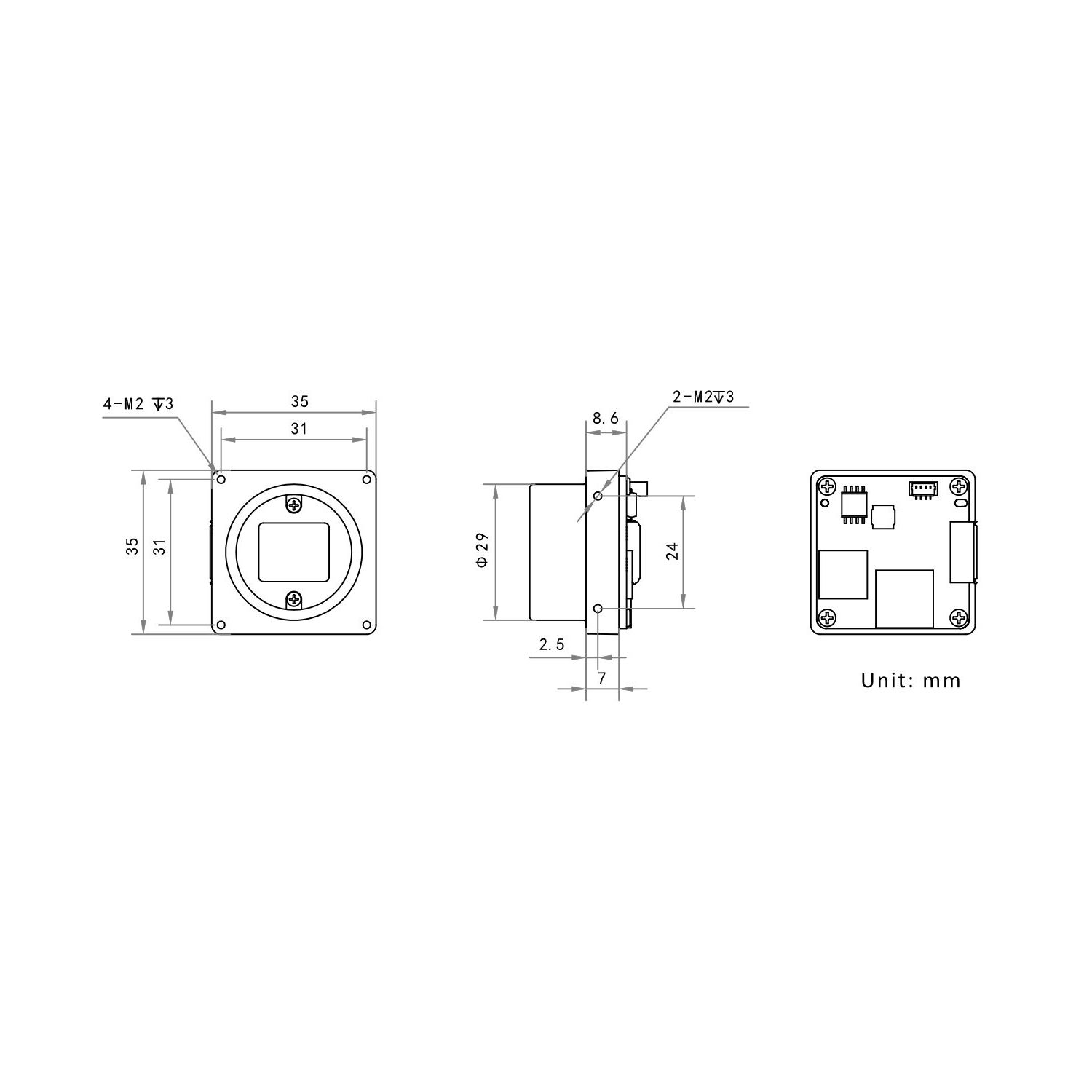

MechanicalLens mountC-mount
Dimension35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
WeightApprox. 30 g (0.07 lb.)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 80% RH, non-condensing
GeneralClient softwareMVS or third-party software compatible with USB3 Vision Protocol
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS
CompatibilityUSB3 Vision, GenICam
CertificationCE, FCC, RoHS, KC
