MV-CA050-10GM

HIKROBOT Area Scan Camera CA Series

3.45 μm, 24.1 fps@ 2448 × 2048, Mono, C-Mount, Gigabit

HIKROBOT Area Scan Camera CA Series

Covering 0.3-6M pixels, CA series equip GigE and USB3.0 interfaces, with a maximum frame rate of 814fps. Near-infrared enhanced camera model selectable, which can meet the visual application requirements of the near-infrared band (750-1100nm).
This series is mainly equipped with global shutter sensor, which can easily capture high-speed dynamic images and cover the needs in most applications; some models can support ultra-short exposures of 1μs, suitable for flying shooting and other Industries.

Product Downloads:

DrawingData SheetUser Manual

Compare
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
  • Up to 128 MB local memory for burst transmission and retransmission.
  • Supports hardware trigger, software trigger, etc.
  • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.

Model Product Model MV-CA050-10GM
Type 5MP Area Scan Camera, GigE,IMX265,Mono
Performance Sensor type CMOS, global shutter
Sensor model IMX264
Pixel size 3.45 μm × 3.45 μm
Sensor size 2/3″
Resolution 2448 × 2048
Max. frame rate 24.1 fps@ 2448 × 2048
Dynamic range 72 dB
SNR 40.2 dB
Gain 0 dB to 20 dB
Exposure time UltraShort exposure mode: 1 μs to 14 μsNormal exposure mode: 15 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Mono
Pixel format Mono 8/10/10p/12/12p
Binning Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4
Decimation Supports 1 × 1, 2 × 2
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface GigE
Digital I/O 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply 12 VDC, supports PoE
Power consumption Typ. 3.2 W@12 VDC
Mechanical Lens mount C-Mount

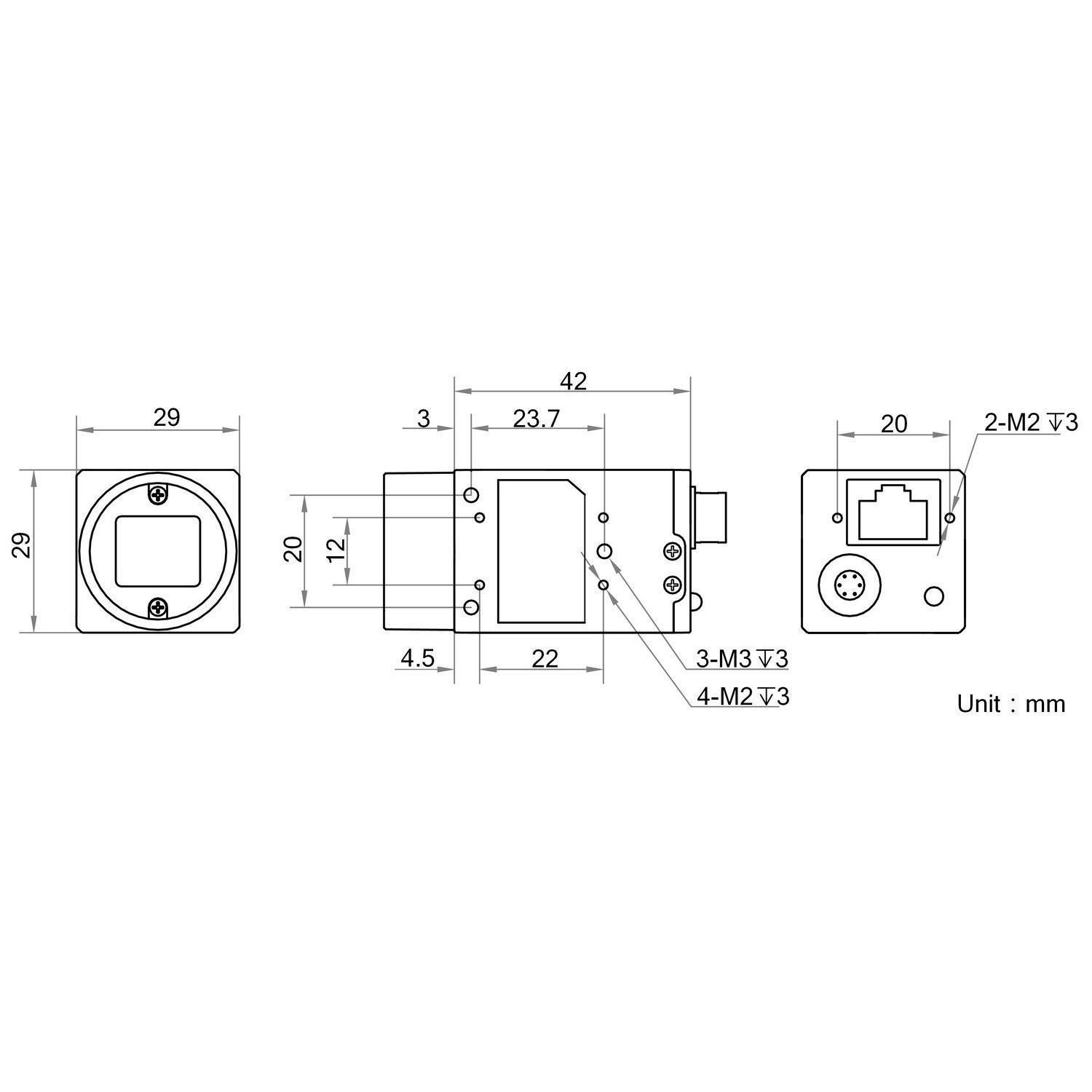

Dimension 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
Weight Approx. 68 g (0.15 lb.)
Ingress protection IP30 (under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 80% RH, non-condensing
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility GigE Vision V2.0, GenlCam
Certification CE, RoHS, KC
