MV-CA020-10UM

HIKROBOT Area Scan Camera CA Series

4.5 μm, 89.1 fps @ 1624 × 1240, Mono, C-Mount, USB 3.0/2.0

HIKROBOT Area Scan Camera CA Series

Covering 0.3-6M pixels, CA series equip GigE and USB3.0 interfaces, with a maximum frame rate of 814fps. Near-infrared enhanced camera model selectable, which can meet the visual application requirements of the near-infrared band (750-1100nm).
This series is mainly equipped with global shutter sensor, which can easily capture high-speed dynamic images and cover the needs in most applications; some models can support ultra-short exposures of 1μs, suitable for flying shooting and other Industries.

Product Downloads:

User ManualDrawingData Sheet

Compare
  • Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
  • Supports hardware triggering, software triggering and free run mode.
  • Adopts M2 screw holes for securing cable that connects USB3.0 interface.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Model Product Model MV-CA020-10UM
Type 2MP Area Scan Camera, USB3,IMX430,Mono
Performance Sensor type CMOS, global shutter
Sensor model IMX430
Pixel size 4.5 μm × 4.5 μm
Sensor size 1/1.7″
Resolution 1624 × 1240
Max. frame rate 89.1 fps @1624 × 1240
Dynamic range 75.4 dB
SNR 40 dB
Gain 0 dB to 24 dB
Exposure time 1 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Mono
Pixel format Mono 8/10/10p/12/12p
Binning Not support
Decimation Supports 1 × 1, 2 × 2
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface USB3.0
Digital I/O 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply 9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption Typ. 3.2 W@5 VDC(USB3.0 provides power supply)
Mechanical Lens mount C-Mount

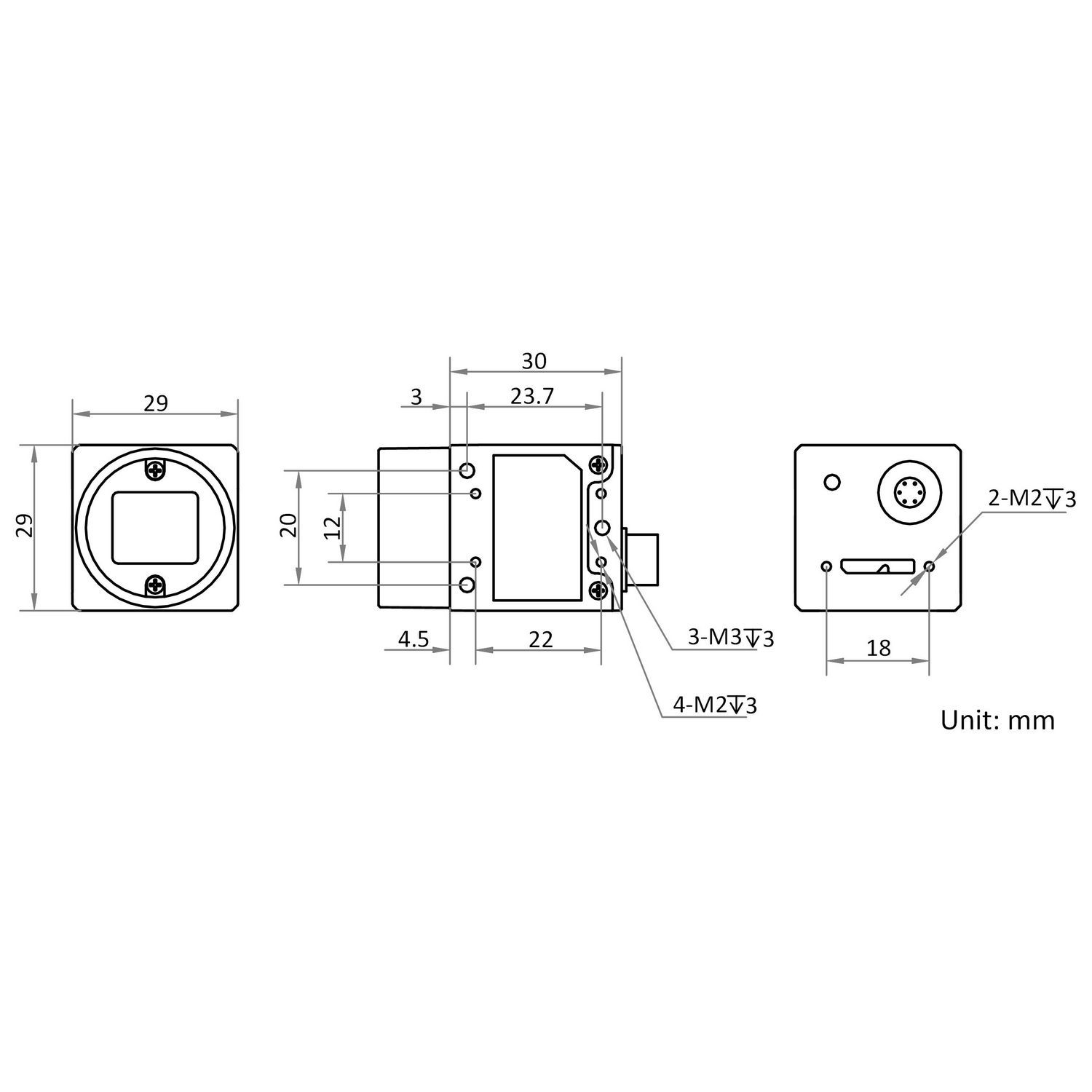

Dimension 29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
Weight Approx. 80 g (0.2 lb.)
Ingress protection IP30 (under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 80% RH, without condensation
General Client software MVS or third-party software meeting with USB3 Vision Protocol
Operating system 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility USB3 Vision, GenICam
Certification CE, FCC, RoHS, KC
