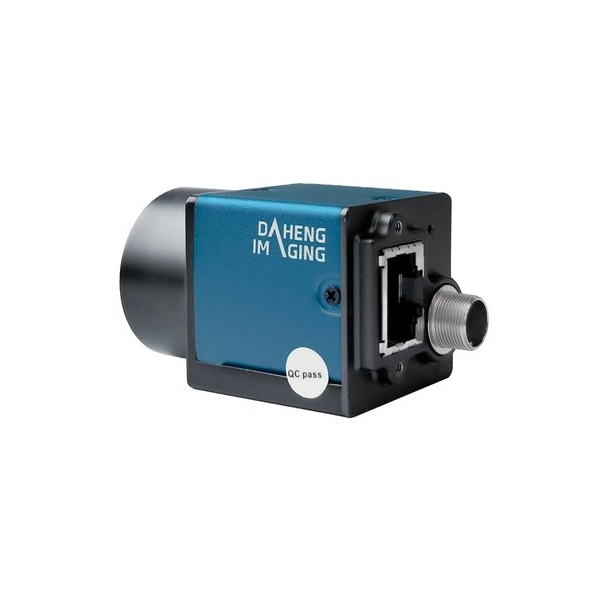

MER2-503-23GM

Ultra-small GigE industry digital camera

2/3", 23fps, 2448x2048, Mono, Global shutter, IMX264, GigE

The MERCURY2 GigE series (MER2-G) camera is DAHENG IMAGING’s new generation area scan industrial digital camera, featuring outstanding performance and compact design. The MER2-503-23GM/C camera is a monochrome/color GigE Vision camera with the Sony IMX264 CMOS sensor. The MER2-503-23GM/C camera has opto-isolated I/Os. The GPIOs give MER2-G maximum flexibility to adapt to specific needs. Thanks to the compact design (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments. The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

Compare
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Four acquisition controls: Single frame acquisition / Continuous acquisition / Software trigger acquisition / External trigger acquisition
  • Trigger mode: Frame Start /Frame Burst Start
  • Two exposure time modes: standard exposure time mode / minimal exposure time mode
  • Support Decimation, Binning, Reverse, Digital Shift, Black Level and Defect Pixel Correction
  • Adjustable Gamma and Sharpness for optimizing the brightness and sharpness of images
  • Programmable LUTs and storable user sets
  • Support Timer and Counter
  • Support Remove Parameter Limit to expand the range of exposure, gain, white balance, and so on
  • Adjustable packet-size and packet-delay, and reserved bandwidth
  • 16KB data storage area for saving algorithm coefficients and parameter configuration
  • Support ExposureEnd Event notification
  • Compatible with GenICam™ and GigE Vision®, can be used in a wide range of 3rd-party software such as HALCON, MERLIC and LabVIEW directly
  • Optimized software package for 32/64bit Windows, and support Linux, ARMv7, ARMv8 and Mac OS
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, GigE Vision
Spectral Response Data:


MER2-503-23 Spectral Response


MER2-503-23GC Spectral Response

SpecificationsMER2-503-23GMMER2-503-23GC
Resolution2448 (H) × 2048(V)
Frame Rate23.5 fps
Sensor Type2/3", global shutter, Sony IMX264
Pixel Size3.45 μm × 3.45 μm
SpectrumMonoColor
Pixel Data FormatsMono8/Mono10Bayer RG8/Bayer RG10
Data InterfaceRJ45
Power Consumption<3W
Power Supply12~24V DC
Lens MountC Mount
Dimensions (L × W × H)29mm × 29mm × 29mm (without lens adapter or connectors)
Operating Temp.0°C~+45°C
Storage Temp.-20°C ~ +70°C
Operating Humidity10% ~80%
Weight62g
RegulationsRoHS, CE, GigE Vision, GenICam
