MER2-302-37GM

Ultra-small GigE industry digital camera

1/1.8", 37fps, 2048x1536, Mono, Global shutter, IMX265, GigE

Ultra-small GigE industry digital camera

The MERCURY2 GigE series (MER2-G) camera is DAHENG IMAGING’s new generation area scan industrial digital camera. With improved built-in ISP algorithms, MER2-G series camera supports Decimation, Binning, Reverse, Black Level and more features. Providing multiple acquisition controls, the camera can adapt to various vision applications. The MER2-302-37GM/C camera is a monochrome/color GigE Vision camera with the Sony IMX265 CMOS sensor. The MER2-302-37GM/C camera has opto-isolated I/Os. The GPIOs give MER2-G maximum flexibility to adapt to specific needs. Thanks to the compact design (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments. The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

Compare
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Four acquisition controls: Single frame acquisition / Continuous acquisition / Software trigger acquisition / External trigger acquisition
  • Trigger mode: Frame Start /Frame Burst Start
  • Support ExposureEnd Event notification
  • Programmable LUTs and storable user sets
  • Support Decimation, Binning, Reverse and Black Level
  • Support Timer and Counter
  • Support Remove Parameter Limit to expand the range of exposure, gain, white balance, and so on
  • 16KB data storage area for saving algorithm coefficients and parameter configuration
  • Exposure delay effectively reduces the effect of the strobe delay
  • Robust full metal housing and optional lockable devices
  • Compatible with GenICam™ and GigE Vision®, support 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, ARMv7 and ARMv8
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, GigE Vision
Spectral Response Data:

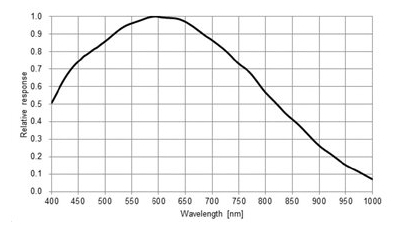

MER2-302-37GM Spectral Response

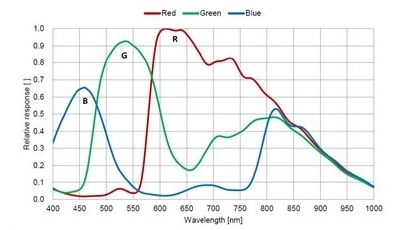

MER2-302-37GC Spectral Response

SpecificationsMER2-302-37GMMER2-302-37GC
Resolution2048 (H) × 1536 (V)
Frame Rate37.4 fps
Sensor Type1/1.8", global shutter, Sony IMX265
Pixel Size3.45 μm × 3.45 μm
SpectrumMonoColor
Pixel Data FormatsMono8/Mono10Bayer RG8/Bayer RG10
Data InterfaceGigE
Power Consumption<3W
Power Supply12~24V DC
Lens MountC Mount

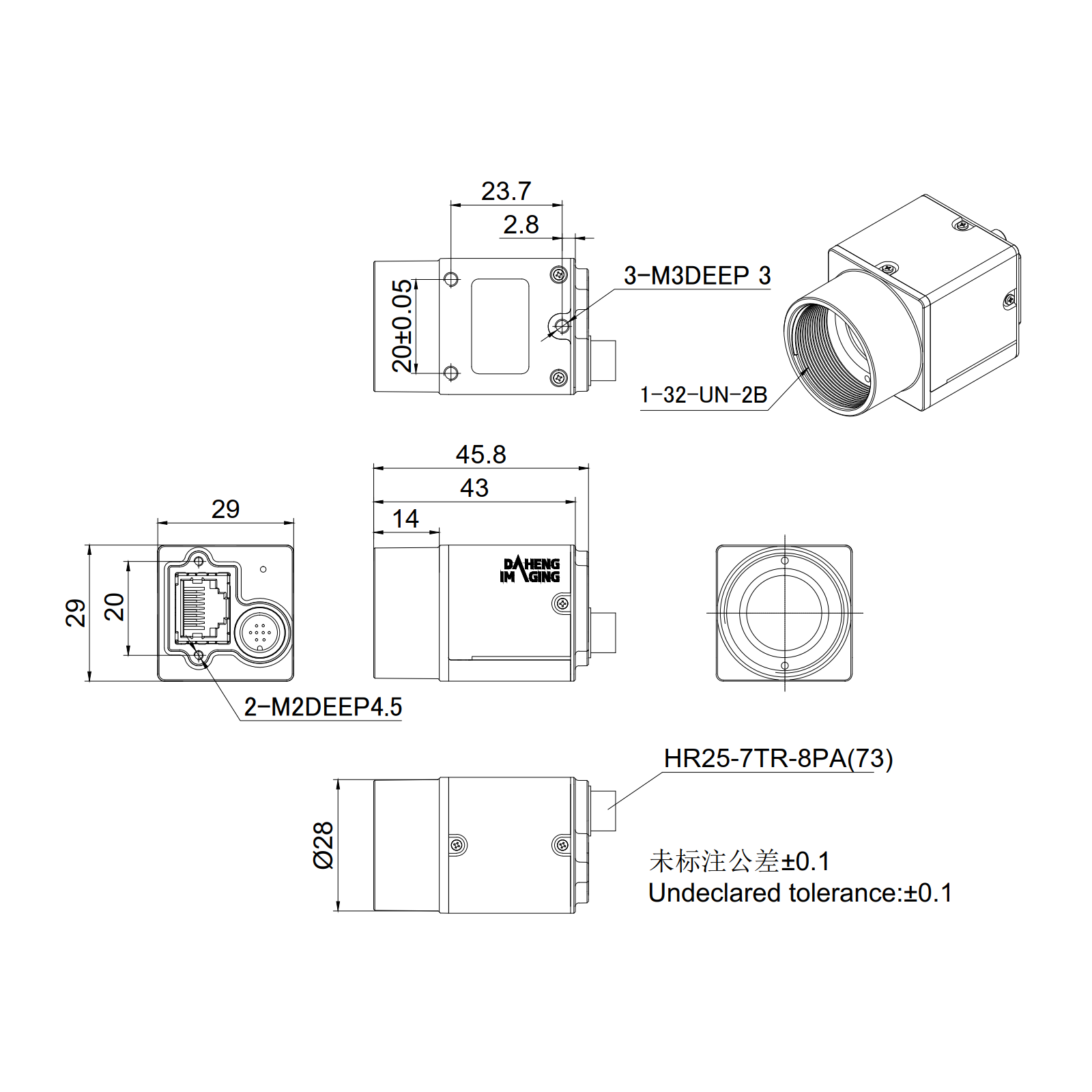

Dimensions (L × W × H)29mm × 29mm × 29mm (without lens adapter or connectors)
Operating Temp.0°C~+45°C
Storage Temp.-20°C ~ +70°C
Operating Humidity10% ~80%
Weight62g
RegulationsRoHS, CE, GigE Vision, GenICam
