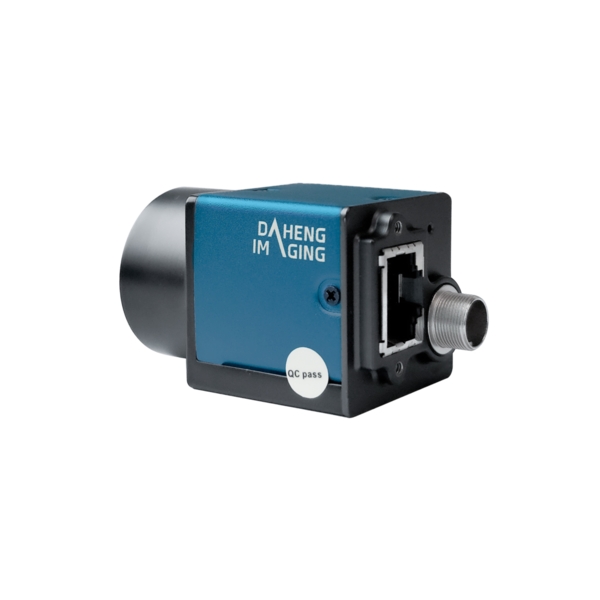

MER2-202-60GC

DAHENG Ultra-small GigE industry digital camera

1/1.8", 60fps, 1600x1200, Color, Global shutter, EV76C570, GigE

DAHENG Ultra-small GigE industry digital camera

The MERCURY2 GigE series (MER2-G) camera is DAHENG IMAGING’s new generation area scan industrial digital camera, featuring outstanding performance, compact design and extremely low noise. The MER2-202-60GM/C camera is a monochrome/color GigE Vision camera with the Teledyne e2v EV76C570 CMOS sensor. The MER2-202-60GM/C camera has opto-isolated I/Os. The GPIOs give MER2-G maximum flexibility to adapt to specific needs. Thanks to the compact design (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments. The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

Compare
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Three acquisition controls: Continuous acquisition/ Software trigger acquisition/ External trigger acquisition
  • Support ExposureEnd Event notification
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable packet-size and packet-delay, and reserved bandwidth
  • Programmable LUTs and storable user sets
  • Robust full metal housing and optional lockable devices
  • Long cable lengths: up to 100 m (without any hubs, repeaters etc.)
  • Compatible with GenICam™ and GigE Vision®, support 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, ARMv7 and ARMv8
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, GigE Vision
Spectral Response Data:


MER2-202-60GM Spectral Response


MER2-202-60GC Spectral Response

SpecificationsMER2-202-60GMMER2-202-60GC
Resolution1600 (H) × 1200 (V)
Frame Rate60 fps
Sensor Type1/1.8", global shutter, Teledyne e2v EV76C570
Pixel Size4.5 μm × 4.5 μm
SpectrumMonoColor
Pixel Data FormatsMono8/Mono10Bayer RG8/Bayer RG10
Data InterfaceGigE Vision
Power Consumption<3W
Power Supply12~24V DC
Lens MountC Mount
Dimensions (L × W × H)29mm × 29mm × 29mm (without lens adapter or connectors)
Operating Temp.0°C~+45°C
Storage Temp.-20°C ~ +70°C
Operating Humidity10% ~80%
Weight62g
RegulationsRoHS, CE, GigE Vision, GenICam
