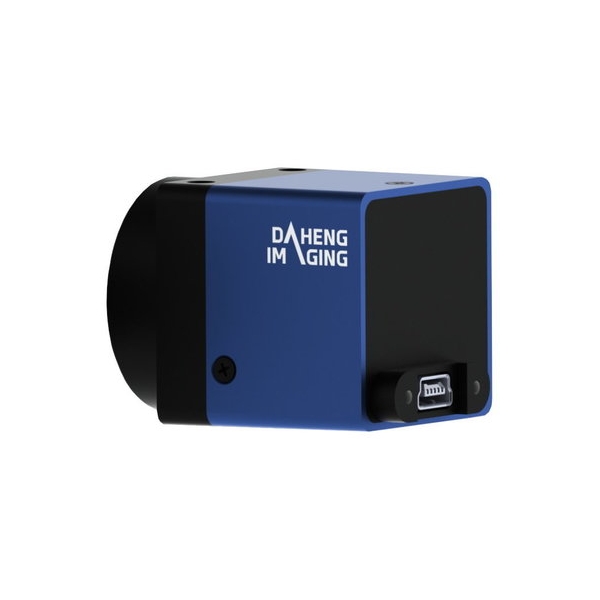

MER-130-30UM-L

Ultra-small USB industrial digital camera

1/1.8", 30fps, 1280x1024, Mono, Rolling shutter, MT9M001, USB

Ultra-small USB industrial digital camera

The MERCURY USB2.0 series (MER-U-L) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise and compact design. The MER-130-30UM-L camera is a monochrome USB camera with the Onsemi MT9M001 CMOS sensor. Thanks to the extremely compact (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments. The MER-130-30UM-L camera is powered over the USB interface. Compared to the MER-130-30UM, the MER-130-30UM-L has no I/O interfaces, so it is lighter and handier. The camera has an outstanding price/performance ratio. The MERCURY USB2.0 series camera is especially suitable for machine vision applications such as surface inspection, alignment, defect detection, measurement, OCR, bar code and data code reading and so on. They are also suitable for desktop applications, such as microscope and documents imaging.

Compare
  • Programmable ROI (region of interest), increased frame rate with partial scan
  • Gain and exposure programmable
  • Two acquisition controls: Continuous acquisition / Software trigger acquisition
  • Programmable acquisition speed level, optimize multi-cameras work simultaneity
  • Built-in encryption circuitry
  • Robust full metal housings and optional lockable devices
  • Hot plugging available
  • Compatible with GenICam™, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam

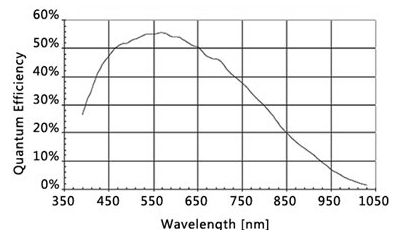

Spectral Response Data:


MER-130-30UM-L Spectral Response

Specifications MER-130-30UM-L
Resolution 1280(H) × 1024(V)
Frame Rate 30fps @ 1280 × 1024
Sensor Type 1/1.8″ Onsemi MT9M001 rolling shutter CMOS
Pixel Size 5.2 μm × 5.2 μm
Spectrum Mono
Pixel Data Formats Mono8/Mono10
Data Interface USB2.0
Power Consumption <1W
Lens Mount C Mount
Dimensions (L × W × H) 29mm × 29mm × 29mm (without lens adapter or connectors)
Operating Temp. 0°C~60°C
Operating Humidity 10%~80%
Weight 40g
Regulations RoHS, CE
