DAHENG Large sensor USB 3.0 industrial digital camera

1.1", 23fps, 4096x3000, Mono, Global shutter, IMX304, USB3.0

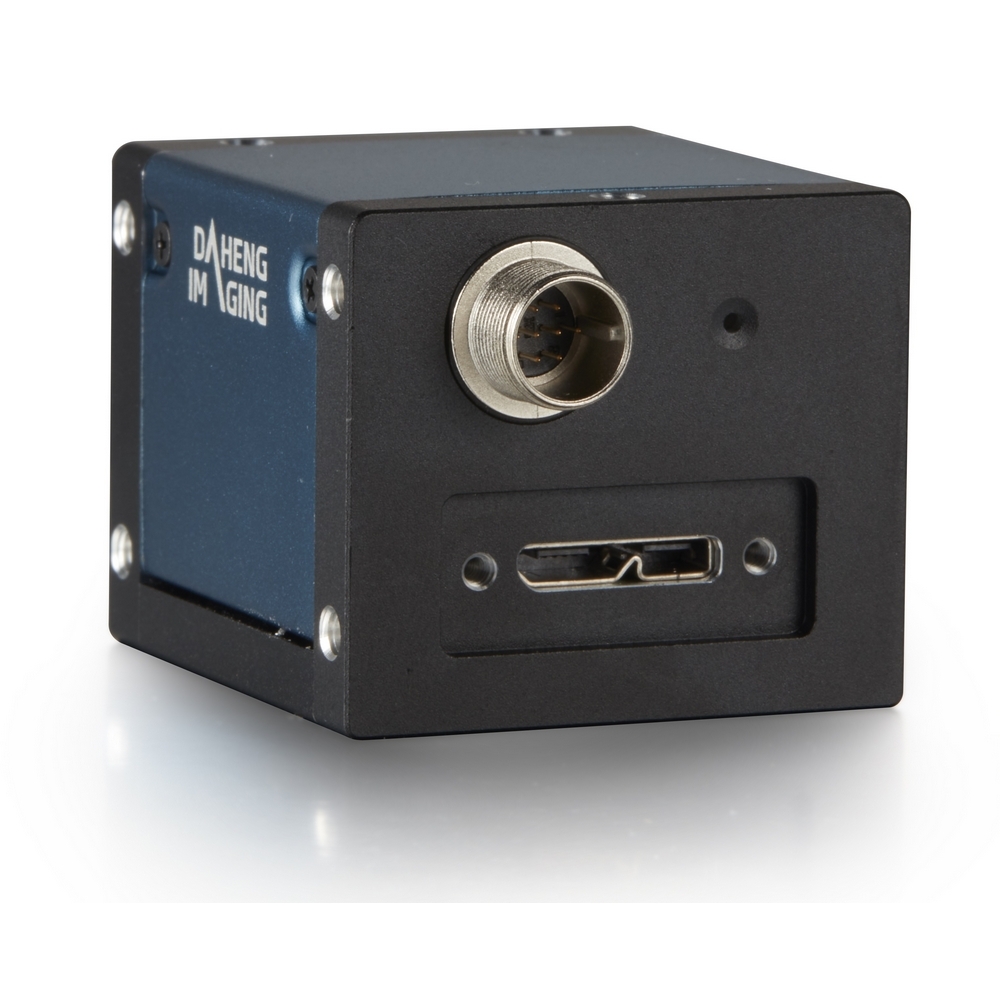

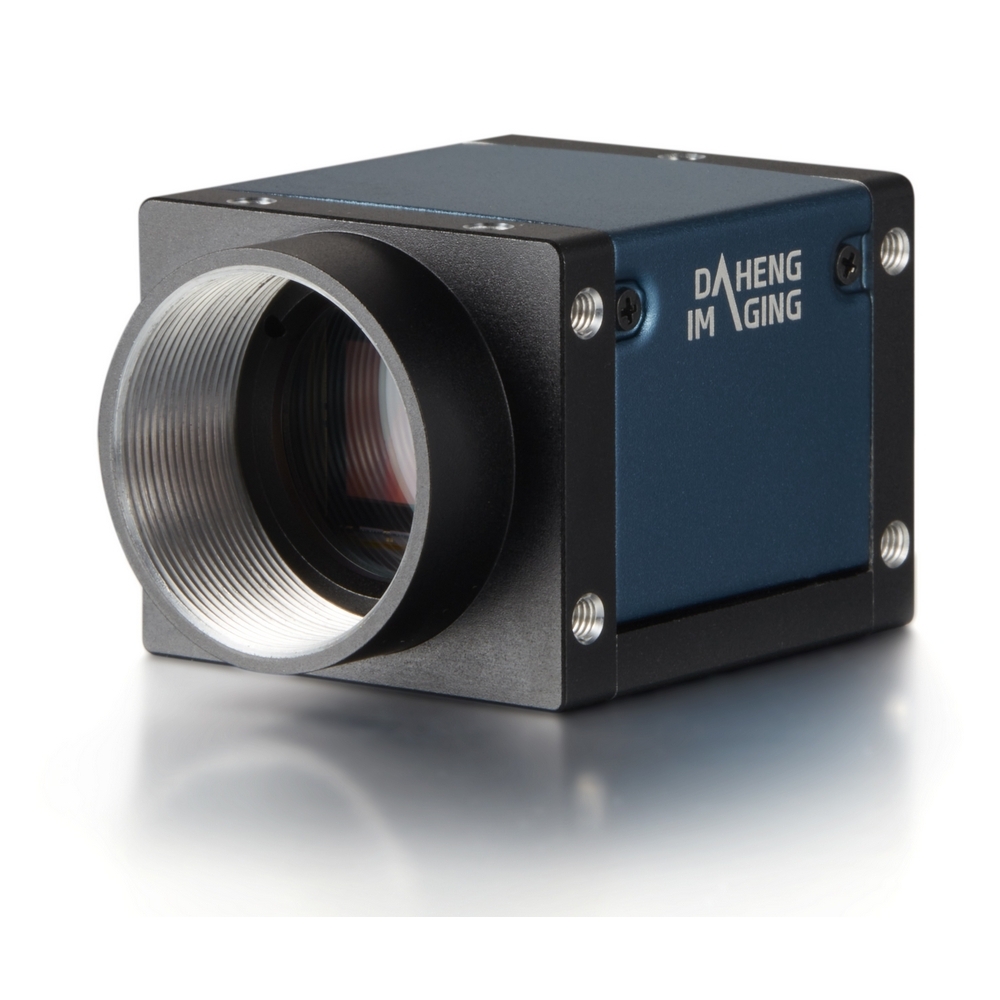

DAHENG Large sensor USB 3.0 industrial digital camera

The MERCURY2 PRO USB3.0 series (ME2P-U3) camera is DAHENG IMAGING’s large sensor industrial digital camera, supporting Decimation, Binning, Gamma, Color Enhancement, Reverse, Digital Shift, Black Level and more features. Providing multiple acquisition controls, the camera can adapt to various vision applications. ME2P-1230-23U3M/C is a monochrome/color USB3 Vision camera with the Sony IMX304 CMOS sensor. The ME2P-1230-23U3M/C camera has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for ME2P-U3 cameras. Thanks to the extremely compact design (36mm × 31mm × 38.8mm) and the locking screw connectors, the MERCURY2 PRO series cameras can secure the reliability of cameras deployed in harsh environments. Featuring compact design, outstanding performance, ease of installation and use, the MERCURY2 PRO cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Four acquisition controls: Single frame acquisition / Continuous acquisition / Software trigger acquisition / External trigger acquisition
  • Trigger mode: Frame Start / Frame Burst Start
  • Support LUTs and storable user sets
  • Support Decimation, Binning, Reverse, Digital Shift, Black Level and Defect Pixel Correction
  • Support Color Enhancement for improving image quality (only for color models)
  • Adjustable Gamma and Sharpness for optimizing the brightness and sharpness of images
  • Support Timer and Counter
  • 16KB data storage area for saving algorithm coefficients, parameter configuration, and so on
  • Provide mounting holes on four surfaces for flexible installation
  • Compatible with GenICam™ and USB3 Vision®, support 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, Android, ARMv7 and ARMv8
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, USB3 Vision
Spectral Response Data:

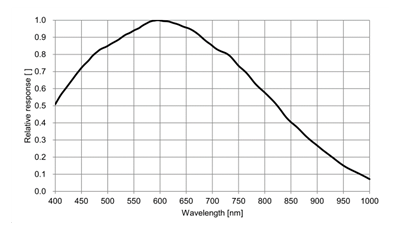

ME2P-1230-23U3M Spectral Response

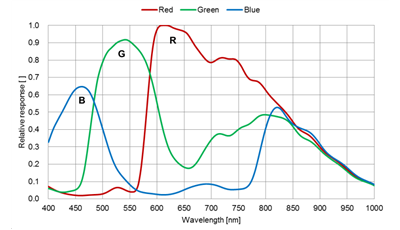

ME2P-1230-23U3C Spectral Response

Specifications ME2P-1230-23U3M ME2P-1230-23GC
Resolution 4096(H) × 3000(V)
Frame Rate 23.5fps
Sensor Type 1.1″ Sony IMX304 global shutter CMOS
Pixel Size 3.45 μm × 3.45 μm
Spectrum Mono Color
Pixel Data Formats Mono8/Mono12 Bayer RG8/Bayer RG12
SNR 40.47dB 40.59dB
Data Interface USB3.0
Power Consumption <3.5W@5V
Lens Mount C-Mount

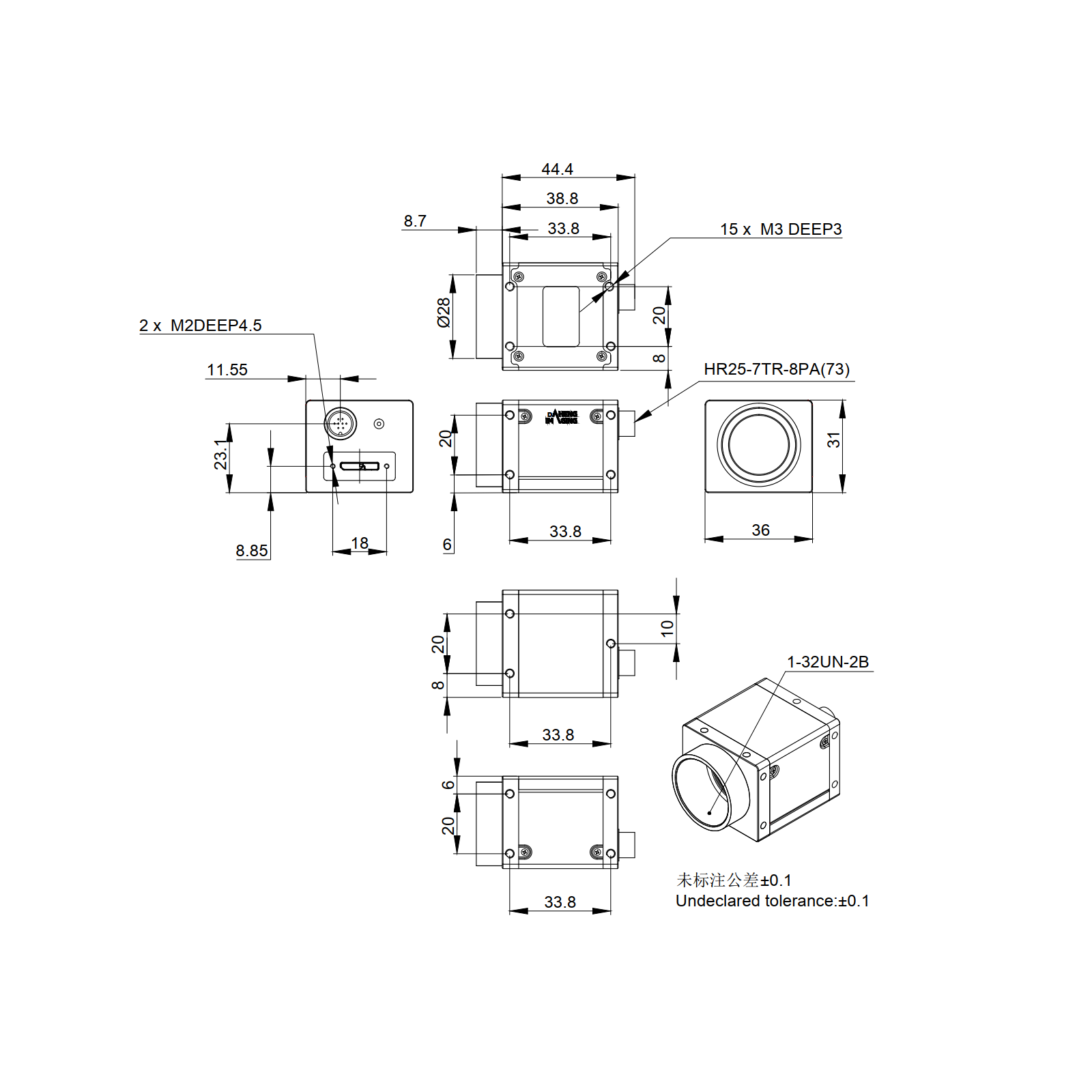

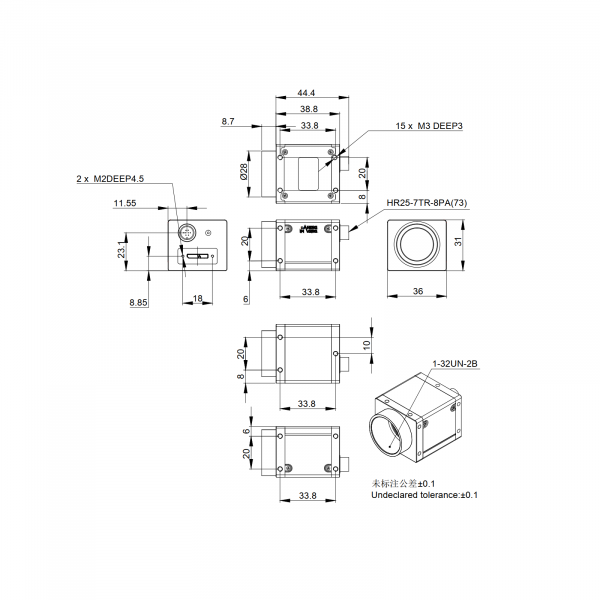

Dimensions (L × W × H) 36mm × 31mm × 38.8mm (without lens adapter or connectors)
Operating Temp. 0°C~+45°C
Operating Humidity 10%~80%
Weight 66g
Regulations RoHS, CE, USB3 Vision, GenICam
