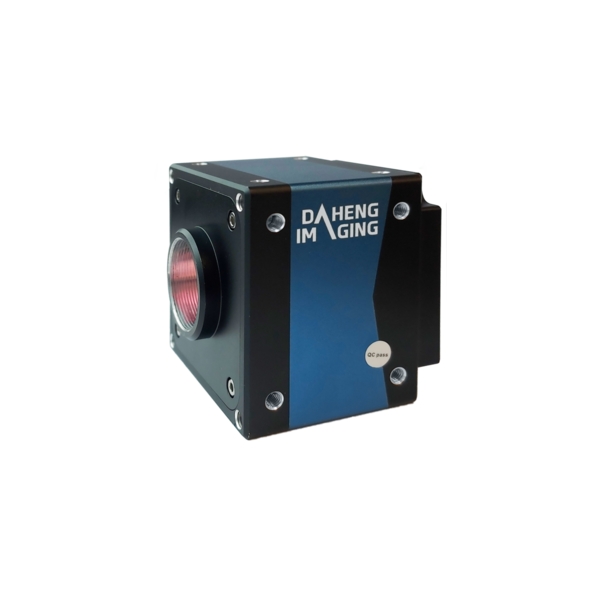

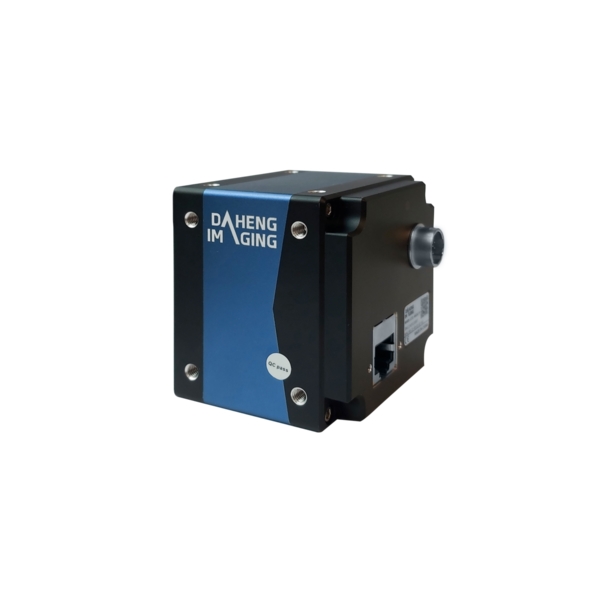

DAHENG High speed PoE industrial digital camera

1.1", 46fps, 4096x3000, Color, Global shutter, IMX253, GigE, PoE

DAHENG High speed PoE industrial digital camera

The MARS 5GigE series (MARS-G5-P) camera is DAHENG IMAGING’s high bandwidth industrial digital camera, featuring high resolution, high definition and low noise.

MARS-1231-46G5M/C-P is a monochrome/color GigE Vision camera with the Sony IMX253 CMOS sensor. The MARS-1231-46G5M/C-P camera is capable of 5Gbit/s maximum transfer data rate, can be powered over Ethernet and has opto-isolated I/Os that adapt to specific needs. Thanks to the locking screw connectors, the MARS series cameras can secure the reliability of cameras deployed in harsh environments.

Featuring compact design, outstanding performance, ease of installation and use, the MARS cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

  • Power over Ethernet (IEEE802.3af compliant)
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Four acquisition controls: Single frame acquisition / Continuous acquisition / Software trigger acquisition / External trigger acquisition
  • Support storable user sets
  • Support Decimation
  • Support Black Level to adjust the brightness of images
  • Support Defect Pixel Correction
  • Adjustable packet-size and packet-delay, and reserved bandwidth
  • The maximum transfer rate is up to 5Gbit/s and can be switched to 1Gbit/s and 2.5Gbit/s
  • Compatible with GenICam™ and GigE Vision®, support 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, ARMv7 and ARMv8
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, GigE Vision, IEEE802.3af (PoE)
Spectral Response Data:

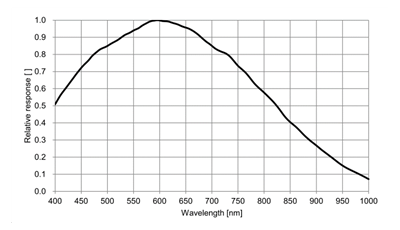

MARS-1231-46G5M-P Spectral Response

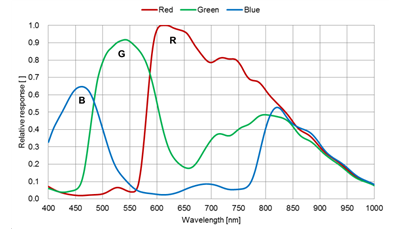

MARS-1231-46G5C-P Spectral Response

Specifications MARS-1231-46G5M-P MARS-1231-46G5C-P
Resolution 4096(H) × 3000(V)
Frame Rate 46fps
Sensor Type 1.1″ Sony IMX253 global shutter CMOS
Pixel Size 3.45 μm × 3.45 μm
Spectrum Mono Color
Pixel Data Formats Mono8/Mono10 Bayer RG8/Bayer RG10
SNR 40.68dB 40.79dB
Data Interface 5GigE
Power Consumption <9W @12VDC, <10.5W @PoE
Lens Mount C-Mount
Dimensions (L × W × H) 53.2mm × 62mm × 62mm (without lens adapter or connectors)
Operating Temp. 0°C~+45°C
Operating Humidity 10%~80%
Weight 305g
Regulations RoHS, CE, GigE Vision, GenICam,IEEE802.3af
