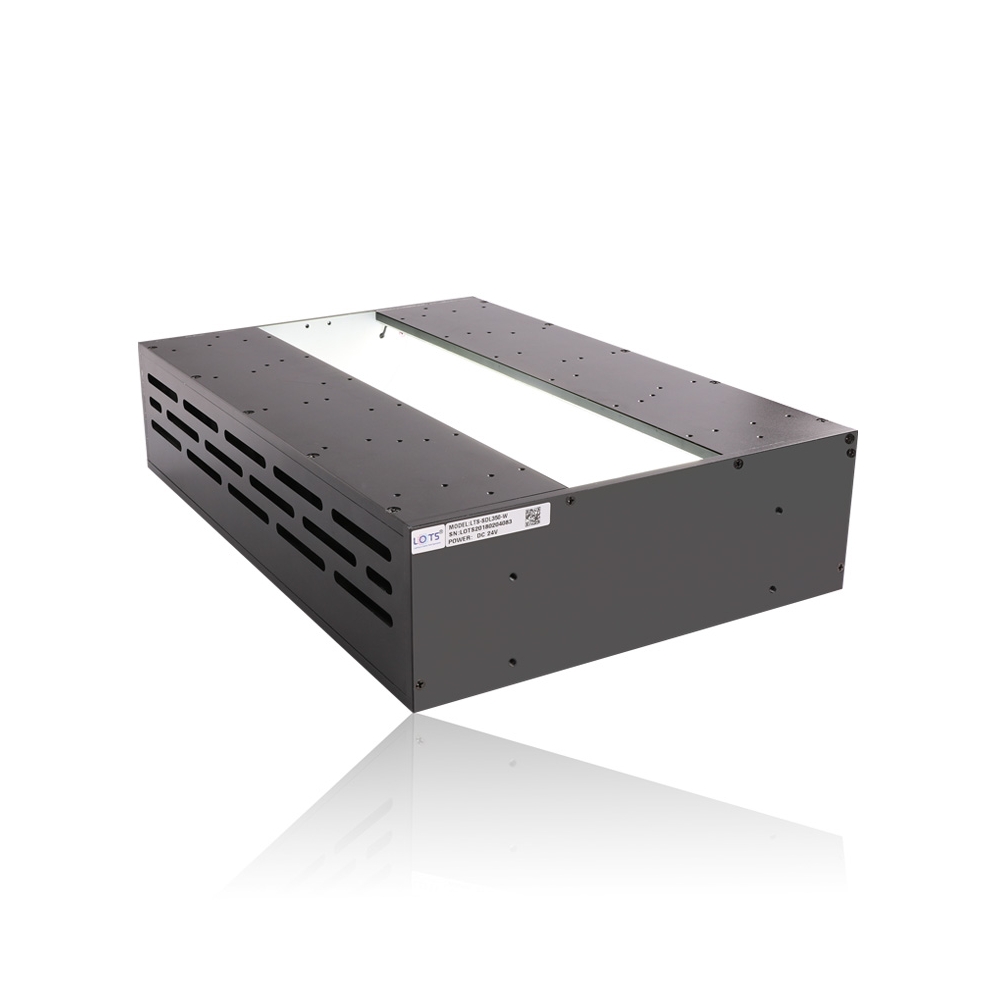

LTS-SDL1000-W

Tunnel Line Scan Light Flash Catalog

L1126xW245xH88.7 mm, 48V, 807W, WHITE

Tunnel Line Scan Light Flash Catalog

High power LEDs and special thermal design is adopted to get high intensity and uniformity. The SDL light is suitable for inspecting of reflective objects and works with coaxial line light to inspect PCB.

Features:
  • Good parallelism, high luminance
  • Compact, stability, durable structure
  • Used for inspecting workpiece which need uniform surface, and used with line scan camera
  • Fan cooling
SKU: LTS-SDL1000-W Categories: ,
Compare
Applications:
  • PCB printing inspection
  • Vacuum packing inspection
  • Metal surface inspection
  • Glass surface gloss inspection
Illumination property diagram / Distribution of relative irradiance (LTS-SDL350-W model):
Imaging instance - reflective package character print inspection:
Applications:

Coding rules:

(Use the color circles below to get to the specific variant of the products)

Model Color Dimension Voltage Power
LTS-SDL120-R/BGW / L245xW189xH88.7(mm) 24V 135W
LTS-SDL200-R/BGW / L269xW245xH88.7(mm) 24V 168W
LTS-SDL260-R/BGW / L374.5xW245xH89(mm) 24V 353W
LTS-SDL350-R/BGW / L414.5xW245xH89(mm) 24V 336W
LTS-SDL420-R/BGW / L489xW245xH88.7(mm) 24V 336W
LTS-SDL500-R/BGW / L569xW245xH88.7(mm) 24V 470W
LTS-SDL23875-R/BGW / L250xW160xH136(mm) 24V 202W
LTS-SDL1000-R/BGW / L1126xW245xH88.7(mm) 48V 807W
* UV & IR light can be customized as required
