LTS-DML120-G

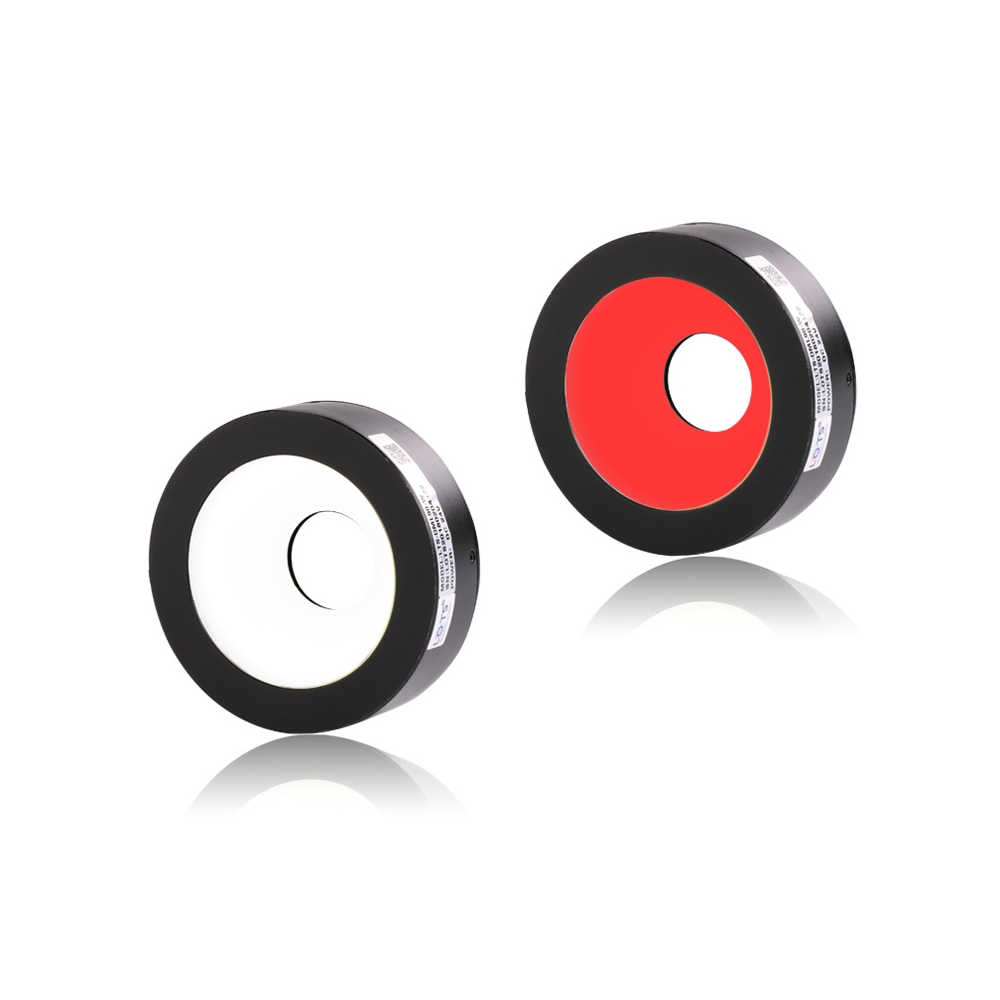

Milti-direction Shadowless Light Led Lights

Outer dia. φ120mm, Inner dia. φ40mm, Height 28mm, 24V, 3.1W, GREEN

Milti-direction Shadowless Light Led Lights

LED lamp is located in the side of the light vertically. The emitting light go through an arc diffuser plate, then get a high uniformity light ray. Can be used in the character recognization and location.

Features:
  • LED vertical direction, fasten to light side
  • Special diffuser, reflect ring illumination
  • Provide high uniform emitting to multi slope
SKU: LTS-DML120-G Categories: , ,
Compare
Applications:
  • Surface character and pattern recognition
  • Metal object edge location, measure inspection
Uniform Distribution (LTS-DML90-W model) & Uniformity (Relative irradiance):
Imaging instance: metal location:

Coding rules:

(Use the color circles below to get to the specific variant of the products)

Model Color Dimension Voltage Power
LTS-DML90-R/BGW / Outer dia. φ90mm, Inner dia. φ28mm, Height 28mm 24V 1.4W/2.4W
LTS-DML120-R/BGW / Outer dia. φ120mm, Inner dia. φ40mm, Height 28mm 24V 1.9W/3.1W
*UV & IR light can be customized as required.
