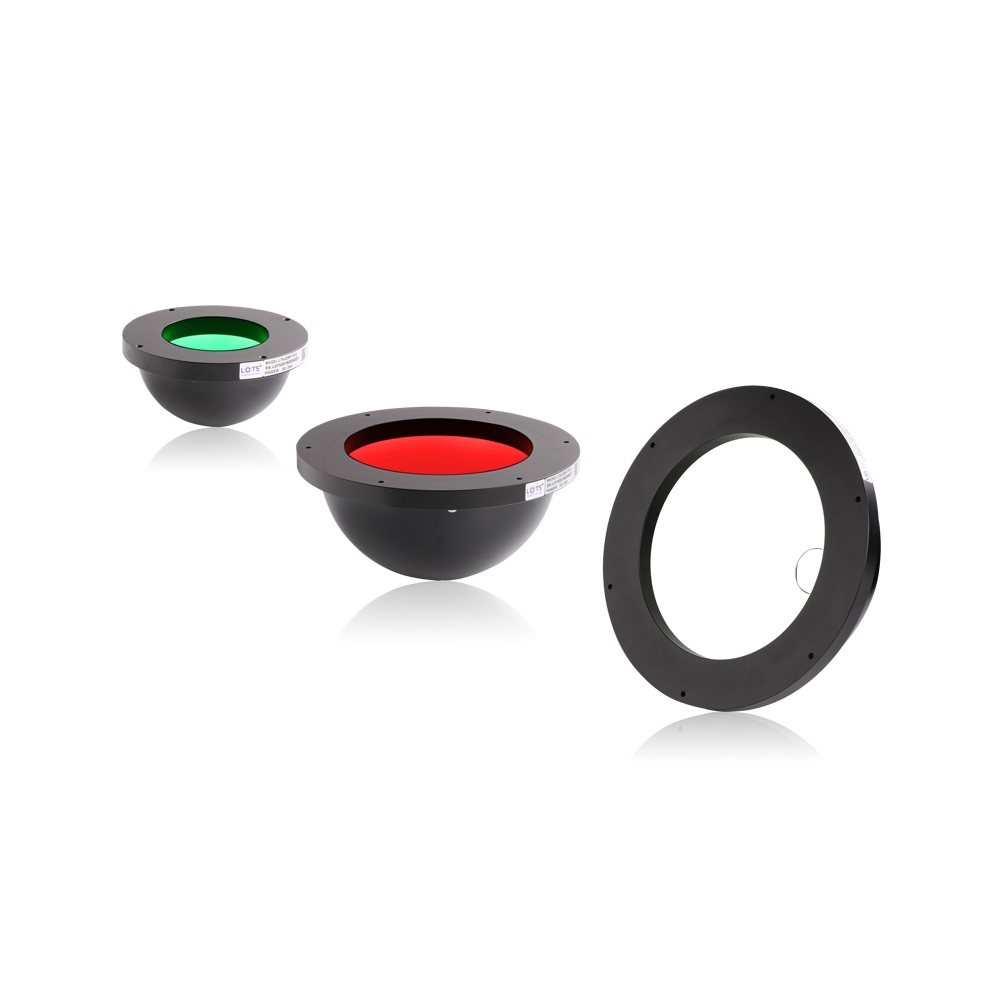

LTS-2DM198-B

Dome Shadowless Light Led Japan

Outer dia. φ198mm, Inner dia. φ30mm, Height 95.38mm, 24V, 22.1W, BLUE

Dome Shadowless Light Led Japan

Making full use of hemisphere diffuse reflection structure; can flash out high-uniformity and high-intensity light; suitable for the inspection of objects which is uneven and light-reflecting.

Features:
  • High uniformity, large emitting area.
  • Adopt lightweight design, high luminance.
  • Frame fixed method, more uniform stress, more fastness and more reliable when long time using.
  • Flexible outline, can be customized
SKU: LTS-2DM198-B Categories: , ,
Compare
Applications:
  • Reflect light, unflatness surface inspection.
  • IC surface character inspection.
  • Condenser surface defect inspection.
  • Ring-pull can defect inspection
Illumination property diagram (LTS-2DM116/DM100-W models) & Uniformity (Relative irradiance):
Effect contrast photograph:
Imaging instance: obvious dirty part:

Coding rules:

(Use the color circles below to get to the specific variant of the products)

Model Color Dimension Voltage Power
LTS-2DM116-R/BGW / Outer dia. φ116mm, Inner dia. φ25mm, Height 58.91mm 24V 7.7W/11.5W
LTS-2DM175-R/BGW / Outer dia. φ175mm, Inner dia. φ35mm, Height 83.33mm 24V 12.5W/13.0W
LTS-2DM198-R/BGW / Outer dia. φ198mm, Inner dia. φ30mm, Height 95.38mm 24V 13.4W/22.1W
LTS-2DM260-R/BGW / Outer dia. φ260mm, Inner dia. φ48mm, Height 125.9mm 24V 20.2W/30.2W
* UV & IR light can be customized as required.
