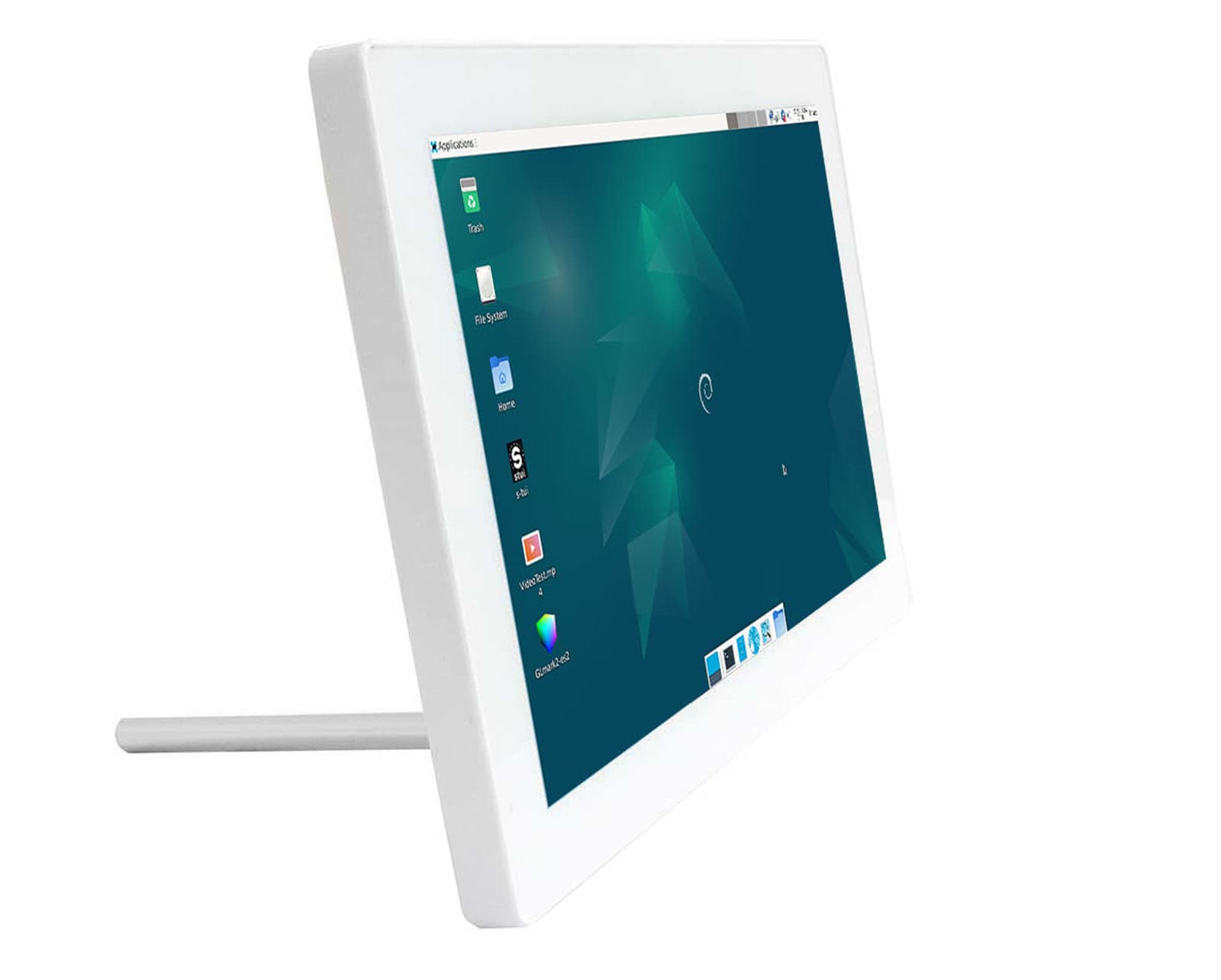

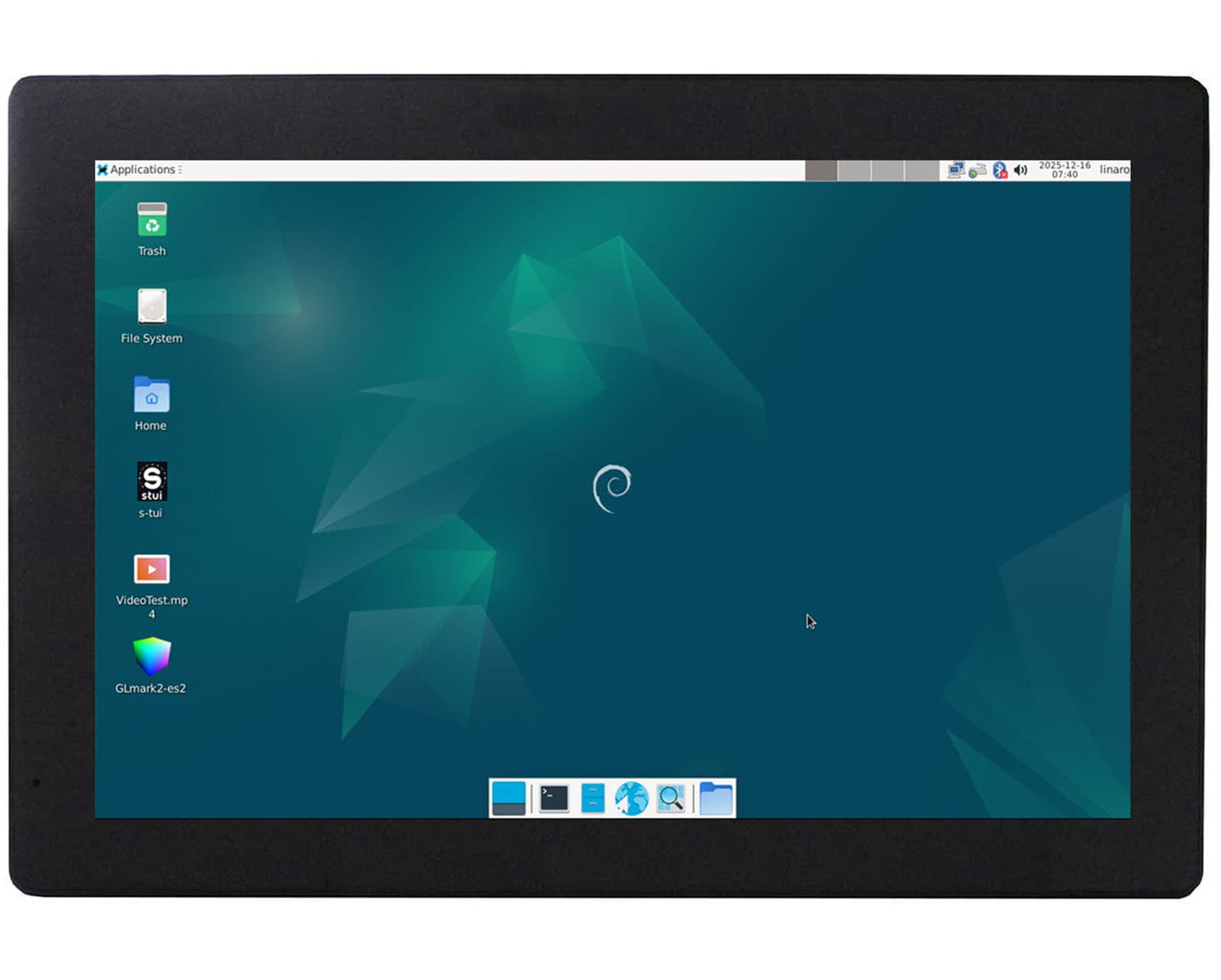

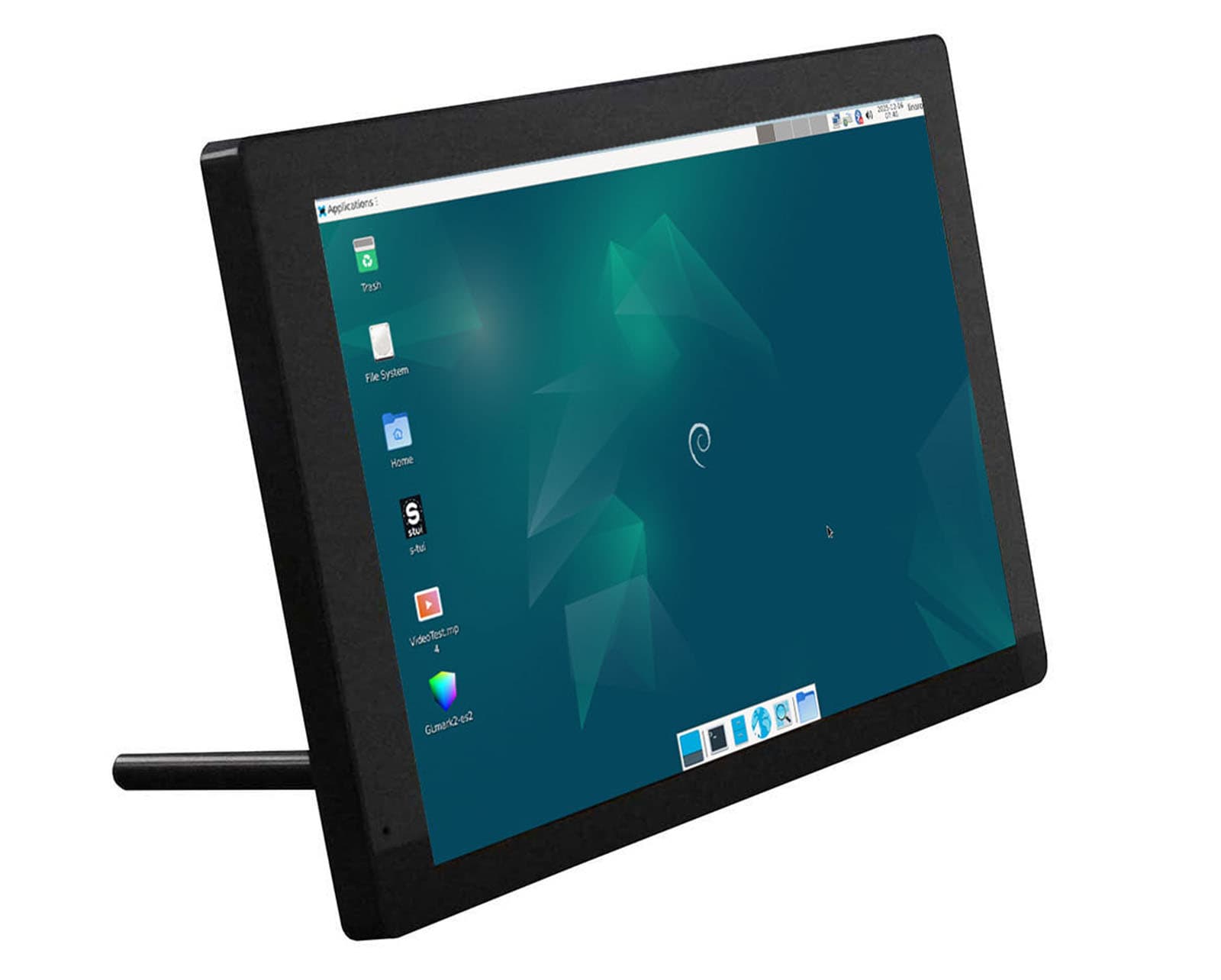

The AIO-RK3576-101 is a high-performance 10.1” all-in-one industrial panel PC designed for demanding embedded and edge computing applications. Powered by the Rockchip RK3576J processor, featuring Quad-core Cortex-A72 (1.6GHz) and Quad-core Cortex-A53 (1.4GHz), it delivers a strong balance of computing power and energy efficiency. Integrated with a 6 TOPS @ INT8 NPU, the system is well-suited for AI-driven edge processing and intelligent control tasks. The device features a 10.1” IPS display with 1280 × 800 resolution, 400 cd/m² brightness, and a 10-point capacitive multi-touch panel protected by 1.0mm armored glass. Its lightweight plastic enclosure, available in black or white, allows easy installation as a smart control center in industrial, commercial, or automation environments. The AIO-RK3576-101 is well-suited for Human Machine Interface (HMI) systems, edge AI applications, process control and monitoring, IIoT nodes, environmental monitoring systems, PLC integration, automotive applications, and smart home control solutions.
Specifications
- SKU
- CS12800-RK3576-101A
- Net weight
- 620 g
- Form-factor
- All-In-One
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- M.2
- M.2 2230/2242 M-key, PCIe Gen 3.0 x1 (optional)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Storage
- Internal M.2 NVMe connector for SSD card (optional); MicroSD Card
- Micro SD card socket
- 1 x TF(micro SD) card slot
- Display size
- 10.1"
- Display resolution
- 1280*800
- Brightness
- 400 NIT
- Touch Screen
- Capacitive

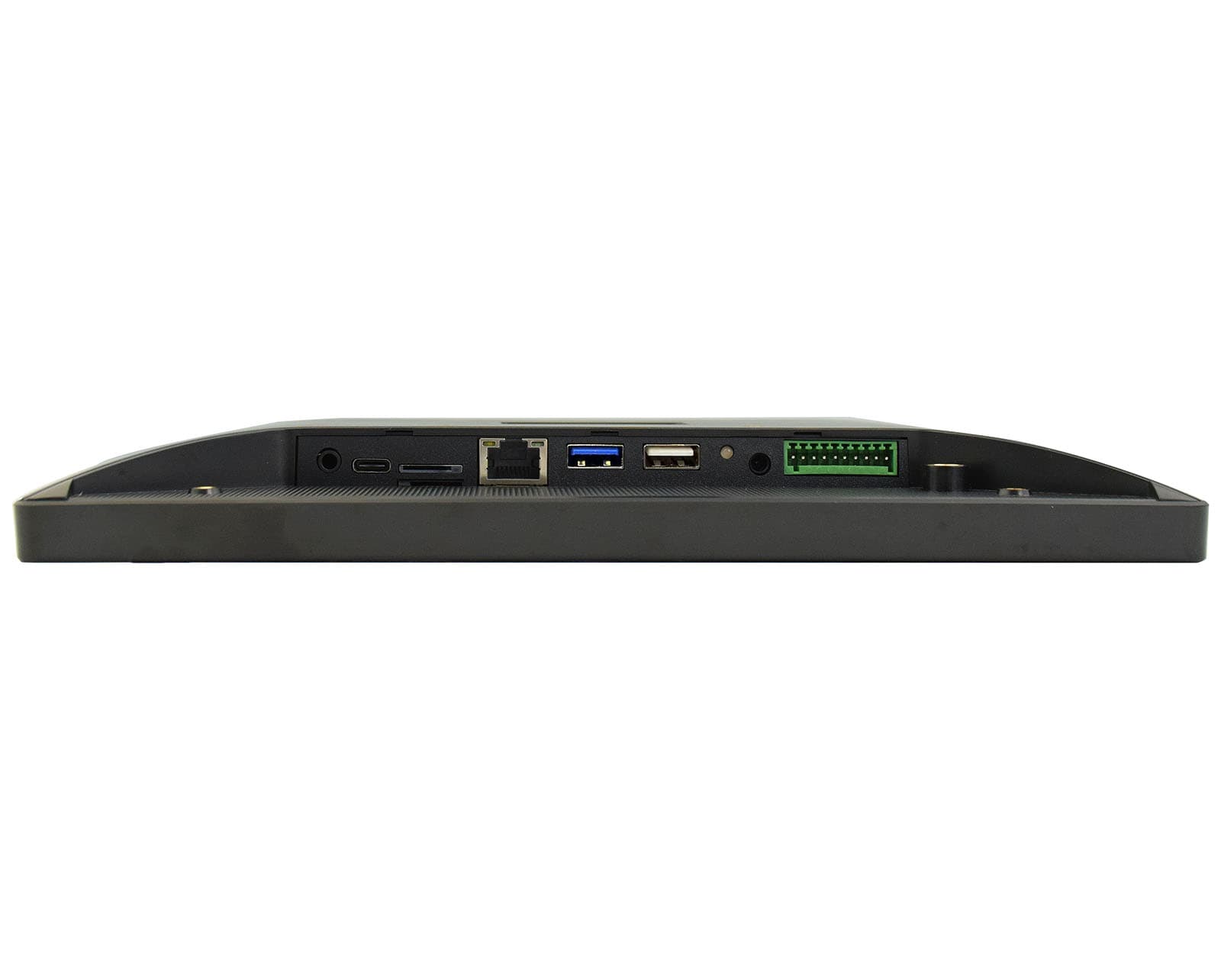

- USB
- (USB-C can’t be used together with USB-A 3.0 port); 1 x USB 2.0 type-A Host; 1 x USB 3.0 type-A Host; 1 x USB Type-C OTG
- CAN
- 0 x CAN by default; 1 x CAN FD BUS is optional. Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps.
- GPIO
- Not supported
- HDMI
- Not supported
- RS232
- 2 x RS232
- RS485
- 1 x RS485 by default; up to 2 x RS485 (optional)
- Relay
- 1 x relay with “Normally Connected” and “Normally Open” output
- Ethernet
- (no support for PoE); 1 x Giga LAN
- WiFi/BT
- YES
- 4G
- Optional
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- Onboard, driven by GPIO
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- 15-30V DC
- Power Consumption
- 7.5W typical; 9W Max
- Working Temperature
- -20°C ~ 70°C.
- Current at 15V
- 500mA typical; 600mA Max
- Operating System
- Android; Buildroot; Debian; Ubuntu

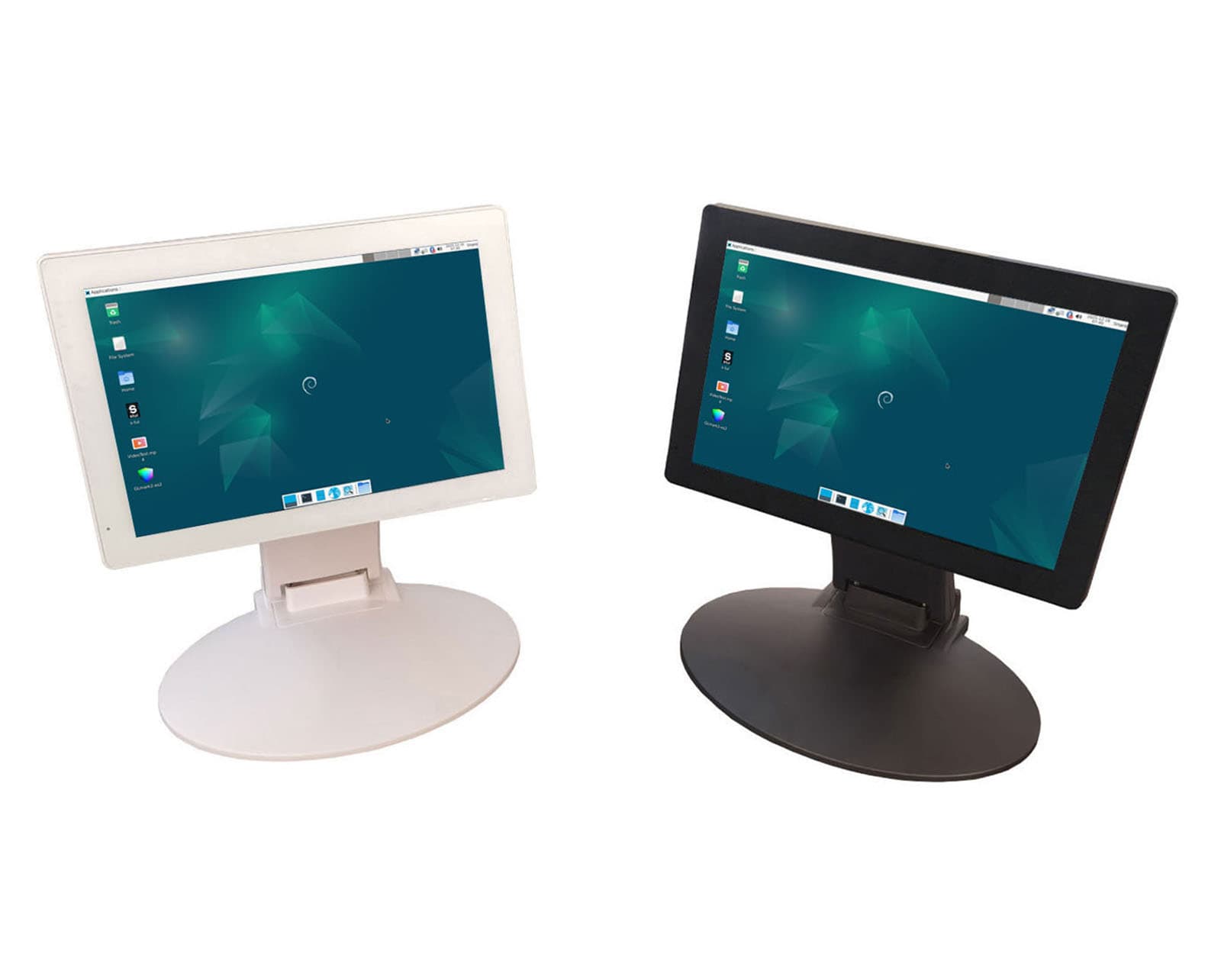

- Mounting Method
- Stand; VESA

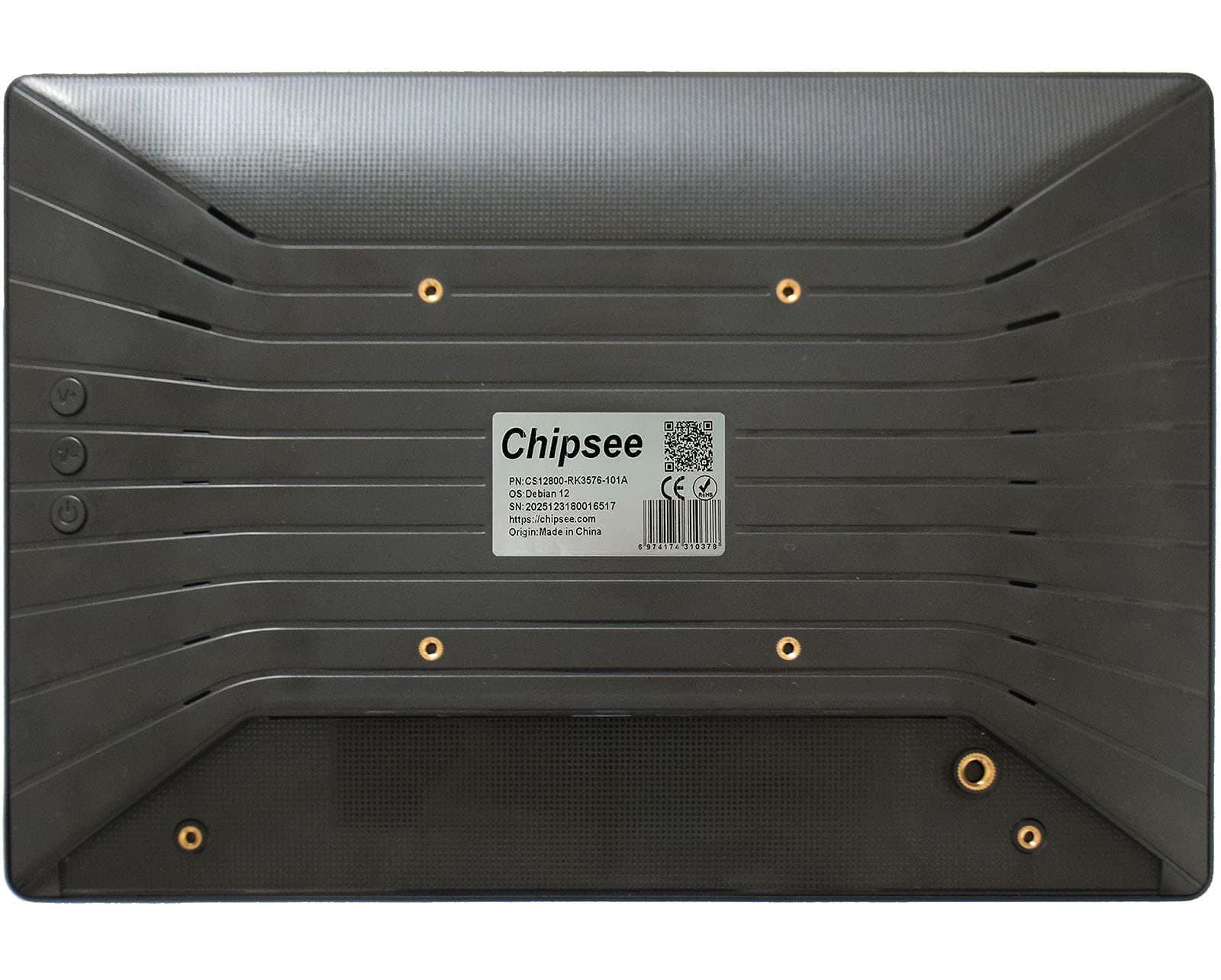

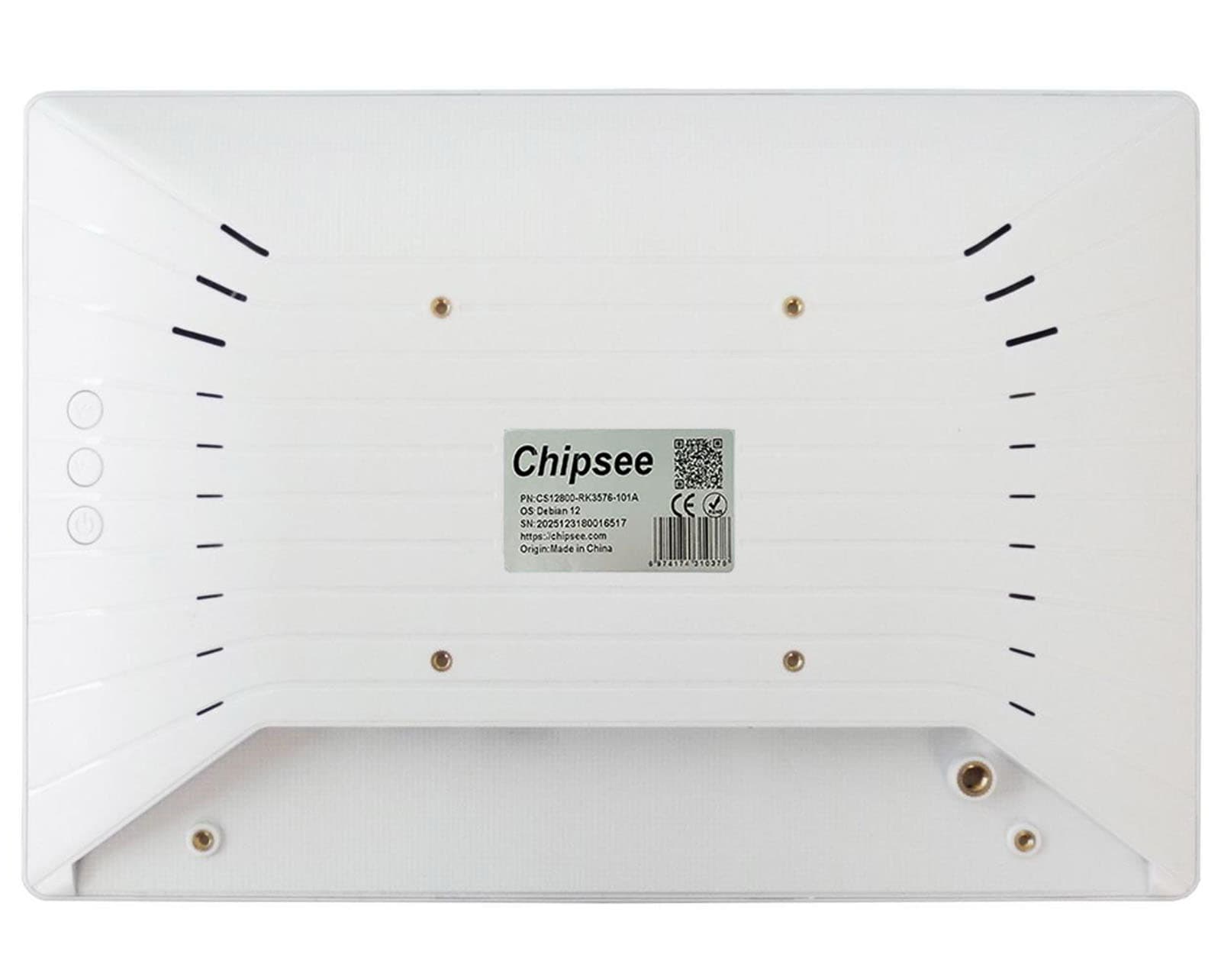

- Color
- Black; White
