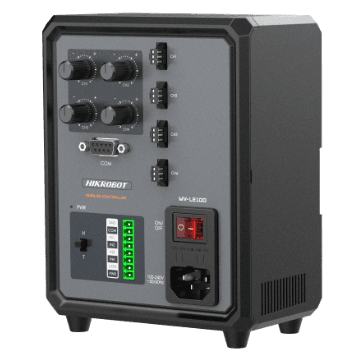

Analog Light Controller，4 channel，60W/24V
MV-LE100-60W24-4DHikrobot
Lighting — IP30
Model
- Product Model
- MV-LE100-60W24-4D
- Type
- Analog Light Controller，4 channel，60W/24V
Performance
- Dimming mode
- Control panel (knob), software (serial port)
- Trigger mode
- External trigger
Electrical feature
- Output current for each channel
- Max. 1.2 A
Physical specification
- Channel
- 4-channel
Mechanical
- Power supply interface
- C13 220 VAC interface
- Digital I/O
- Opto-isolated input × 4
- Dimension
- 130 mm × 92.9 mm × 169.5 mm (5.1" × 3.7" × 6.7")
- Shell material
- Plastic
- Weight
- Approx. 700 g (1.5 lb.)
- Temperature
- Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
- Humidity
- 20% RH to 85% RH (no condensation)
- Ingress protection
- IP30
General
- Certification
- CE, KC
