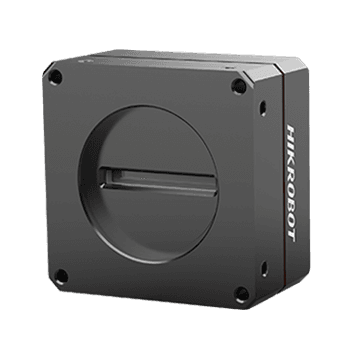

4k Camera Link Line Scan Cameras，Mono

Name: 4k Camera Link Line Scan Cameras，Mono
Brand: Hikrobot
SKU: MV-CL042-91CM

MV-CL042-91CMHikrobot

Request a quote Datasheet PDF Manual CAD drawing

The CL series covers 2K-16K pixels and equipped with GigE/Camera Link/XoF interfaces, support a variety of ISP and algorithms that can fulfill various application needs of line scan cameras. The CL camera supports various ISP functions: Flat field correction, Gamma, LUT, white balance, CCM, SC, etc. to help users obtain higher quality image data; Despite timed exposure, a new acquisition method of trigger-width controlled exposure is added, and with external (soft/hard) trigger signals, it can flexibly adapt to external lighting conditions and exposure control needs. The High-Bandwidth Mode is equipped in the new GigE CL line scan camera. Breaking through the physical bandwidth of the gigabit network, the line frequency can been improved by 1.5-2 times, which provide users with a more cost-effective solution.

Model

Product Model: MV-CL042-91CM
Type: 4k Camera Link Line Scan Cameras，Mono

Performance

Sensor type: CMOS
Pixel size: 7 μm
Sensor size (computed)from resolution × pixel pitch: 28.67 × 0.01 mm
Sensor diagonal: 28.67 mm
Resolution: 4096 × 2
Image mode: Supports 1-line and 2-TDI
Max. line rate: 40.5 kHz (Base), 81 kHz (Medium), 100 kHz (Full)
Configuration mode: Base, Medium, Full
Tap geometry: 1X2, 1X4, 1X8
Tap number: 2 Taps, 4 Taps, 8 Taps
Pixel clock: 40 MHz, 60 MHz, 70 MHz, 85 MHz
Dynamic range: 65.6 dB
SNR: 40 dB
Gain: Supports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
Exposure time: 5 μs to 10 ms
Exposure mode: Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
Mono: Mono
Pixel format: Mono 8/10/12
Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image: Supports horizontal reverse image output
Trigger mode: External trigger, internal trigger
External trigger mode: Line trigger, frame trigger, line + frame trigger

Electrical feature

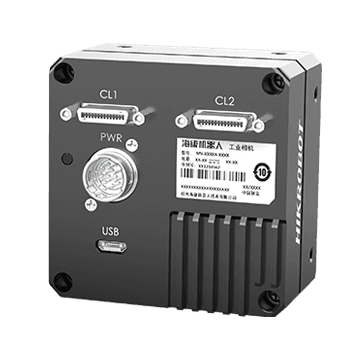

Data interface: Camera Link (SDR connector); USB interface for updating firmware
Digital I/O: 12-pin Hirose connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Power supply: 12 VDC to 24 VDC
Power consumption: Typ. 5.5 W @ 12 VDC

Mechanical

Lens mount: M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and lens of other types via lens adapter
Dimension: 62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5")
Weight: Approx. 238 g (0.5 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 5% RH to 95% RH (no condensation)

General

Client software: MVS and frame grabber software meeting with Camera Link Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11
Compatibility: Camera Link V2.1, GenICam
Certification: CE, RoHS, KC

Firmware

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

86 mm

Magnification: 0.29×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.

Data cables the manufacturer lists

MV-ACCL-SDR-SDR-HF-7M

Camera Link cable(SDR-SDR)，high flex，7m

MV-ACCL-SDR-SDR-ST-5M

Camera Link cable(SDR-SDR)，standard，5m

Frame grabbers

MV-GC1002-V2

CML FrameGrabber，with DB15 connector

Lenses that fit this camera

Filtered by the M42-mount thread and by coverage — the image circle is at least 28.67 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
