25mm, F2.4, Image Size φ29mm, Recommended Magnification 0.04~0.18X, M42-Mount

Name: 25mm, F2.4, Image Size φ29mm, Recommended Magnification 0.04~0.18X, M42-Mount
Brand: Hikrobot
SKU: MVL-AF2524M-M42

MVL-AF2524M-M42Hikrobot

Request a quote Datasheet PDF CAD drawing

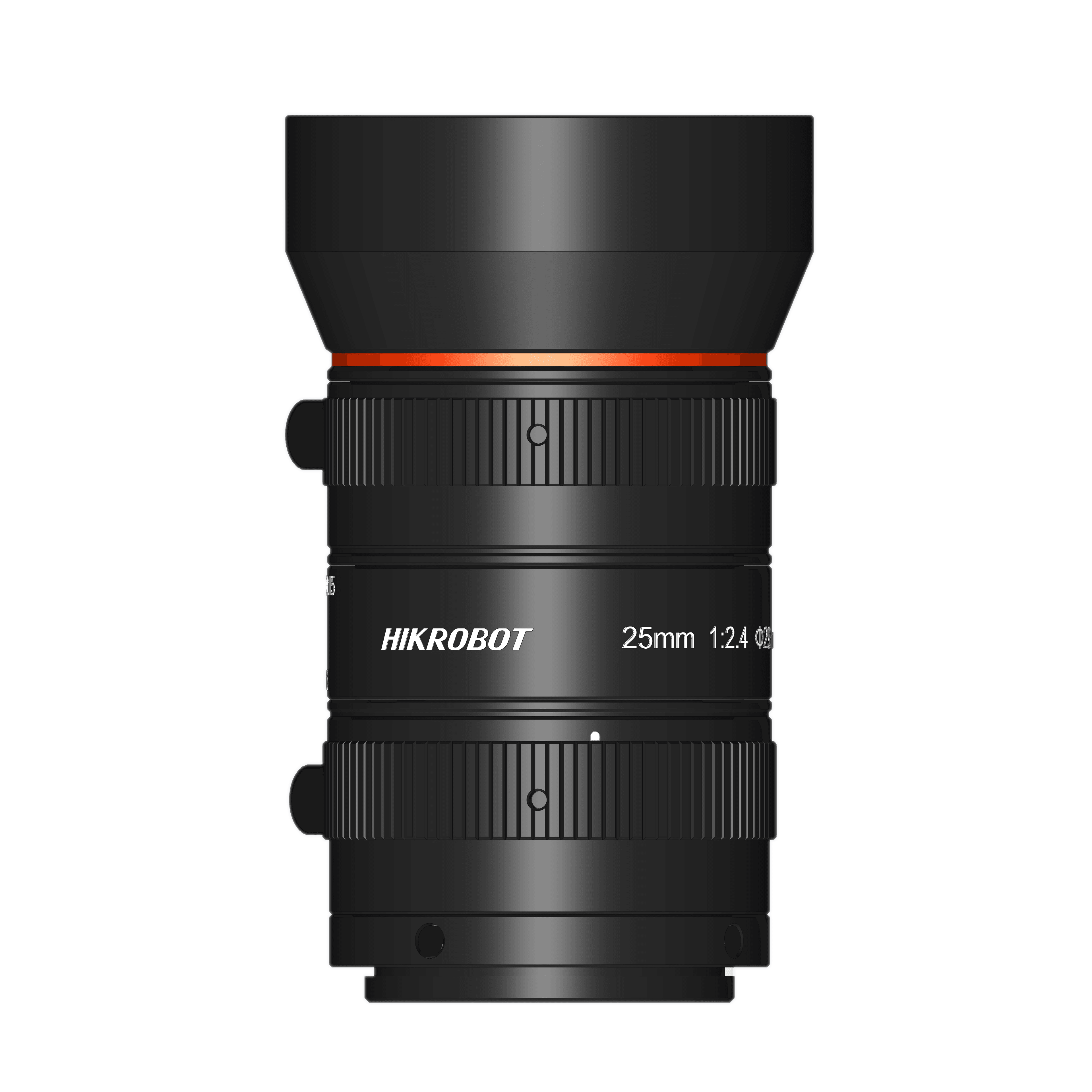

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices. The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Model

Product Model: MVL-AF2524M-M42
Type: 25mm, F2.4, Image Size φ29mm, Recommended Magnification 0.04~0.18X, M42-Mount

Performance

Focal length: 25 mm
F-number: F2.4 to F16
Image size: Φ29 mm
Optical distortion: –0.34%
Magnification range: 0.143 x to 0.001 x
Working distance range: 150 mm to inf mm

Mechanical

Iris control: Manual
Focus control: Manual
Filter thread: M58 × P0.75
Mount: M42 × P1
Flange back length: 12 mm
Dimension: Φ60 mm × 96.68 mm (Φ2.4" × 3.8")
Weight: 501 g (1.1 Ib.)
Temperature: –10 °C to 50 °C (14 °F to 122 °F)

General

Certification: RoHS2.0

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmFocal lengthmmPixels acrosspx

Field of view

96 mm

Magnification: 0.083×

Resolution per pixel

0.0392 mm/px

Smallest detectable feature: 0.118 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
