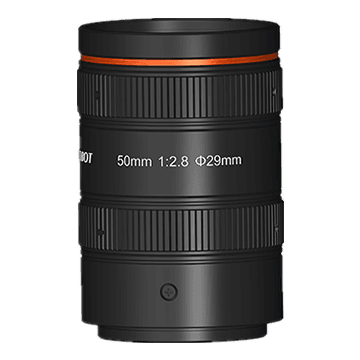

50mm, F2.8, Image Size φ29mm, Recommended Magnification 0.001x ~ 0.267X, M42-Mount
MVL-AF5028M-M42AHikrobot
Lenses — 50 mm, M42-mount
Model
- Product Model
- MVL-AF5028M-M42A
- Type
- 50mm, F2.8, Image Size φ29mm, Recommended Magnification 0.001x ~ 0.267X, M42-Mount
Performance
- Focal length
- 50 mm
- F-number
- F2.8 to F16
- Image size
- Φ29 mm
- Optical distortion
- 0.05%
- Magnification range
- 0.267 x to 0.001 x
- Working distance range
- 200 mm to inf mm (tolerance: ±5 mm)
Mechanical
- Iris control
- Manual
- Focus control
- Manual
- Filter thread
- M46 × P0.75
- Mount
- M42 × P1
- Flange back length
- 12 mm
- Dimension
- Φ50 mm × 73.2 mm (Φ2.0" × 2.9")
- Temperature
- –10 °C to 50 °C (14 °F to 122 °F)
General
- Certification
- RoHS 2.0
Choosing a lens
Choosing a lens
Solve for
Field of view
48 mm
Magnification: 0.17×
Resolution per pixel
0.0196 mm/px
Smallest detectable feature: 0.0588 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
