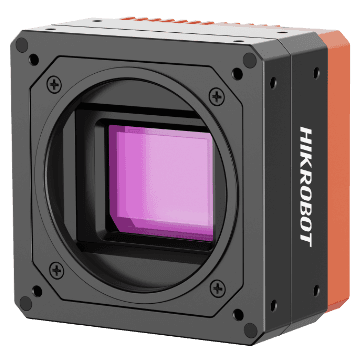

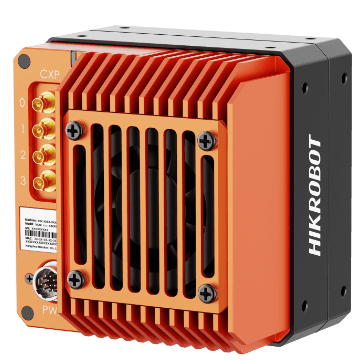

152MP Area Scan Camera, CoaXPress, GMAX32152, Mono, M72-mount, with TEC
> 25 MP CoaXPress Area Scan Cameras — GMAX32152, Global shutter, CMOS, M72-mount
Model
- Product Model
- MV-CH1520-90YM-M72-TF
- Type
- 152MP Area Scan Camera, CoaXPress, GMAX32152, Mono, M72-mount, with TEC
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- Gpixel GMAX32152
- Pixel size
- 3.2 μm × 3.2 μm
- Sensor size
- 53 mm × 29.4 mm
- Sensor size (computed)from resolution × pixel pitch
- 52.94 × 29.44 mm
- Sensor diagonal
- 60.58 mm
- Resolution
- 16544 × 9200
- Max. frame rate
- 16.3 fps @ 16544 × 9200 Mono 8
- Dynamic range
- 65.3 dB
- SNR
- 40 dB
- Gain
- 1.4x to 5.2x
- Exposure time
- 20 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono/color
- Mono
- Pixel format
- Mono 8/10/12
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- CoaXPress with Micro-BNC interface
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
- Power supply
- 24 VDC
- Power consumption
- Non-cooling: Typ. 17.7 W @ 24 VDC Cooling: Typ. 31.7 W @ 24 VDC
Mechanical
- Lens mount
- M72*0.75, flange back length 19.55 mm
- Dimension
- 100 mm × 100 mm × 86 mm (3.9" × 3.9" × 3.4")
- Weight
- Approx. 1.2 kg (2.6 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or frame grabber software meeting with CoaXPress Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux (8 GB memory or above)
- Compatibility
- CoaXPress, GenlCam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
159 mm
Magnification: 0.53×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Lenses that fit this camera
Filtered by the M72-mount thread and by coverage — the image circle is at least 60.58 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
Data cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
MV-ACXP12-HDBNC-HDBNC-HF-10M
High-flex CXP-12 cable，10m
MV-ACXP12-HDBNC-HDBNC-ST-10M
MV-ACXP12-HDBNC-HDBNC-ST-10m
MV-ACXP12-HDBNC-HDBNC-HF-3M
High-flex CXP-12 cable，3m
MV-ACXP12-HDBNC-HDBNC-ST-3M
MV-ACXP12-HDBNC-HDBNC-ST-3m
MV-ACXP12-HDBNC-HDBNC-HF-5M
High-flex CXP-12 cable，5m
MV-ACXP12-HDBNC-HDBNC-ST-5M
MV-ACXP12-HDBNC-HDBNC-ST-5m
Power and I/O cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
MV-ACP-H12P-OPEN-HF-10M
High-flex 12pin power & I/O cables，10 meters
MV-ACP-H12P-OPEN-ST-10M
MV-ACP-H12p-open-ST-10m
MV-ACP-H12P-OPEN-HF-3M
High-flex 12pin power & I/O cables，3 meters
MV-ACP-H12P-OPEN-ST-20M
MV-ACP-H12p-open-ST-20m
MV-ACP-H12P-OPEN-HF-5M
High-flex 12pin power & I/O cables，5 meters
MV-ACP-H12P-OPEN-ST-3M
MV-ACP-H12p-open-ST-3m
MV-ACP-H12P-OPEN-HF-7M
High-flex 12pin power & I/O cables，7 meters
MV-ACP-H12P-OPEN-ST-5M
MV-ACP-H12p-open-ST-5m
MV-ACP-H12P-OPEN-ST-7M
