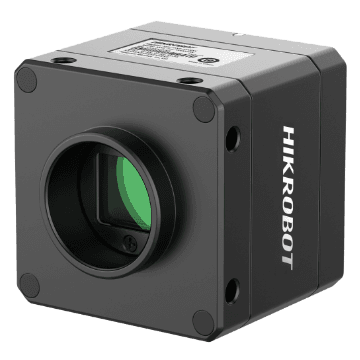

12MP Area Scan Camera, GMAX3412, 2-link CXP-12, C-mount, without fan, Color

Name: 12MP Area Scan Camera, GMAX3412, 2-link CXP-12, C-mount, without fan, Color
Brand: Hikrobot
SKU: MV-CH120-90Y2C-C-NN

MV-CH120-90Y2C-C-NNHikrobotSensor: GMAX3412 Global shutter →

Request a quote Datasheet PDF Manual CAD drawing

12–25 MP CoaXPress Area Scan Cameras — GMAX3412, Global shutter, CMOS, C-mount

Model

Product Model: MV-CH120-90Y2C-C-NN
Type: 12MP Area Scan Camera, GMAX3412, 2-link CXP-12, C-mount, without fan, Color

Performance

Sensor type: CMOS, global shutter
Sensor model: Gpixel GMAX3412
Pixel size: 3.4 μm × 3.4 μm
Sensor size: 1.1"
Sensor size (computed)from resolution × pixel pitch: 13.93 × 10.23 mm
Sensor diagonal: 17.28 mm
Resolution: 4096 × 3008
Max. frame rate: 149 fps @ 4096 × 3008 Bayer GB 8
Dynamic range: 59.7 dB
SNR: 39.1 dB
Gain: 0 dB to 6.1 dB
Exposure time: 6 μs to 10 sec
Exposure mode: Off/Once/Continuous exposure mode
Mono/color: Color
Pixel format: Bayer GB 8/10/12
Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image: Supports horizontal and vertical reverse image output

Electrical feature

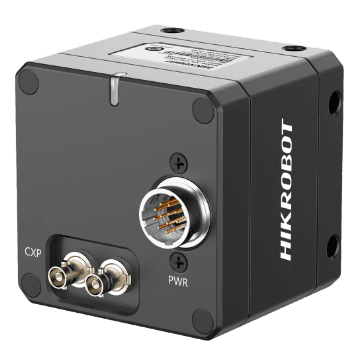

Data interface: CoaXPress with Micro-BNC interfaces
Digital I/O: 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply: 9 VDC to 24 VDC, CXP-0 supports PoCXP
Power consumption: Typ. 6.1 W @ 12 VDC

Mechanical

Lens mount: C-mount
Dimension: 50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8")
Weight: Approx. 207 g (0.5 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Client software: MVS or frame grabber software meeting with CoaXPress Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility: CoaXPress, GenlCam
Certification: CE, RoHS, KC

Firmware

MV_CH120_90Y2C_STD_V4.1.12_250415_HIKROBOT.zip →

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

41.8 mm

Magnification: 0.14×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
