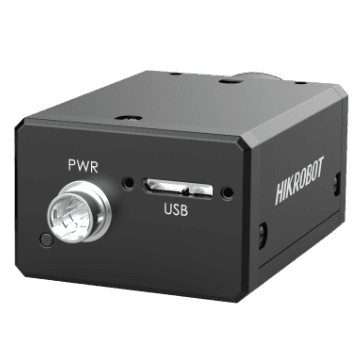

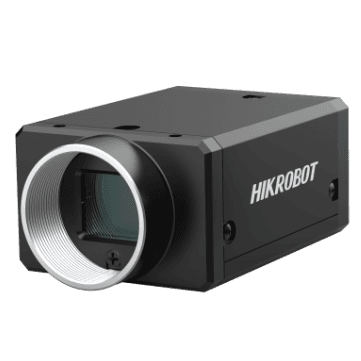

Name: 8.9MP Area Scan Camera, USB3,IMX267,Color
Brand: Hikrobot
SKU: MV-CH089-10UC

MV-CH089-10UCHikrobotSensor: IMX267 Global shutter →

Request a quote Datasheet PDF Manual CAD drawing

5–12 MP USB3 Area Scan Cameras — IMX267, Global shutter, CMOS, C-mount

Model

Product Model: MV-CH089-10UC
Type: 8.9MP Area Scan Camera, USB3,IMX267,Color

Performance

Sensor type: CMOS, global shutter
Sensor model: Sony® IMX267
Pixel size: 3.45 μm × 3.45 μm
Sensor size: 1"
Sensor size (computed)from resolution × pixel pitch: 14.13 × 7.45 mm
Sensor diagonal: 15.98 mm
Resolution: 4096 × 2160
Max. frame rate: 32 fps @ 4096 × 2160 Mono 8 32 fps @ 4096 × 2160 Bayer GR 8
Dynamic range: 72.5 dB
SNR: 40.1 dB
Gain: 0 dB to 20 dB
Exposure time: UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure mode: Off/Once/Continuous exposure mode
Mono: Color
Pixel format: Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning: Supports 1 × 1, 2 × 2, 4 × 4
Decimation: Supports 1 × 1, 2 × 2, 4 × 4
Reverse image: Supports horizontal and vertical reverse image output

Electrical feature

Data interface: USB 3.0, compatible with USB 2.0
Digital I/O: 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply: 12 VDC, supports USB 3.0 power supply
Power consumption: Typ. 3.27 W @ 5 VDC (USB 3.0 provides power supply)

Mechanical

Lens mount: C-mount
Dimension: 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
Weight: Approx. 100 g (0.2 lb.)
Ingress protection: IP30 (under proper lens installation and wiring)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity: 20% RH to 80% RH (no condensation)

General

Client software: MVS or third-party software meeting with USB3.0 Vision Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility: USB3 Vision, GenlCam
Certification: CE, RoHS, KC

Firmware

MV_CH089_10UC_S_STD_V1.6.4_230423_HIKROBOT.zip →

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

42.4 mm

Magnification: 0.14×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.

Data cables the manufacturer lists

MV-ACU3-MBMS(DOWN)-AM-ST-3M

MV-ACU3-MBMs-AM-ST-1m

Frame grabbers

MV-GU2104

MV-GU2100 Series Quad USB3.0 Adaptor

Lenses that fit this camera

Filtered by the C-mount thread and by coverage — the image circle is at least 15.98 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
