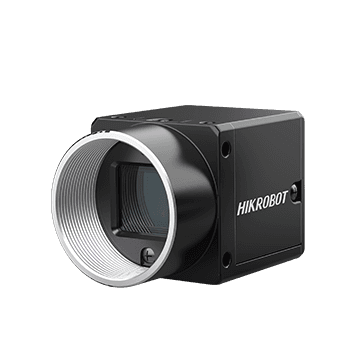

5MP Area Scan Camera, USB3, IMX250, Color, V4
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress. Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage. Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Model
- Product Model
- MV-CH050-10UC
- Type
- 5MP Area Scan Camera, USB3, IMX250, Color, V4
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- Sony® IMX250
- Pixel size
- 3.45 μm × 3.45 μm
- Sensor size
- 2/3"
- Sensor size (computed)from resolution × pixel pitch
- 8.45 × 7.07 mm
- Sensor diagonal
- 11.01 mm
- Resolution
- 2448 × 2048
- Max. frame rate
- 74.1 fps @2448 × 2048 Bayer RG 8
- Dynamic range
- 71 dB
- SNR
- 40 dB
- Gain
- 0 dB to 24 dB
- Exposure time
- UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
- Mono/color
- Color
- Exposure mode
- Off/Once/Continuous exposure mode
- Pixel format
- Mono 8/10/12, Bayer RG 8/10//10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 2 × 2
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- USB3.0, compatible with USB2.0
- Digital I/O
- 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Power supply
- 9 VDC to 24 VDC, supports USB3.0 power supply
- Power consumption
- Typ. 2.8 W@5 VDC (USB3.0 provides power supply)
Mechanical
- Lens mount
- C-mount
- Dimension
- 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
- Weight
- Approx. 80 g (0.2 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with USB3 Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
- Compatibility
- USB3 Vision, GenICam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Data cables the manufacturer lists
Frame grabbers
Lenses that fit this camera
Filtered by the C-mount thread and by coverage — the image circle is at least 11.01 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
