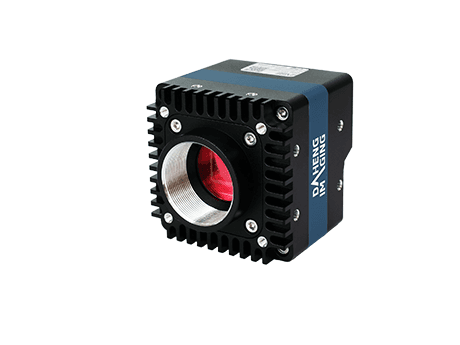

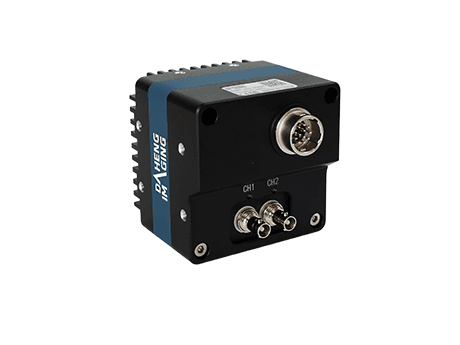

MARS-801-190X2C
The MARS 5GigE series (MARS-G5-P) camera is DAHENG IMAGING’s high bandwidth industrial digital camera, featuring high resolution, high definition and low noise. MARS-1231-46G5M/C-P is a monochrome/color GigE Vision camera with the Sony IMX253 CMOS sensor. The MARS-1231-46G5M/C-P camera is capable of 5Gbit/s maximum transfer data rate, can be powered over Ethernet and has opto-isolated I/Os that adapt to specific needs. Thanks to the locking screw connectors, the MARS series cameras can secure the reliability of cameras deployed in harsh environments. Featuring compact design, outstanding performance, ease of installation and use, the MARS cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Specifications
- Model
- MARS-801-190X2C
- Product Families
- MARS
- Resolution
- 2848×2848
- Frame Rate (fps)
- 190
- Sensor Manufacturer
- Sony
- Sensor
- 2/3" Sony IMX536 Global shutter CMOS
- Pixel Size
- 2.74μm
- Sensor size (computed)from resolution × pixel pitch
- 7.8 × 7.8 mm
- Sensor diagonal
- 11.04 mm
- Pixel Bit Depth
- 8 bit，10 bit，12 bit
- Data Interface
- CoaXPress
- Lens Mount
- C
- Spectrum
- Color
- Pixel Formats
- Bayer RG8, Bayer RG10, Bayer RG12
- Signal Noise Ratio
- 39.92 dB
- Exposure Time
- Standard: 3μs ~ 1s, UltraShort: 1μs ~ 2.4μs
- Gain
- Digital Gain: 0dB~16dB,Analog Gain: 10bit: 1×, 12bit: 1× ~ 12.19×
- Decimation
- 2×2
- Reverse X/Y
- Reverse X/Y
- I/O Interface
- 1 input and 1 output with opto-isolated, 1 bidirectional GPIO, 1 RS232
- Power Requirement
- PoCXP
- Power Consumption
- 5.5W @ PoCXP
- Operating Temp.
- 0°C ~ +45°C
- Storage Temp.
- -20°C ~ +70°C
- Operating Humidity
- 10% ~ 80%
- Dimensions (W×H×L)
- 50mm × 50mm × 59.2mm
- Weight
- 184 g
- Conformity
- CE, RoHS, FCC, ICES, UKCA, CoaXPress2.0, GenICam
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Lenses that fit this camera
Filtered by the C-mount thread and by coverage — the image circle is at least 11.04 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
6mm, F1.8, 1.1", 12MP Lens, C-Mount
8mm, F1.4, 1.1", 12MP Lens, C-Mount
8mm, F1.8, 1", 12MP Lens, C-Mount
8mm, F2.8, 2/3", 10MP Lens, C-Mount
12mm, F2.4, 1.2", 25MP Lens, C-Mount
12mm, F2.8, 1.1", 12MP Lens, C-Mount
12mm, F2.8, 1.1", 12MP Lens, C-Mount
12mm, F2.8, 2/3", 10MP Lens, C-Mount
12mm, F2.0, 4/3", 10MP Lens, C-Mount
16mm, F2.4, 1.2", 25MP Lens, C-Mount
16mm, F2.8, 1.1", 12MP Lens, C-Mount
16mm, F2.8, 1.1", 12MP Lens, C-Mount
Data cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
High-flex CXP-12 cable，10m
MV-ACXP12-HDBNC-HDBNC-ST-10m
High-flex CXP-6 cable(Din-BNC), 10m
MV-ACXP6-DIN-BNC-ST-10m
High-flex CXP-6 cable(Din-Din), 10m
MV-ACXP6-DIN-DIN-ST-10m
High-flex CXP-6 cable(Din-HDBNC), 10m
High-flex CXP-12 cable，3m
MV-ACXP12-HDBNC-HDBNC-ST-3m
High-flex CXP-6 cable(Din-BNC), 3m
MV-ACXP6-DIN-BNC-ST-3m
