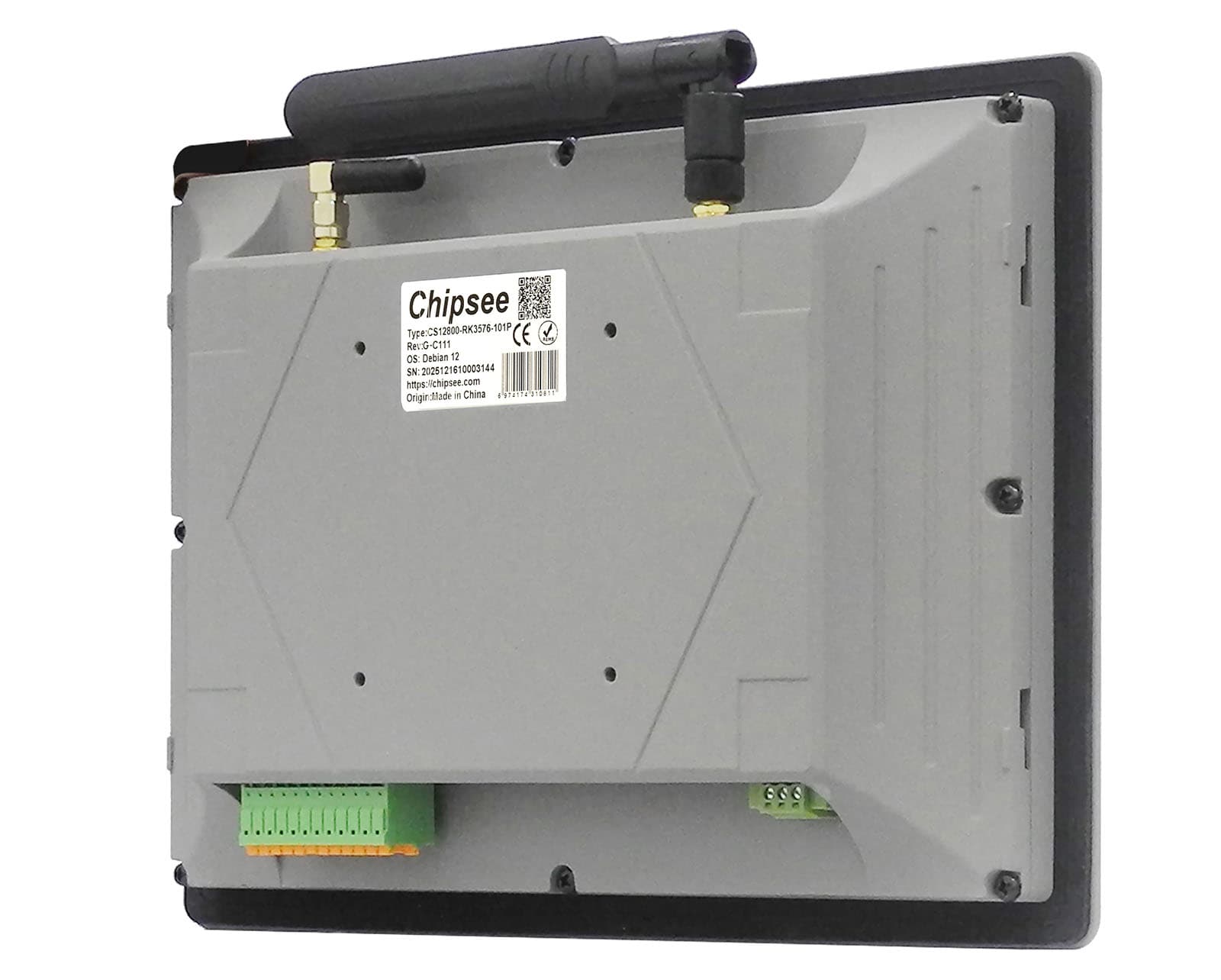

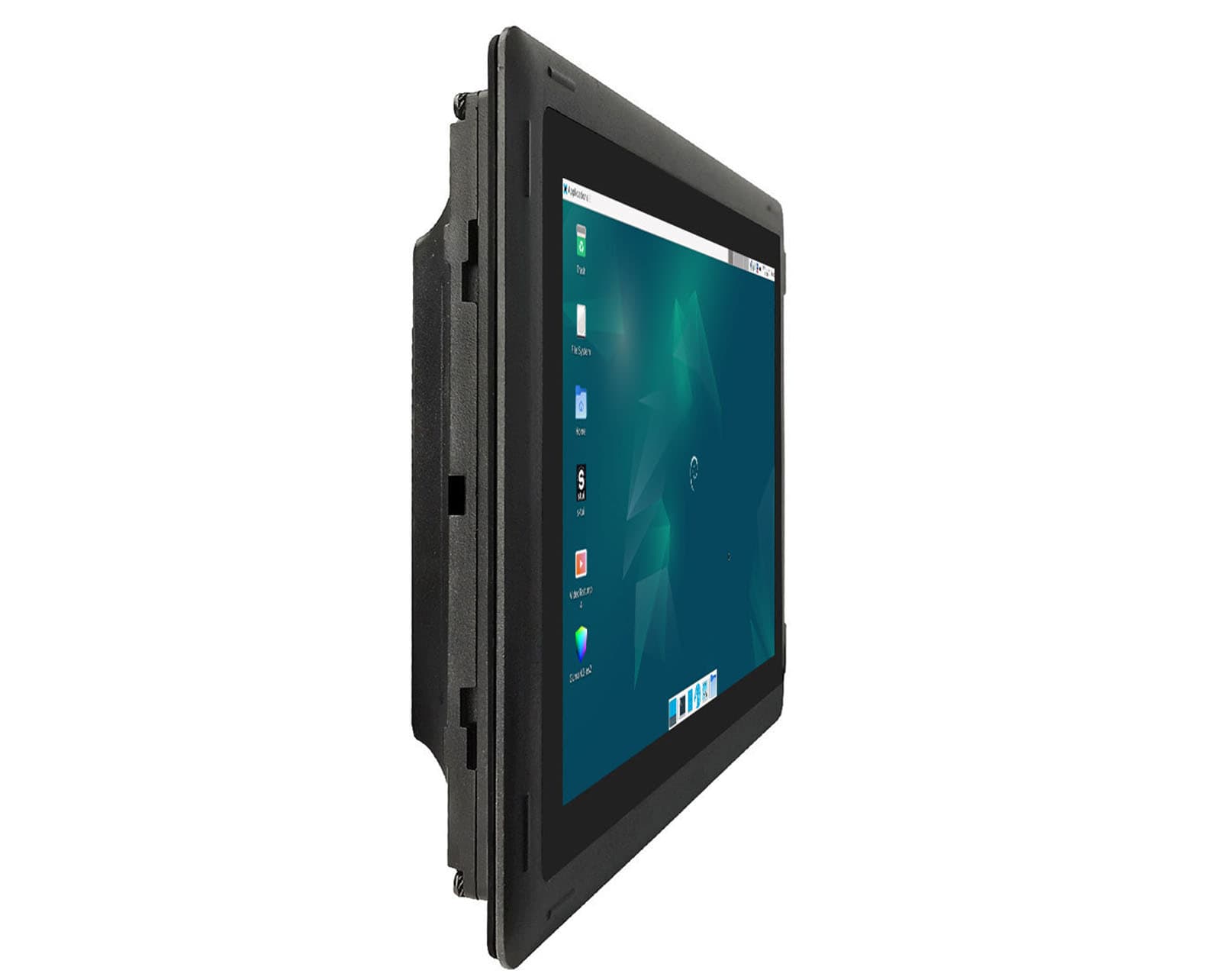

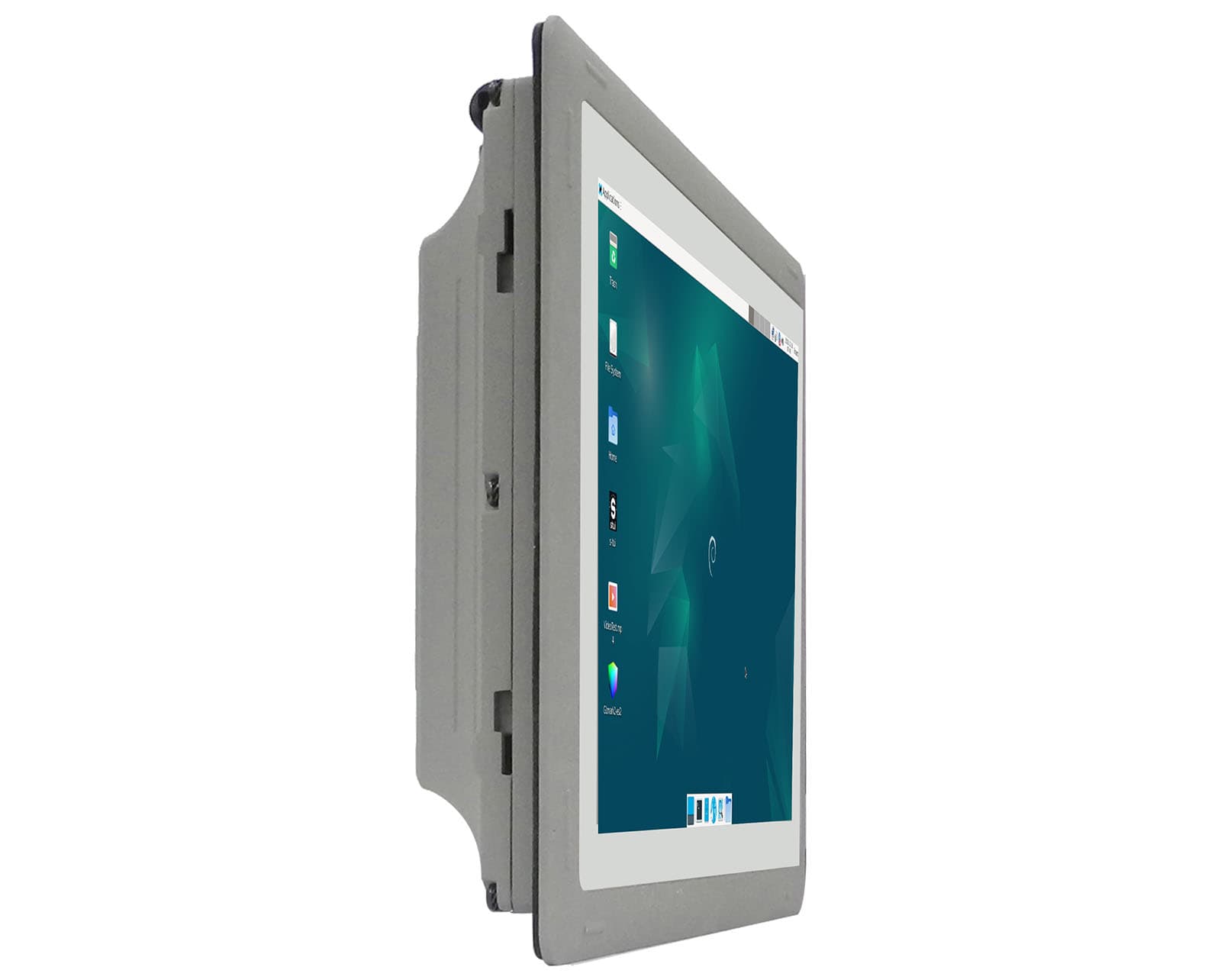

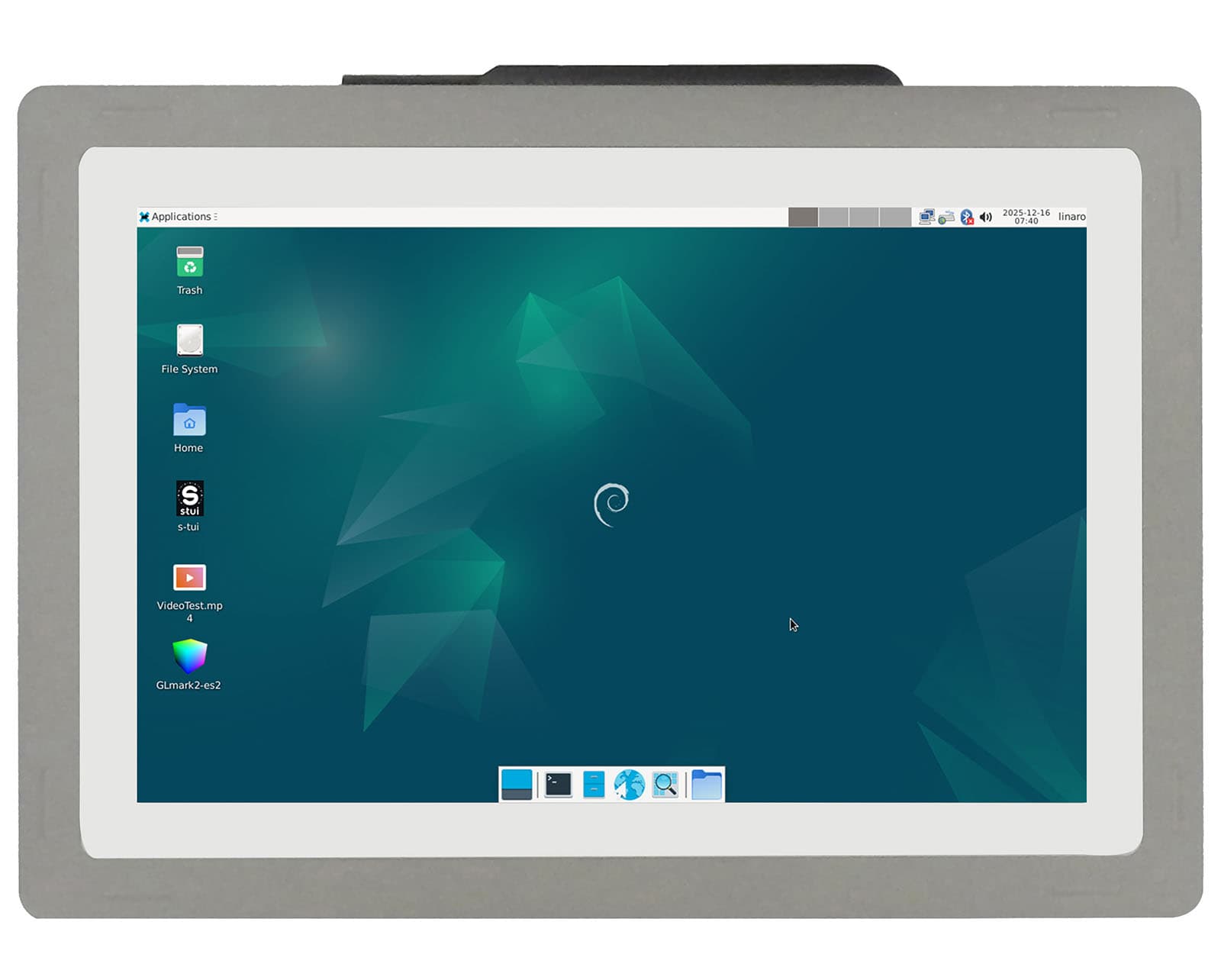

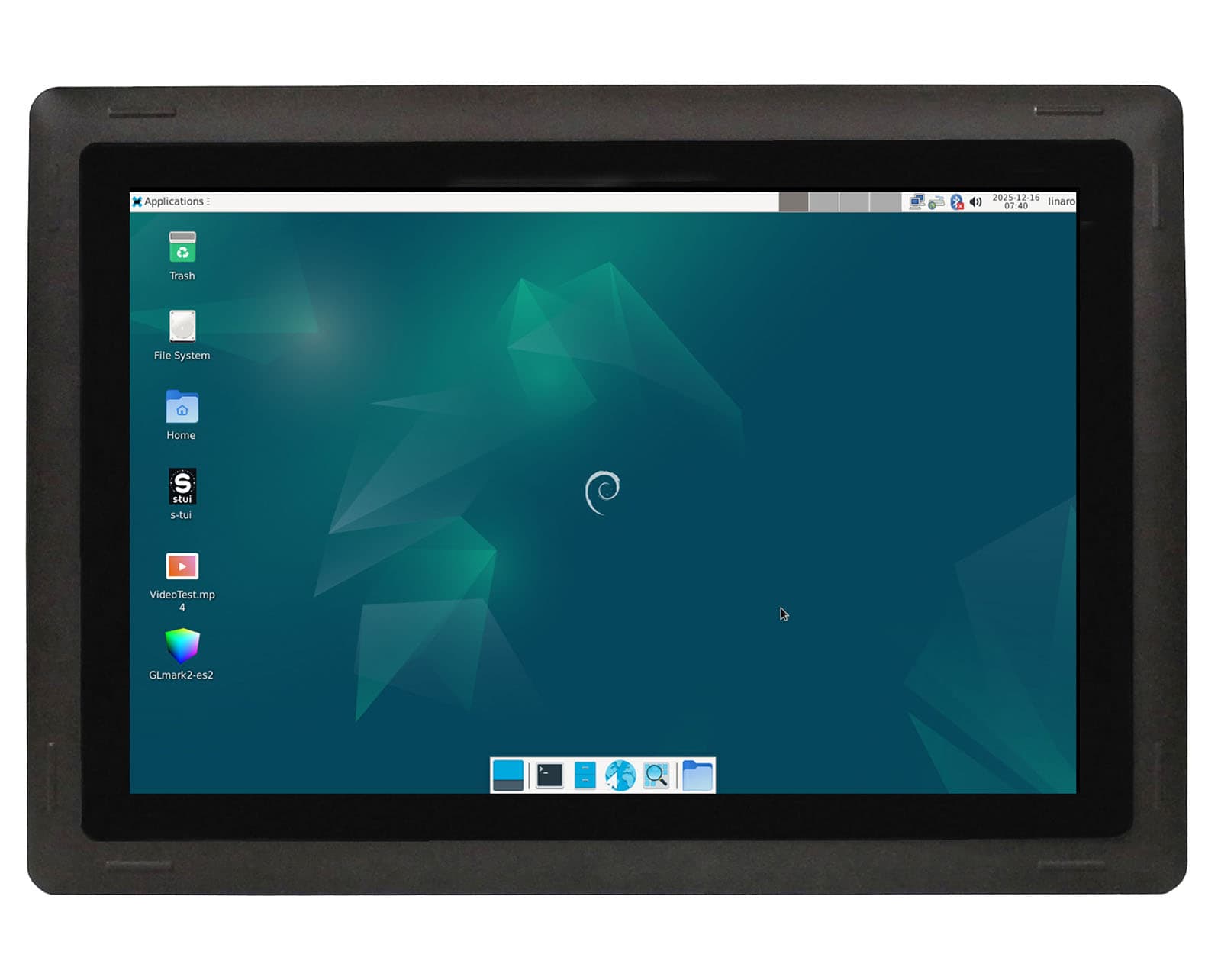

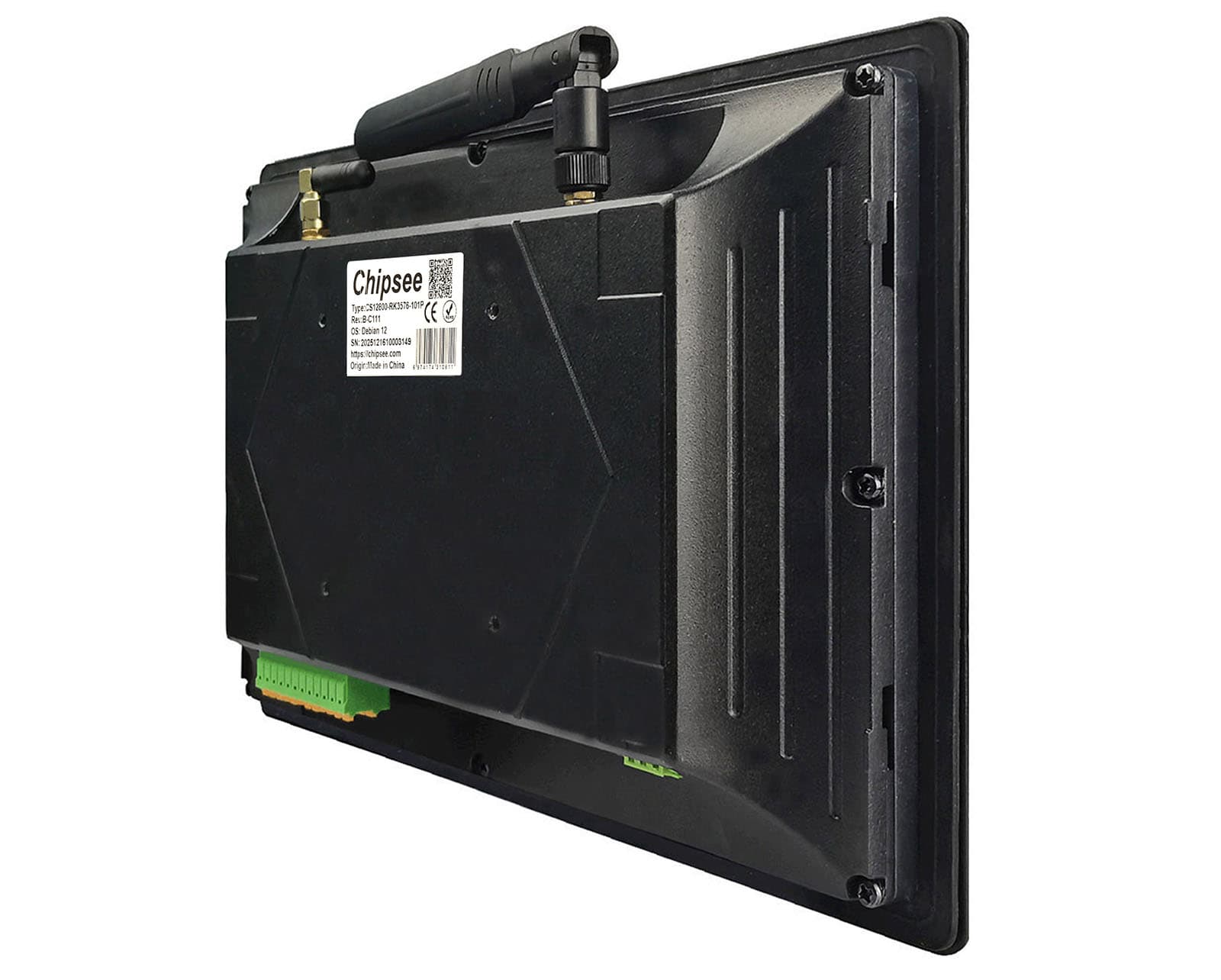

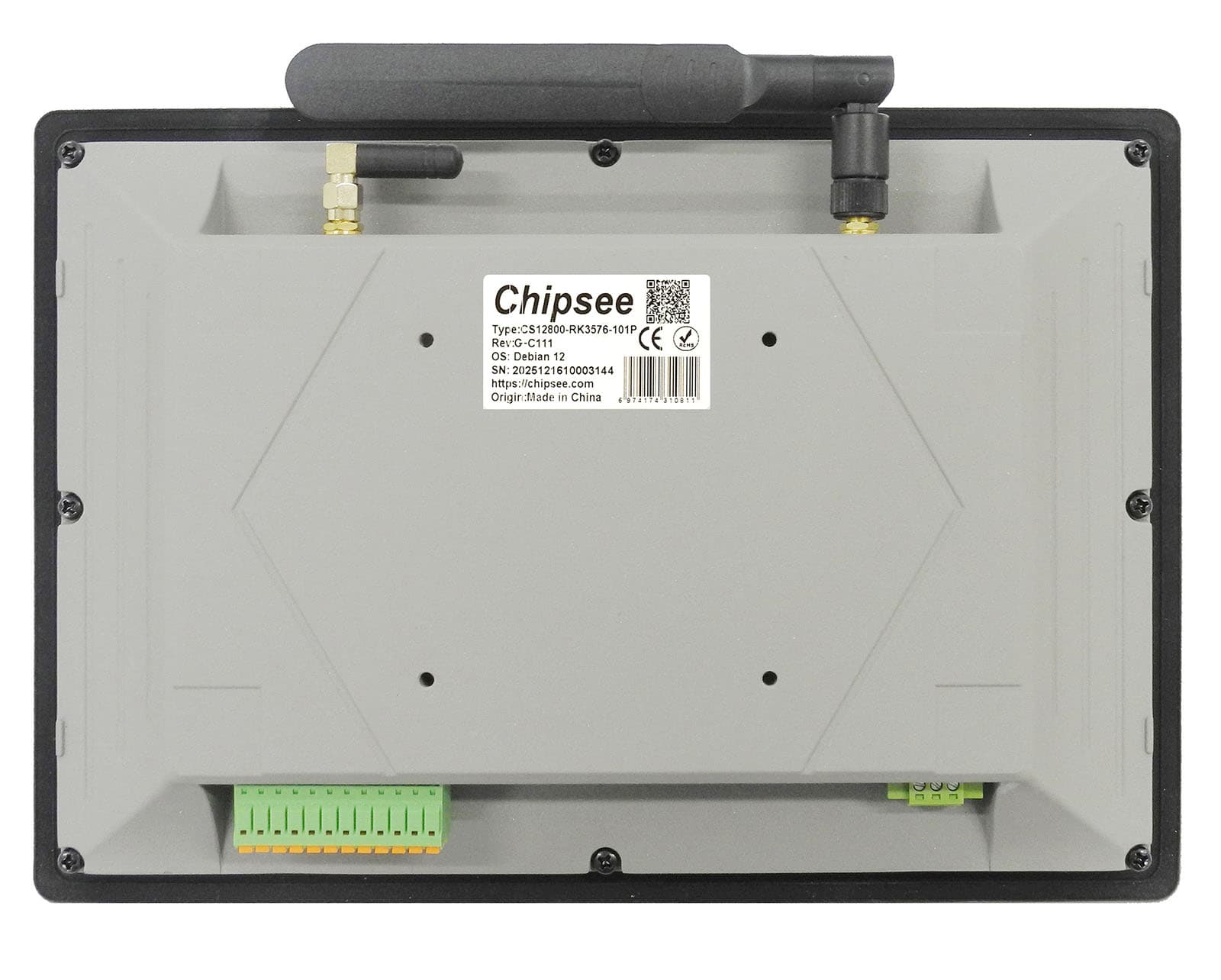

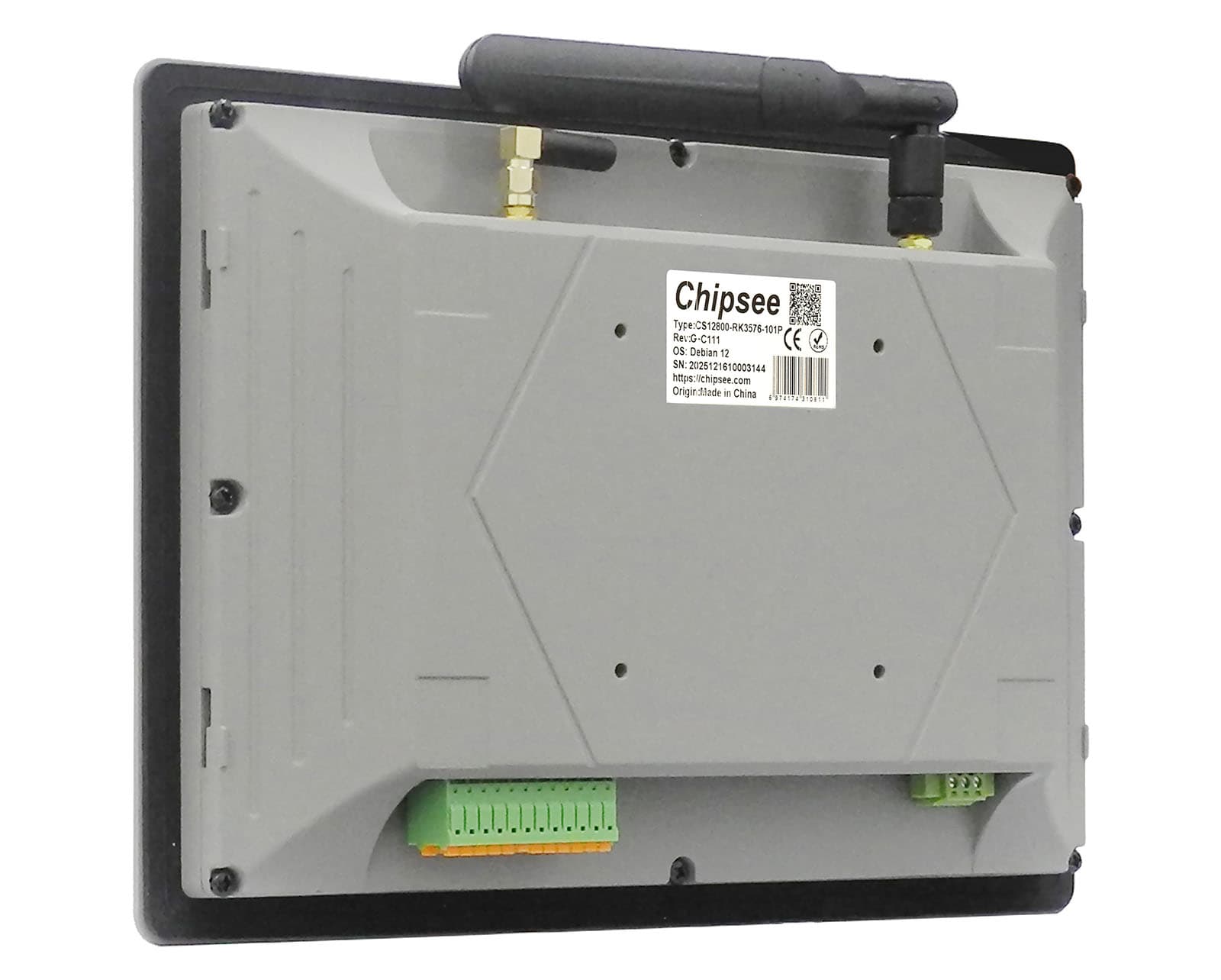

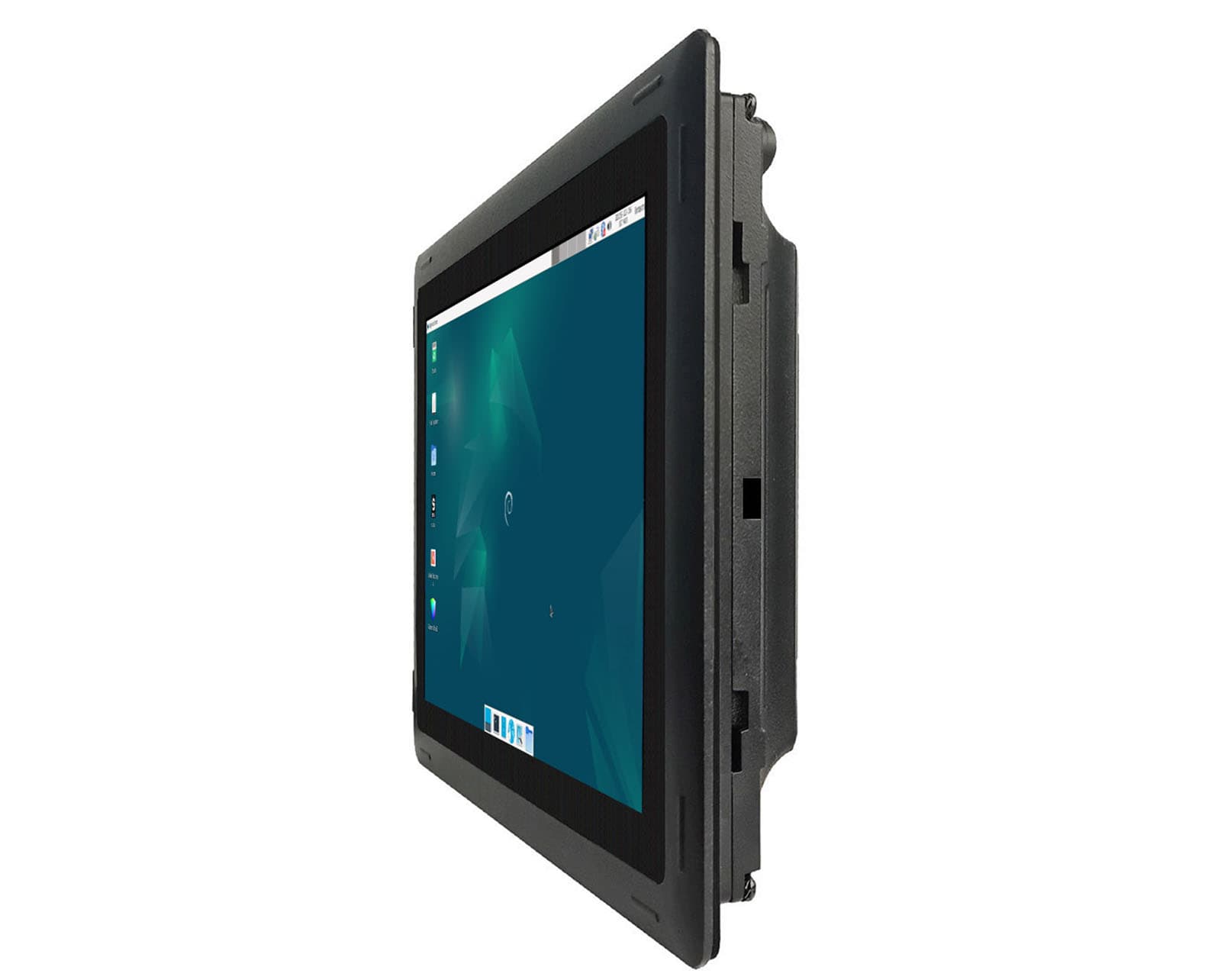

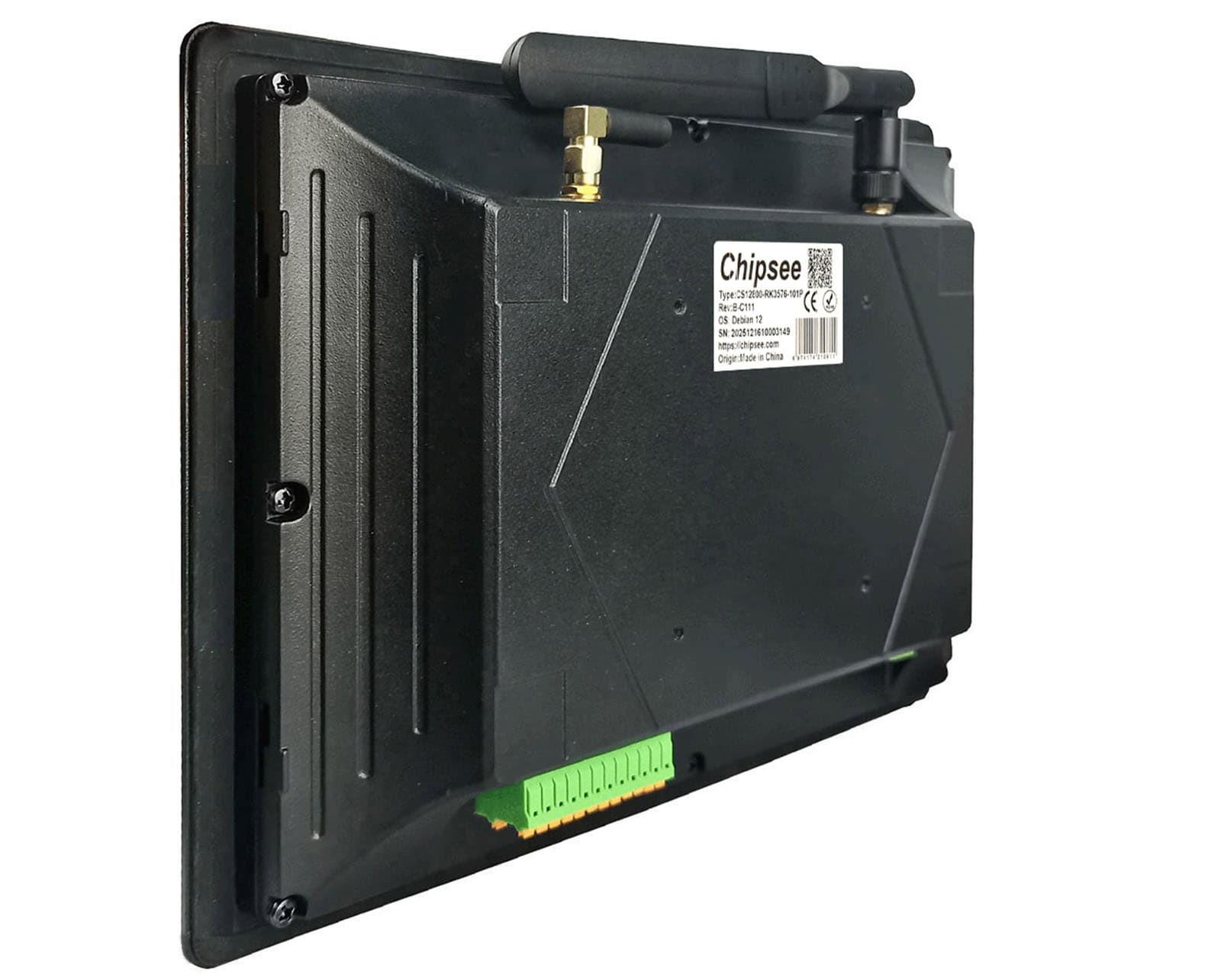

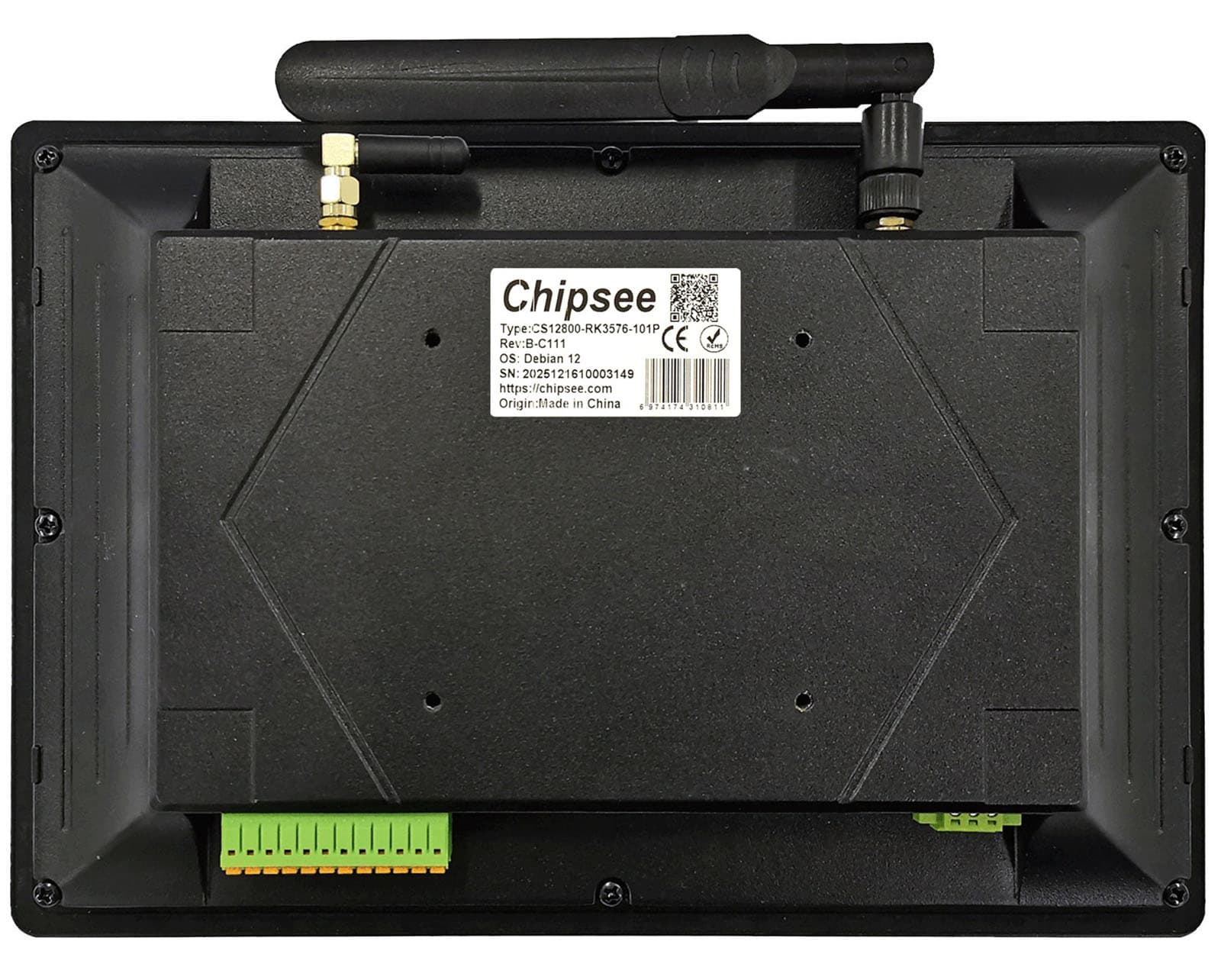

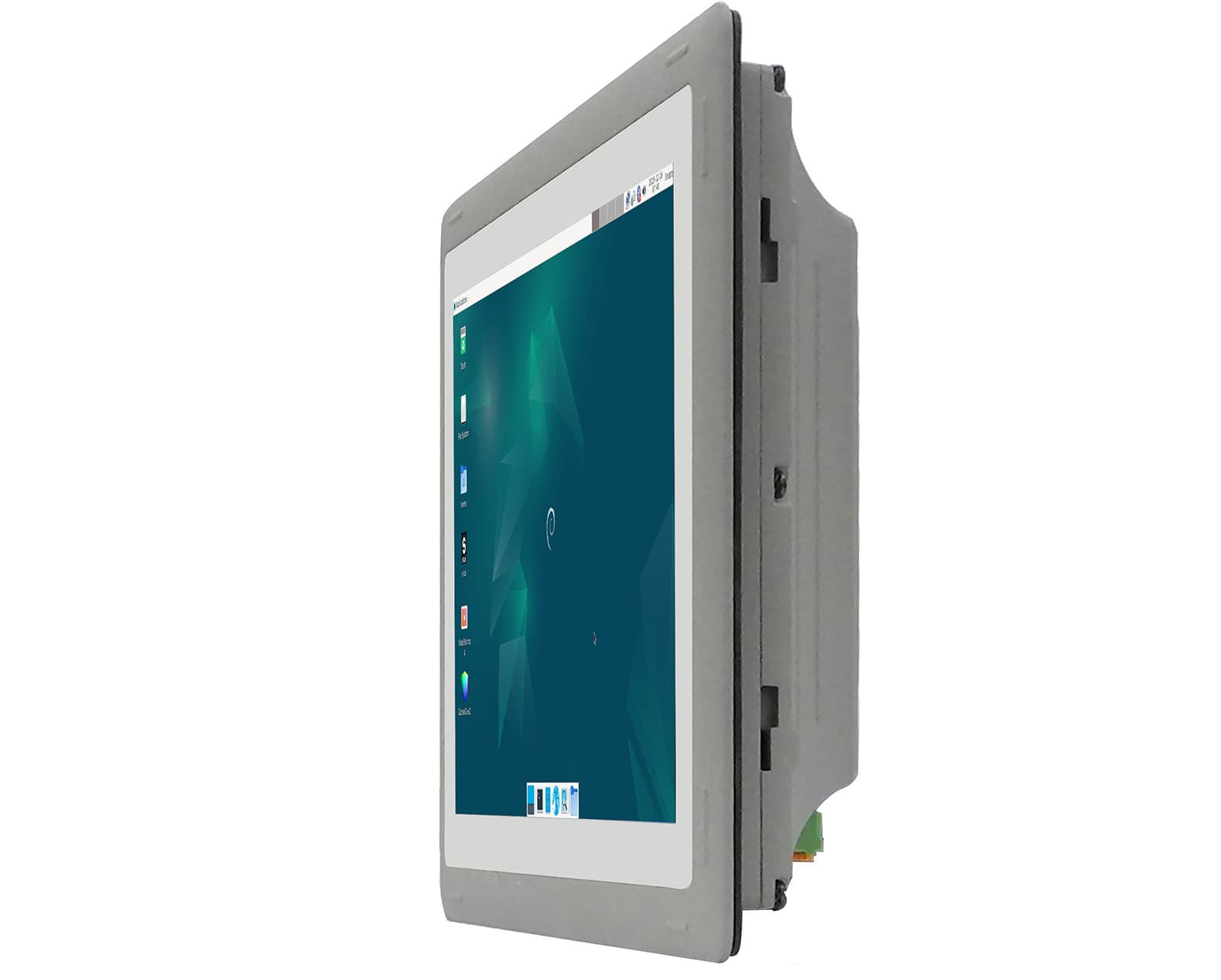

10.1" Панелни компютри и HMI — ARM: Rockchip RK3576, 4GB LPDDR5, 64GB, 1280 × 800
Спецификации
- SKU
- CS12800-RK3576-101P
- Нетно тегло
- 1300 g
- Процесор
- ARM: Rockchip RK3576
- Тактова честота на процесора
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU ускорител
- 6 TOPS(Sparsity)@INT8
- Графичен процесор
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- M.2
- Optional, supports M.2 M-Key 2230/2242/2260/2280 NVME SSD (PCI-E 3.0 x1)
- Оперативна памет
- 4GB LPDDR5
- Вградена памет (eMMC)
- 64GB
- Постоянна памет
- TF Card, Supports up to 128GB SDHC
- Диагонал на екрана
- 10.1"
- Разделителна способност
- 1280*800
- Яркост
- 480 NIT
- Сензорен екран
- Capacitive

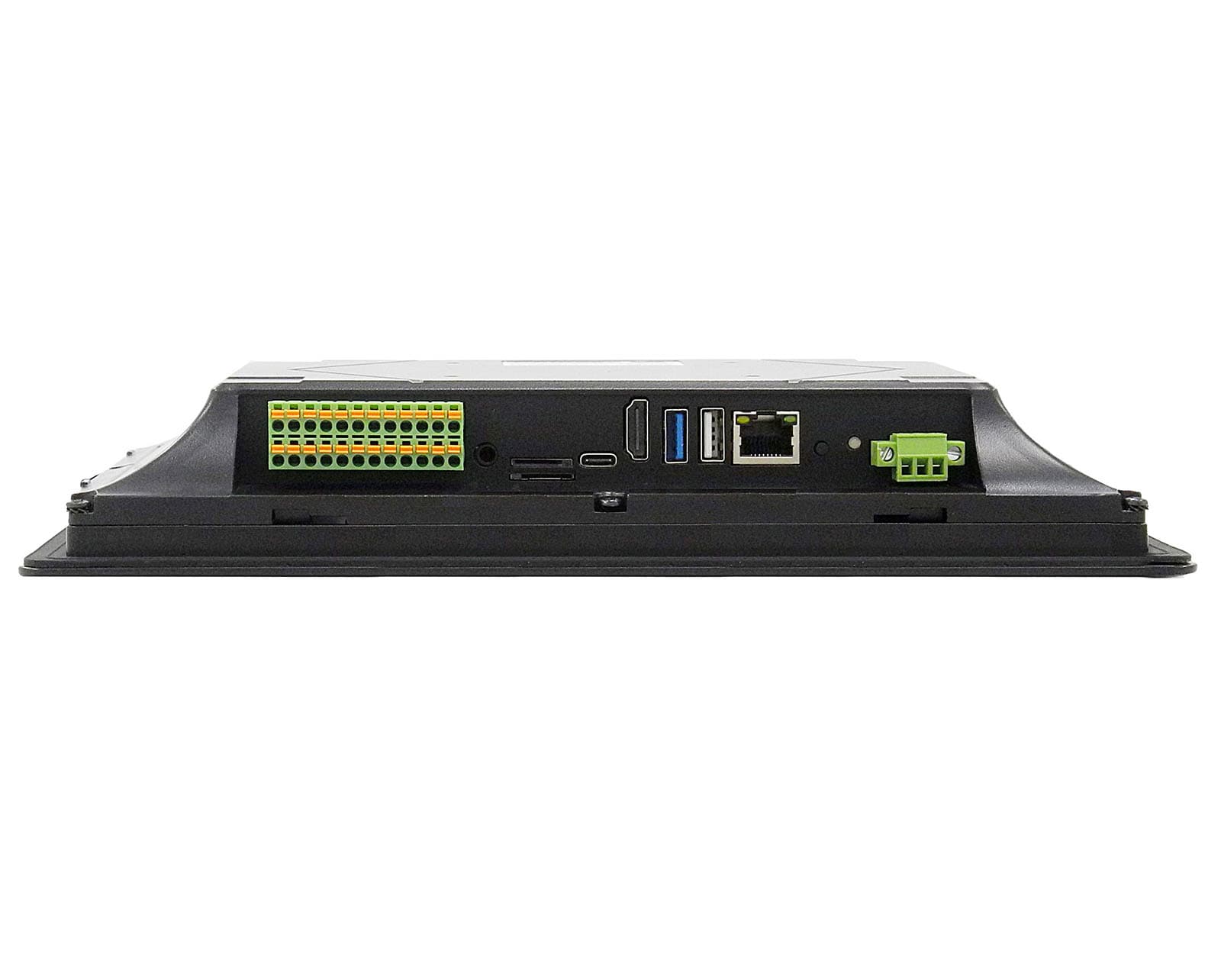

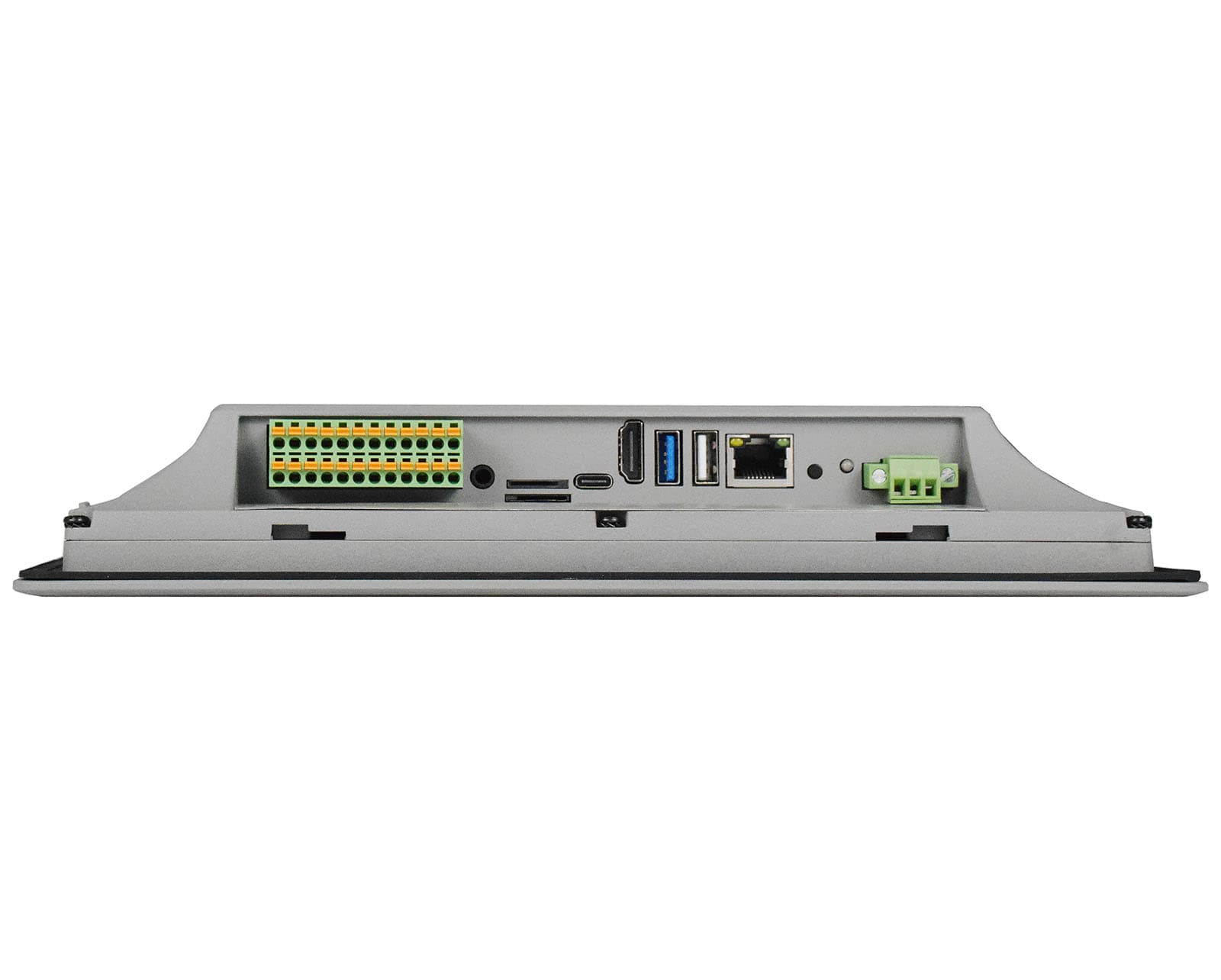

- USB
- 1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST
- CAN
- 2 x CAN FD by default; Optionally, these 2 x CAN FD can be configured to RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI OUT
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1 x RJ45, GbE
- Wi-Fi / Bluetooth
- YES
- 4G
- Optional
- PoE
- Optional
- Аудио
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Зумер
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Входно захранване
- 15-30V DC
- Консумация
- 7.5W
- Ток при 15 V
- 600mA Max
- Работна температура
- -20°C ~ 70°C.
- Операционна система
- Android; Buildroot; Debian; Ubuntu
- Начин на монтаж
- VESA, PANEL
