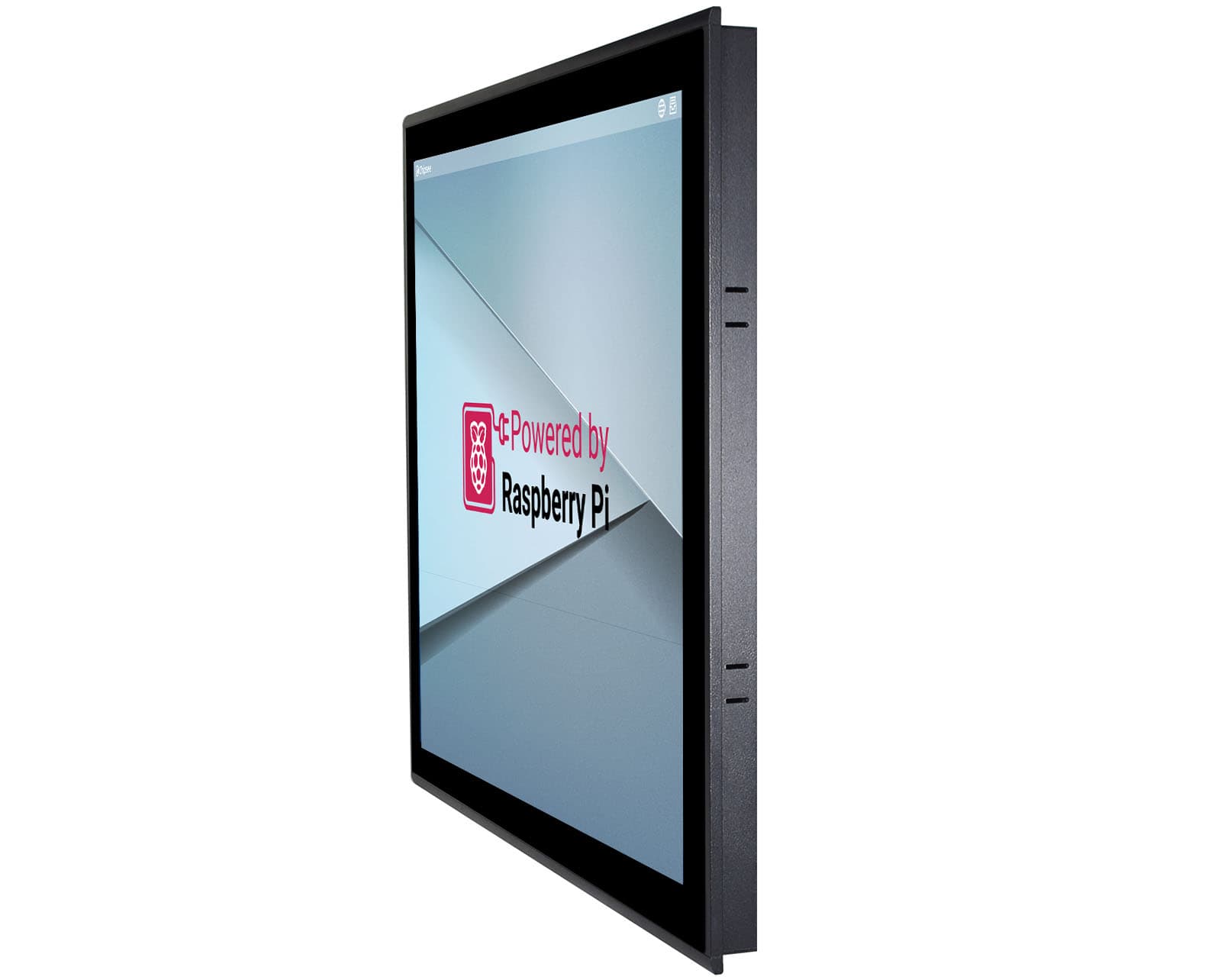

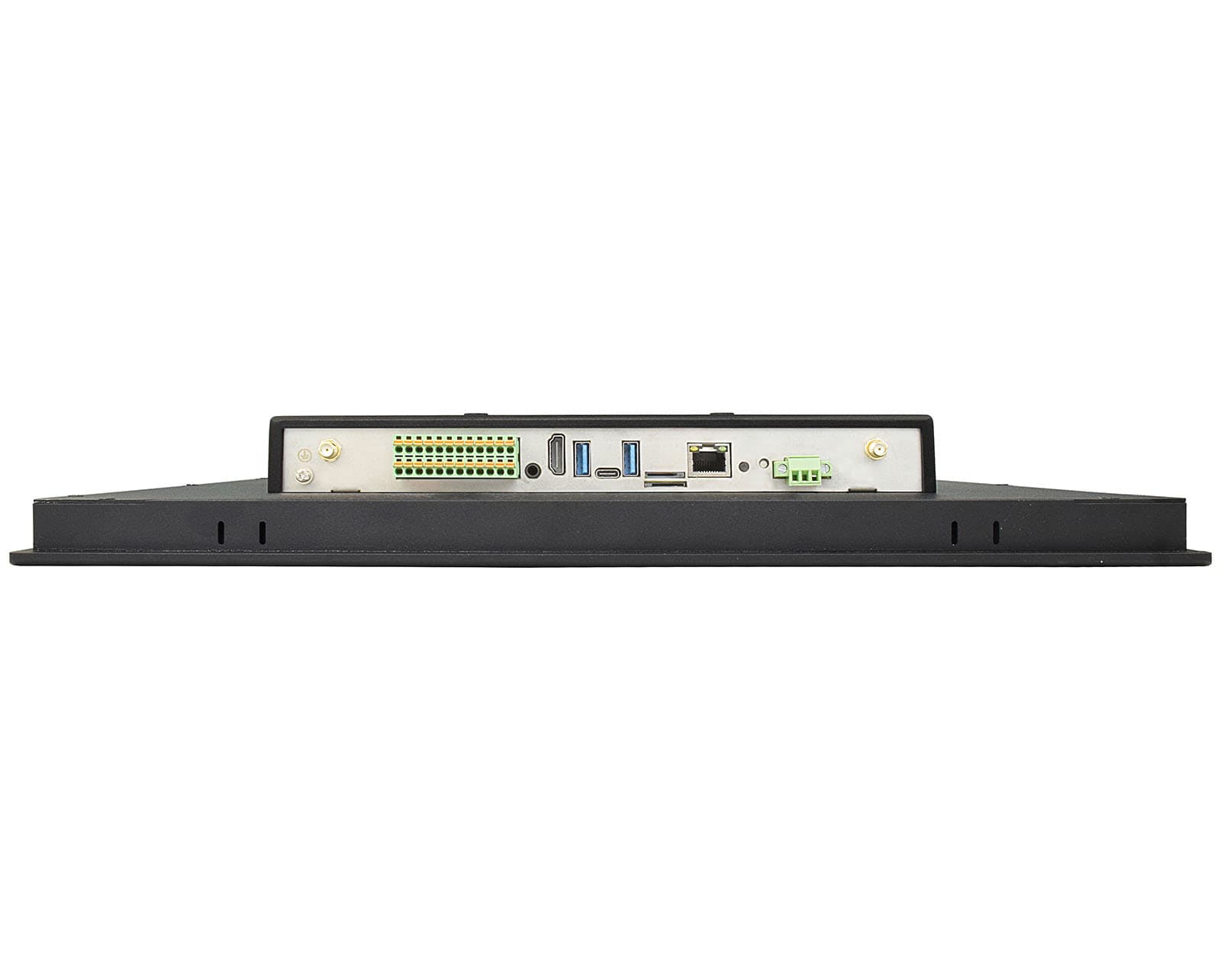

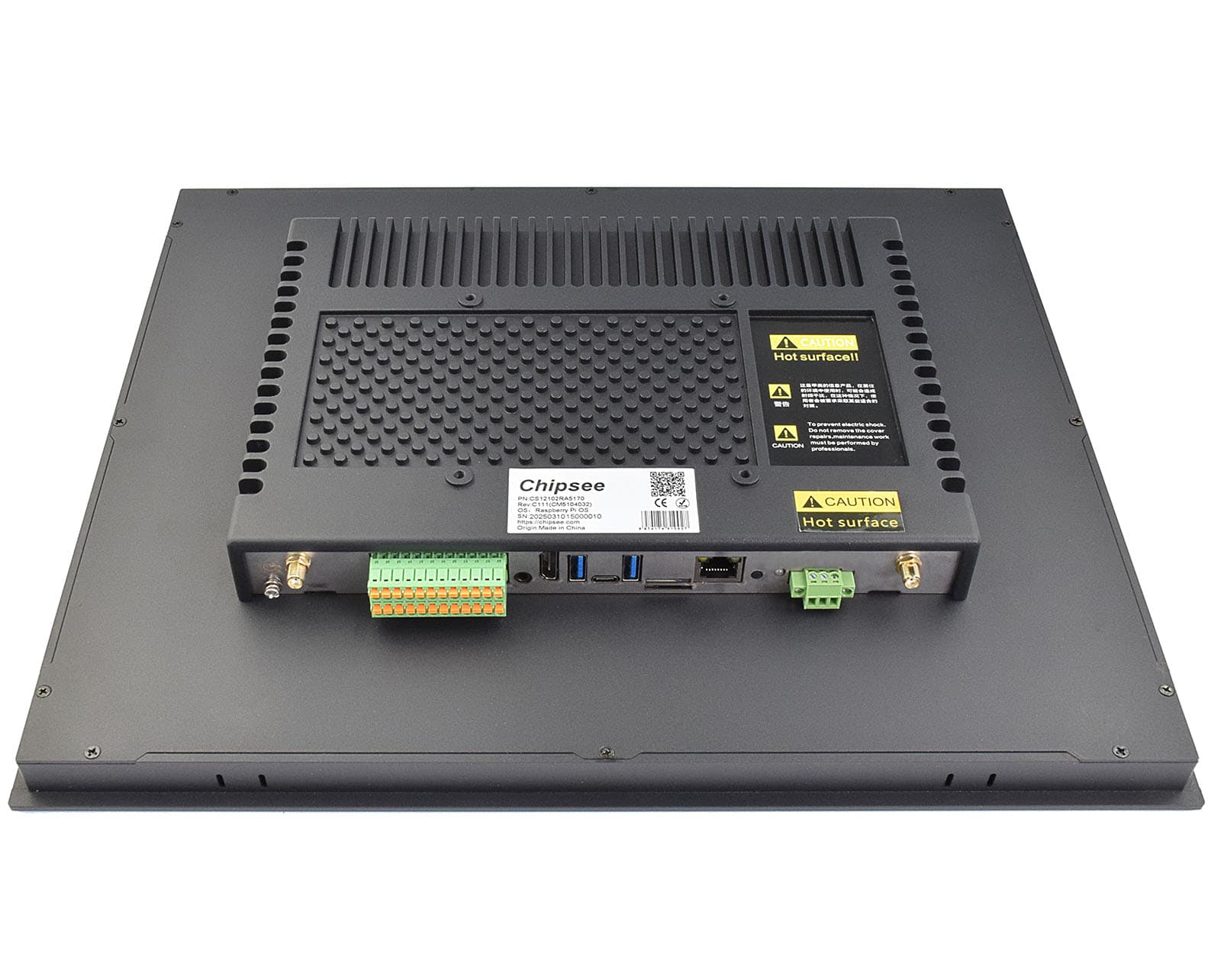

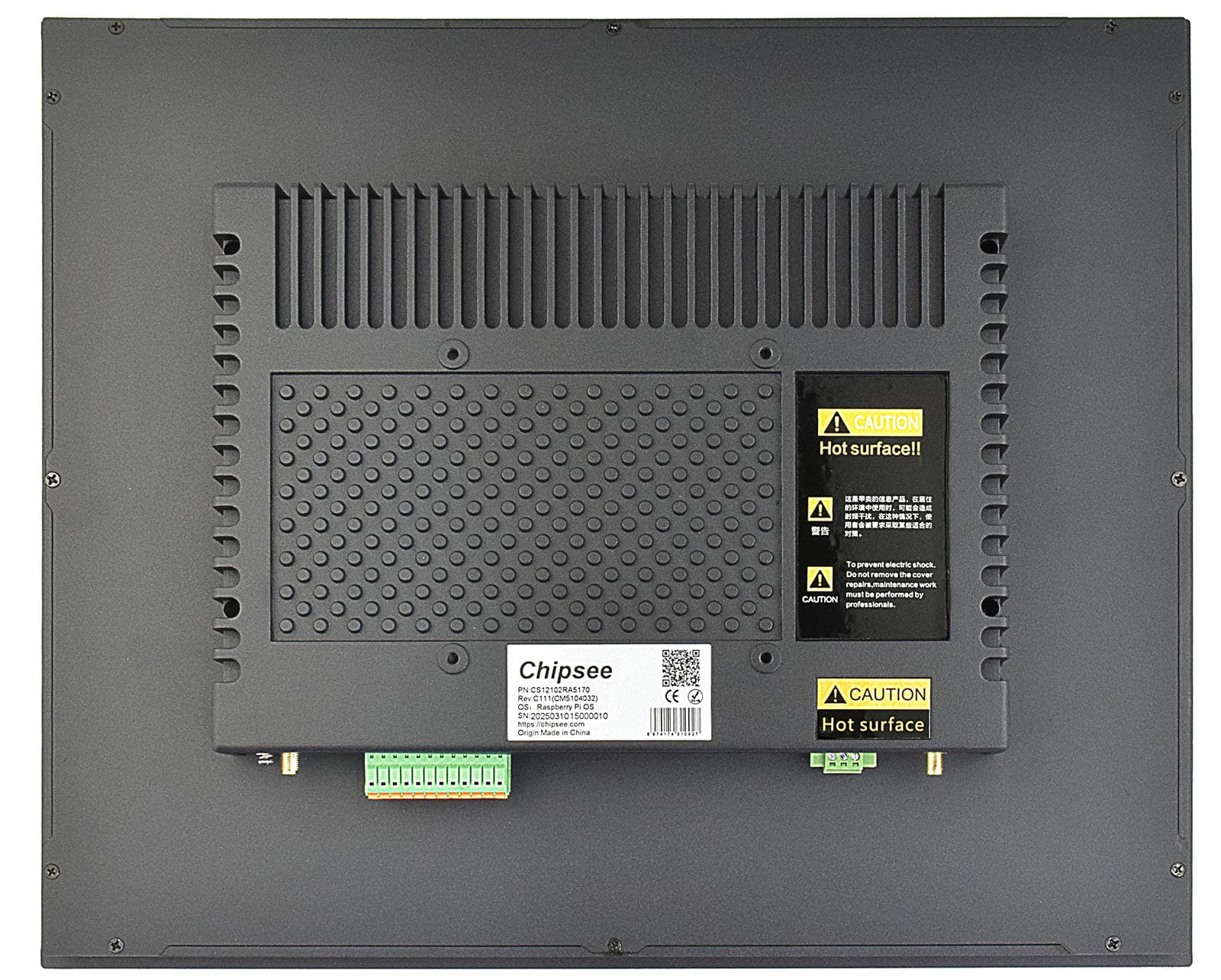

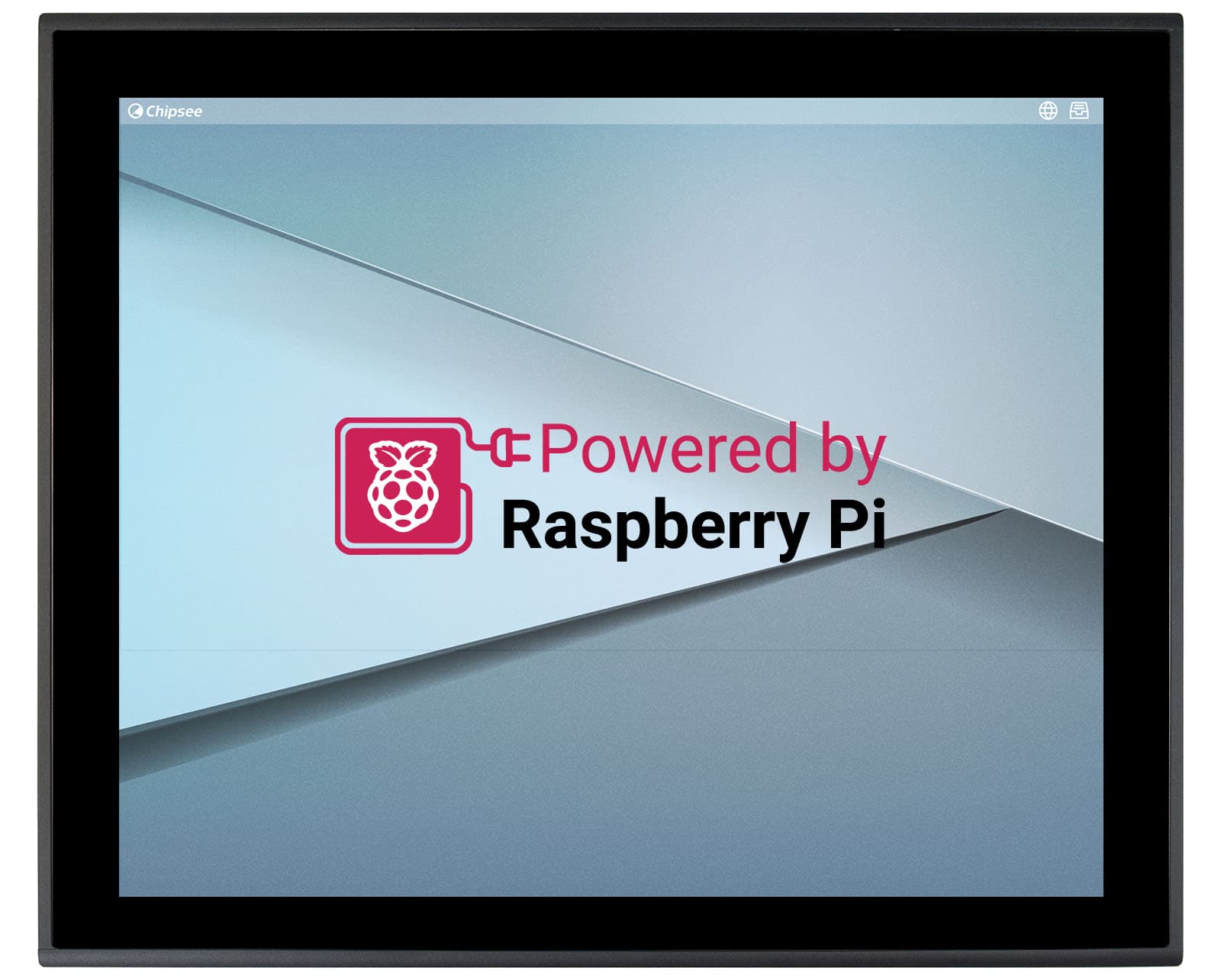

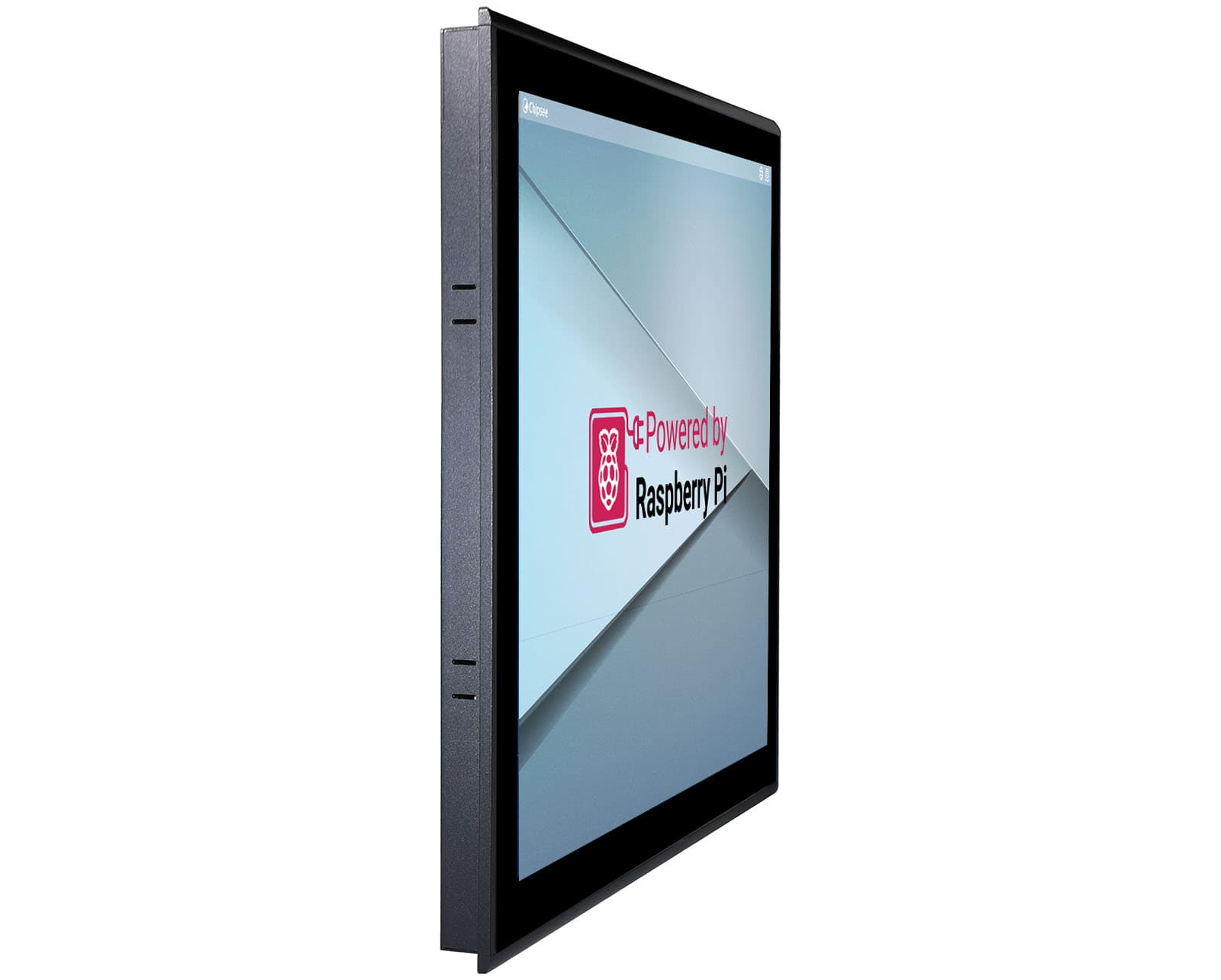

PPC-CM5-170

Спецификации

SKU

CS12102RA5170

Нетно тегло

4600 g

Процесор

ARM: Raspberry Pi CM5

Тактова честота на процесора

Quad(4) Core Cortex-A76 at 2.4GHz

Оперативна памет

Based on CM5

Вградена памет (eMMC)

Based on CM5

Постоянна памет

Supports 1 x TF Card

PCIe

PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242/2260/2280 socket (Optional)

Диагонал на екрана

17.0″

Разделителна способност

1280*1024

Яркост

340 NIT

Сензорен екран

Capacitive

USB

1 x USB Type-C OTG; 2 x USB 3.0 type-A Host

CAN

1 x CAN FD BUS, Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps

GPIO

8 Channels, 4 Input, 4 Output

HDMI

1 x HDMI 2.0 Out; can be driven up to 4K 60FPS

RS232

2 x RS232 by default, up to 4 x RS232

RS485

2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232

Ethernet

1 x Giga LAN

I2C

Not supported.

Wi-Fi / Bluetooth

Depends on CM5

4G

Optional

Аудио

3.5mm Audio Out Connector; Internal 2W Speaker

Зумер

Onboard, driven by GPIO

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

Входно захранване

(supports optional 24V ignition signal); 15-30V DC

Консумация

18.6W typical; 21W max

Ток при 15 V

1240mA typical; 1400mA max

Работна температура

0℃~50℃

Операционна система

Raspberry Pi OS

Модул Raspberry Pi CM5

CM5102016 ($113): WiFi+2GB DDR+16GB eMMC; CM5104032 ($156): WiFi+4GB DDR+32GB; CM5108032 ($233): WiFi+8GB DDR+32GB
